Junction between enclosures
Suppose we join several enclosures to create a
vertical array mounting type for ‘-RA’ versions.

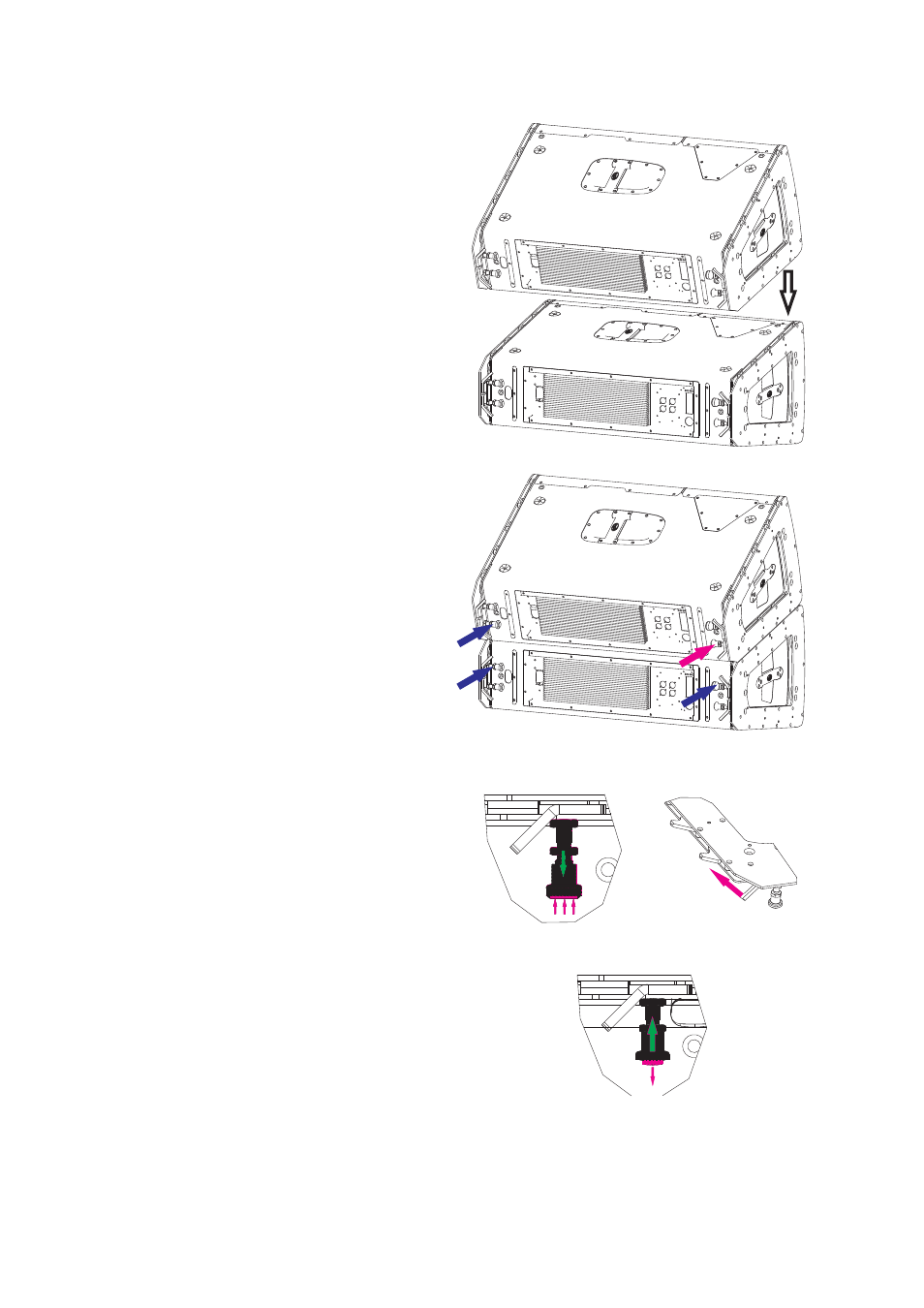

We will place the first two enclosures, as in
Figure1, one above the other on a flat surface.
The rigging system ends are aligned and
prevent them from moving while acting on the
locking pins.
To join the two enclosures with the rigging
system we will act on the rear pin (shown in red in
Figure 2) and also on the lever adjacent to it.
Push the red button and pull it down to free
the cog blade system.
This piece will slide out if we push the lever
near the pin and act simultaneously on the pin, as
we said before.
Repeat this process with the other pins
marked in blue in Figure 2 and the two enclosures
will join together safely.
To join one more enclosure, take the group of
two enclosures fixed before and follow the
instructions described (Figure 5 and Figure 6).
Due to the coverage angles, more than three
enclosures won´t be necessary.
Release the safety pin button and ensure that it
recovers its initial position to end the process (by
an internal spring as shown in Figure 4).
Refer to Figure 3.
On the previous page we described the
elements of this convert 15A version.
Pin
Handled
Figure 3
Figure 4
Figure 1
Figure 2
