11 Manual de Colgado / convert 15A series / Rigging Manual
For mounting sets of one or two enclosures
the use of a UFB is not required leaving the set as
shown in the figures on the right.
For more than two enclosures we will add one
or two UFB for the lift motors.

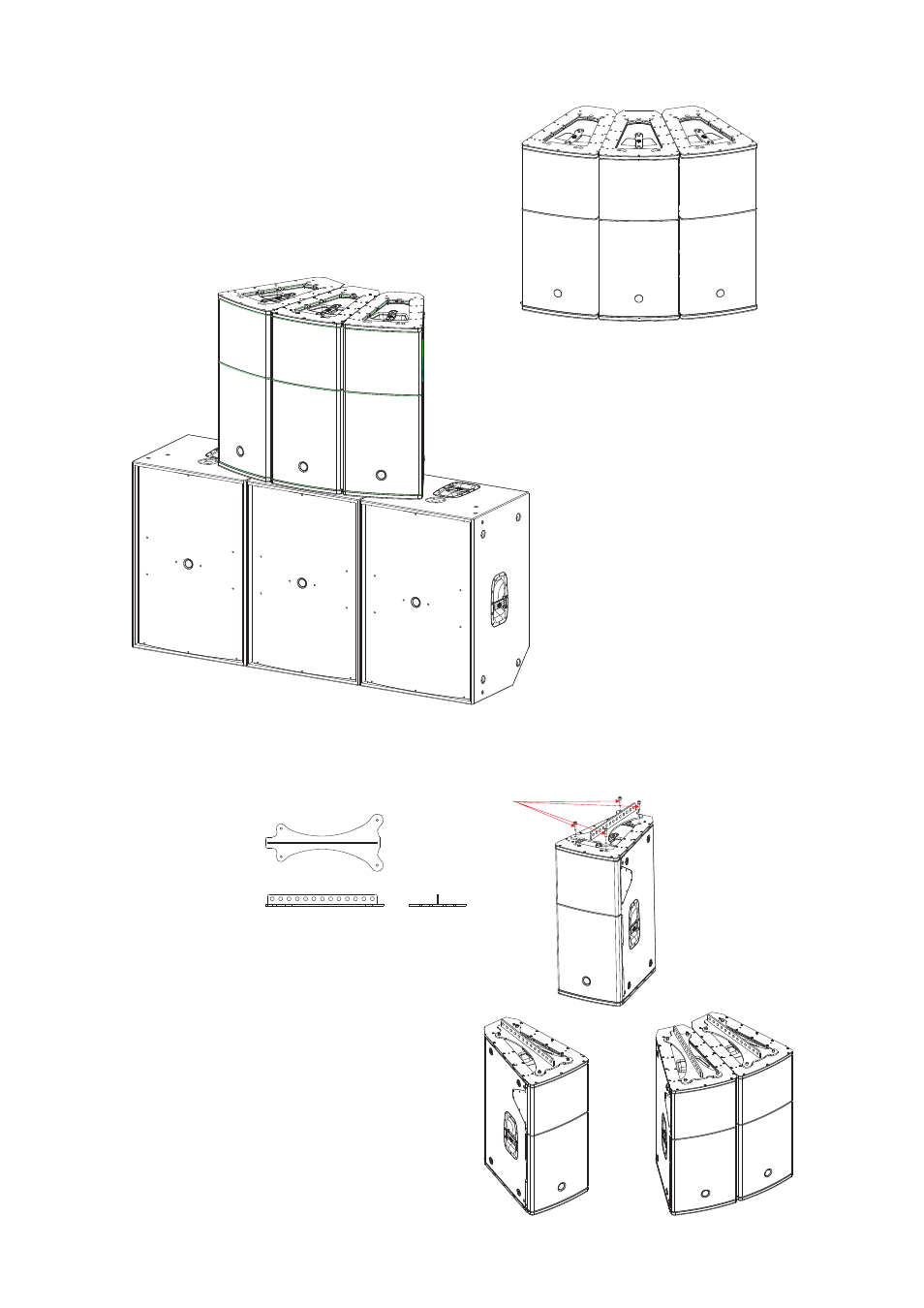

In the Figure 12 we can see the mounting of
three enclosures.
We should add more enclosures in the same
way to the desired units.
Also, we can choose to mount systems onto
SUBs as shown in Figure 13.
If we choose a rigging mounting type, after joining the enclosures place the AXA-CV15H and the UFB (one
or two depending on the lift motors).
Figure 12
Figure 13
AXA-CV15H
M10x70 screws (included with accessory)
