14

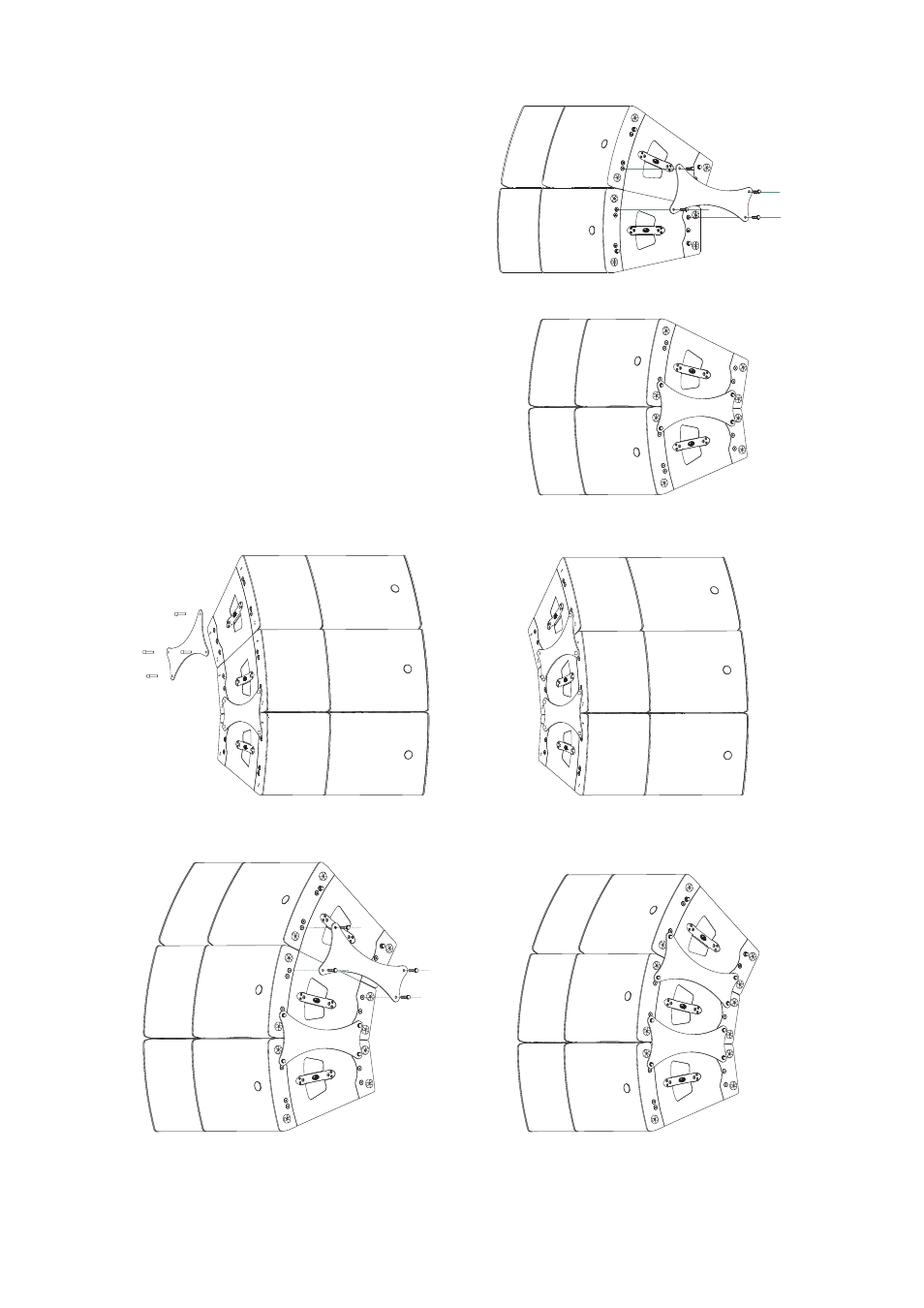

Repeat the process on the other side of the
enclosures (Figure 17 and Figure 18).
If we don´t mount the third enclosure we will
mount the AX-CONVERT15B and, in this case, we
will follow the instructions shown in Figures 19 to
22.
Given the coverage angles, more than three
enclosures won´t be needed.
Manual de Colgado / convert 15A series / Rigging Manual
Figure 21 Figure 22
Figure 20 Figure 19
Figure 18
Figure 17
