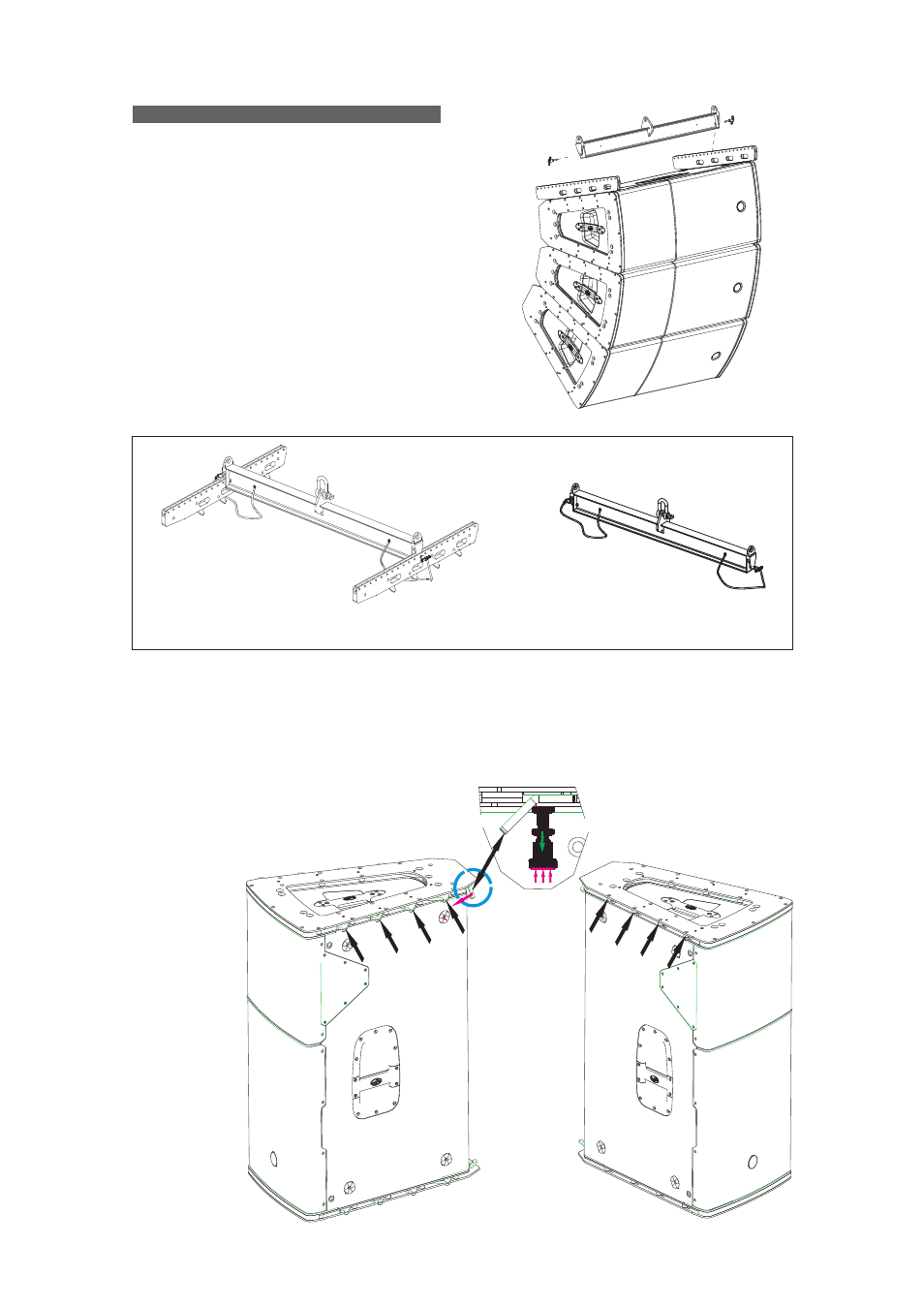

VERTICAL ARRAY (‘-RA’ versions)
For this mounting type convert1560RA or
convert1590RA are required. This is the simplest
way because only
AX-CONVERT15 rigging
accessory is required for just one lift motor. In case
of using two lift motors,
AX-CONVERT15 and PICK-
UP AX-CONVERT15 will be needed.
Be conscious that rigging must be performed
by highly skilled workers, with an adequate
knowledge of the equipment and fittings to use.
Workers must also know the local safety
regulations. User is responsible to ensure that
sound
rigging systems (including rigging
accessories) meet state and local regulations in
force.
Firstly, lets see how a rigging system, which is
built into the enclosure, works.
At the rear you will find a safety pin which is
not removable.
If we push the red button and pull it down, a
cog blade system is exposed. This piece will slide
out if we push a handle near the pin (see figure).
PICK UP AX-CONVERT15
Mounting type
Accessories required for this mounting type
(WLL =300 kg)
AX-CONVERT15
Cog
Bla
de
Sys
tem
Cap
s fo
r the
adja
cen
t en
clos
ure
to a
cco
mm
oda
te th
e sy
stem
Pin
Handled
