D.A.S. Audio Convert 15A series Rigging User Manual
Page 15
15
Manual de Colgado
/ convert
15A
series / Rigging Manual

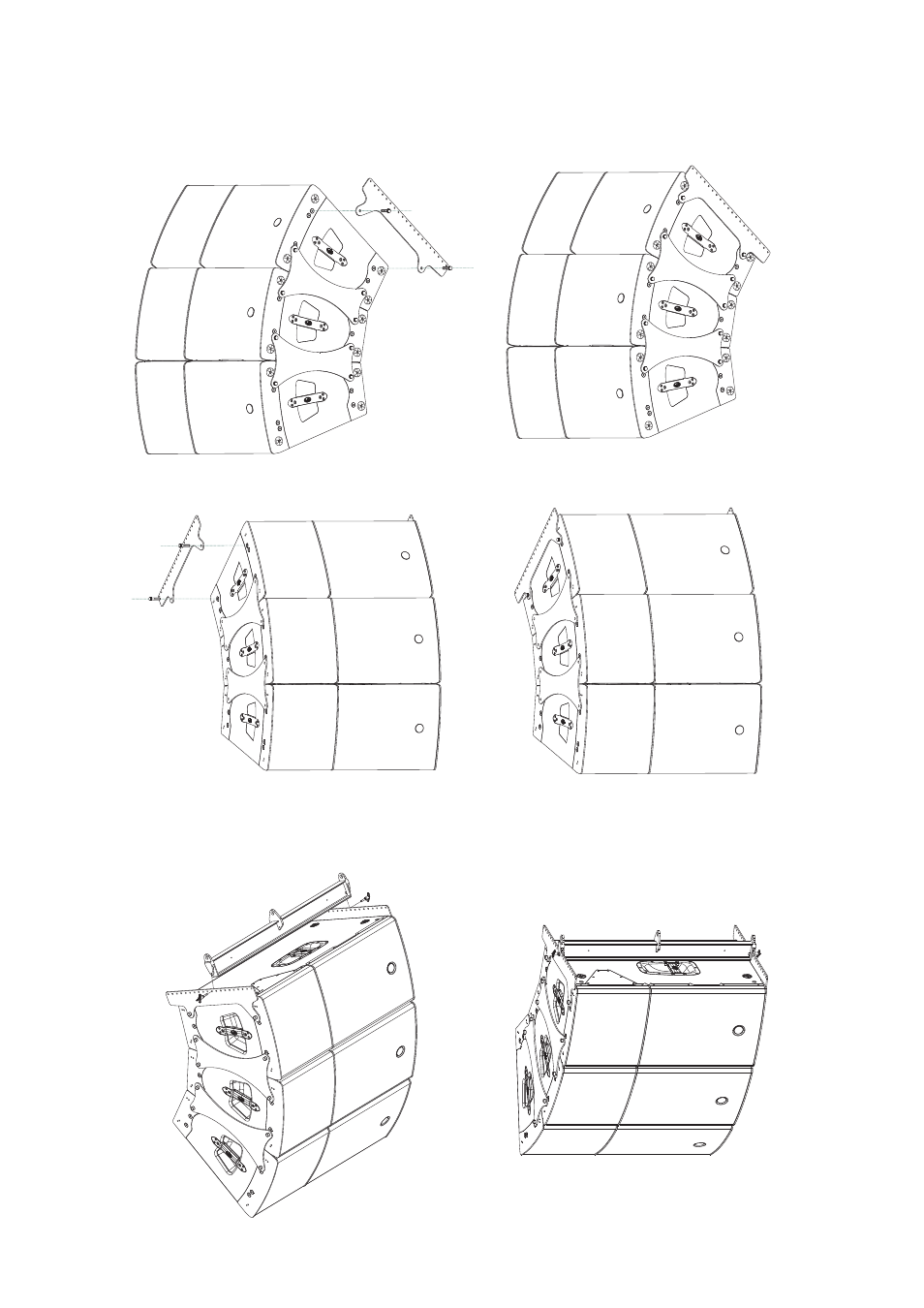

Now, mount the side parts of the
AX-CONVERT15B like the next figures show.
After that, if we are going to rig the system with one lift motor, we will mount the AX-CONVERT15B
crowbar like the next figures show.
Figure 25
Figure 27
Figure 28
Figure 26
Figure 24
Figure 23
