COMP Cams 5456 GM Cam Phaser Limiter Kit User Manual
Page 7
COMP Cams
®
3406 Democrat Rd.
Memphis, TN 38118
Phone: (901) 795-2400 Fax: (901) 366-1807
www.compcams.com
Part #COMP4-122
Revised 6/19/2014

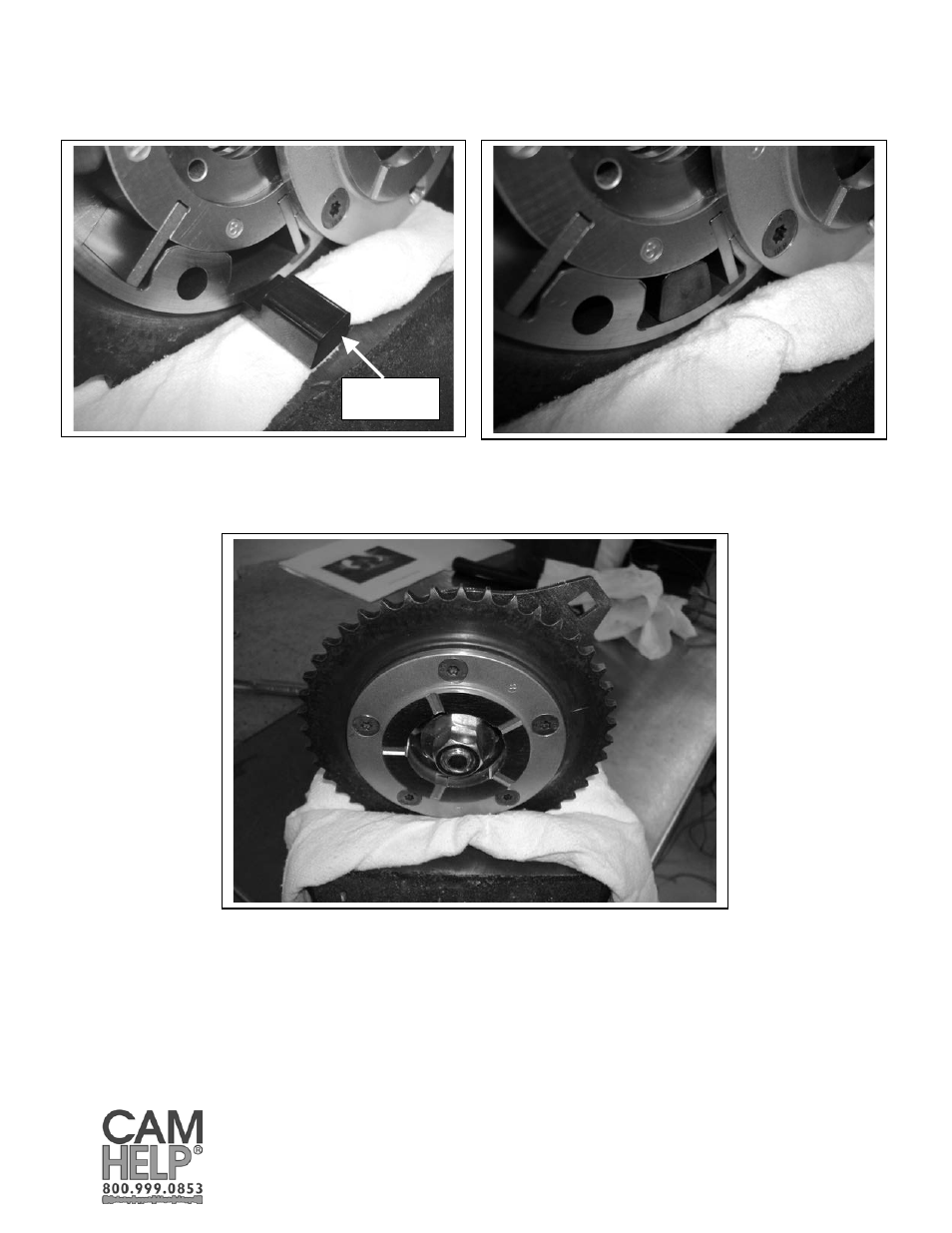

Step 7: Insert the cam phaser limiter block into one of the cam phaser control chambers; the slotted end goes in first.
Step 8: Rotate the cover plate back over the control chambers and reinstall the safety bolt. Reinstall the cam phaser bolts,
making sure to install the pin-bolt back into the correct position. Remember to torque the bolts to 85 in. lbs.
Step 9: Remove the cam phaser spring compression tool and the safety bolt assembly. The modified cam phaser is now
ready for installation.
Cam phaser
limiter block
