1
COMP Cams®
3406 Democrat Rd.
Memphis, TN 38118
Phone: 901.795.2400
Part #COMP4-152
Revised 7/22/11
Toll Free: 1.800.999.0853
www.compcams.com

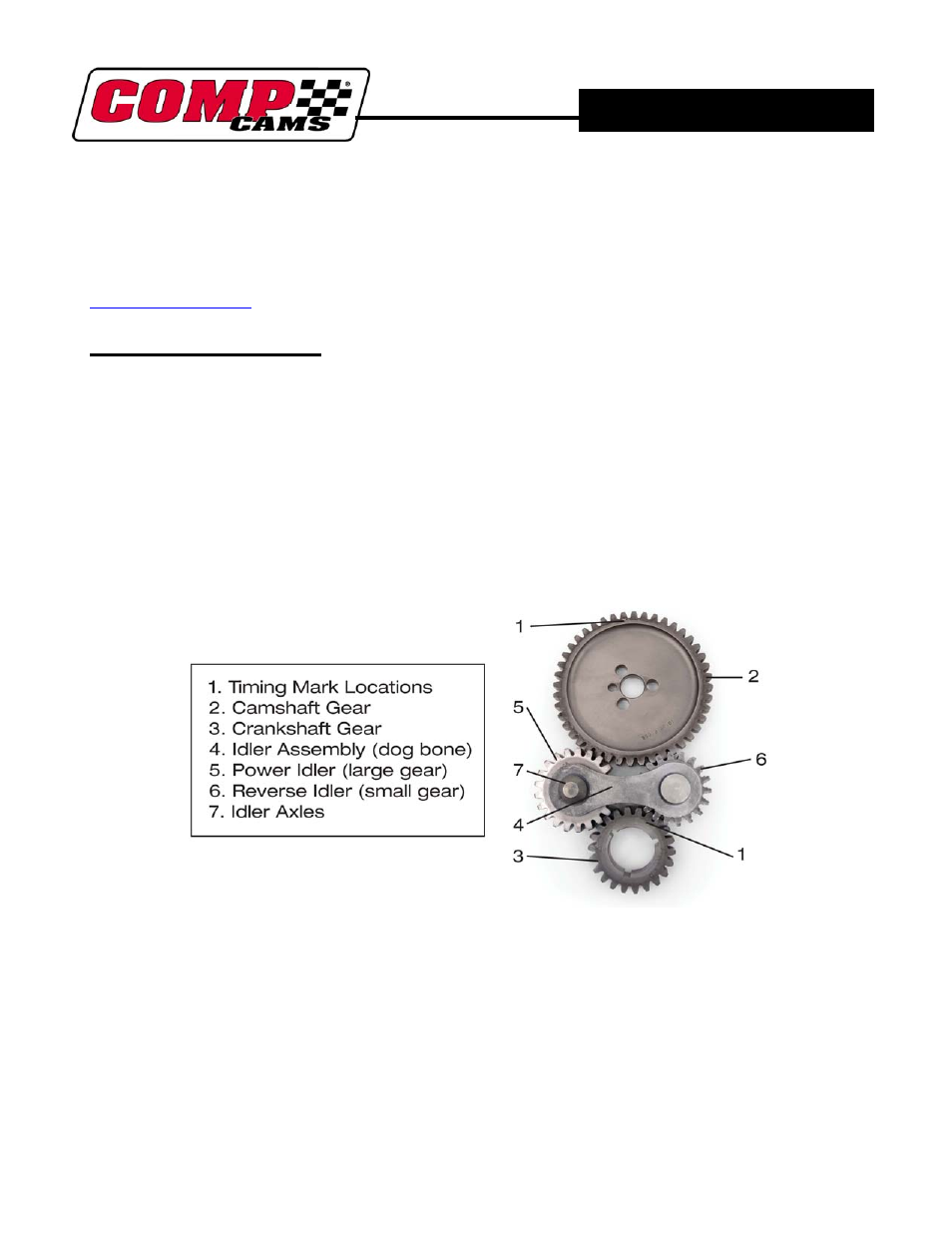

Gear Drive System Part #4136
Thank you for choosing COMP Cams® products; we are proud to be your manufacturer of choice.
Please read this instruction sheet carefully before beginning installation, and also take a moment to
review the included limited warranty information. Contact us toll free at 1.800.999.0853 or at
www.compcams.com under Tech Support with any questions
Installation Instructions:
1. Remove stock timing cover. Rotate engine to top dead center of cylinder #1 so that the timing
marks on the original crank and cam sprockets are directly lined up with each other. For
example, the mark on the crank sprocket will be at 12 o’clock (straight up), and the mark on
the cam sprocket will be at 6 o’clock (straight down).
2. Remove sprockets and chain.
3. Pre-lube and install bronze thrust bearing (not pictured but ships with gear drive) on the block
side of the cam gear.
4. Install cam and crank gears.
5. Torque cam bolts with washers to the factory spec of 21 ft./lbs.
INSTRUCTIONS
