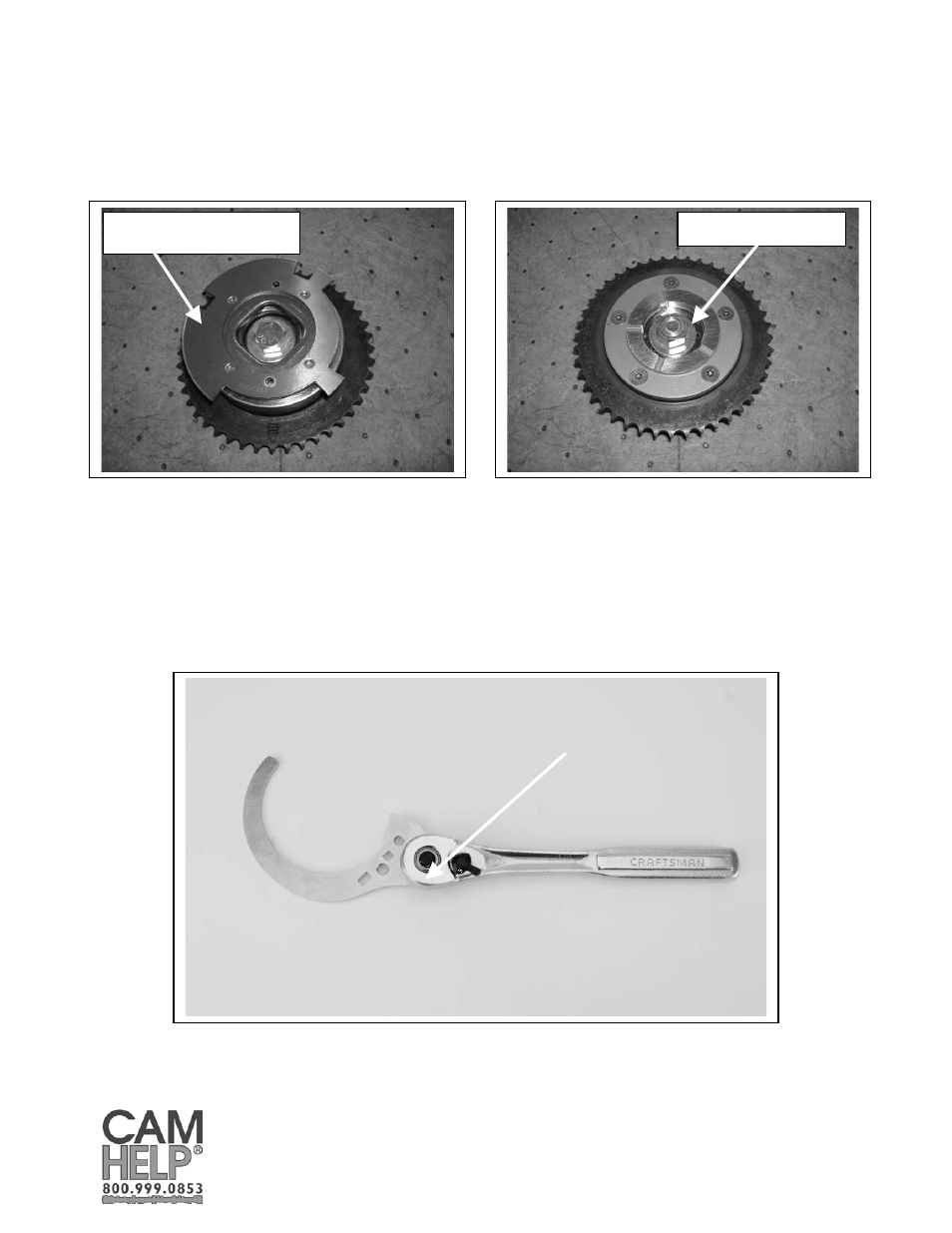

Step 1: The first step once the cam phaser has been removed from the engine is to temporarily install the safety bolt,
washers, and nut. This safety bolt assembly is provided to ensure the trigger wheel cannot come off during normal
handling. Remove the safety bolt just prior to installing the cam phaser back onto the camshaft.
Step 2: Special tools are required to properly disassemble the cam phaser. We designed and provided these tools as part of
the kit. The Cam Phaser Spring Compression Tool is designed to snap onto a standard 3/8” ratchet.
Cam Phaser Spring Compression
Tool installed on 3/8 in. ratchet
Cam Phaser Trigger Wheel
Safety Bolt Assembly
