COMP Cams 5456 GM Cam Phaser Limiter Kit User Manual
Page 6
COMP Cams
®
3406 Democrat Rd.
Memphis, TN 38118
Phone: (901) 795-2400 Fax: (901) 366-1807
www.compcams.com
Part #COMP4-122
Revised 6/19/2014

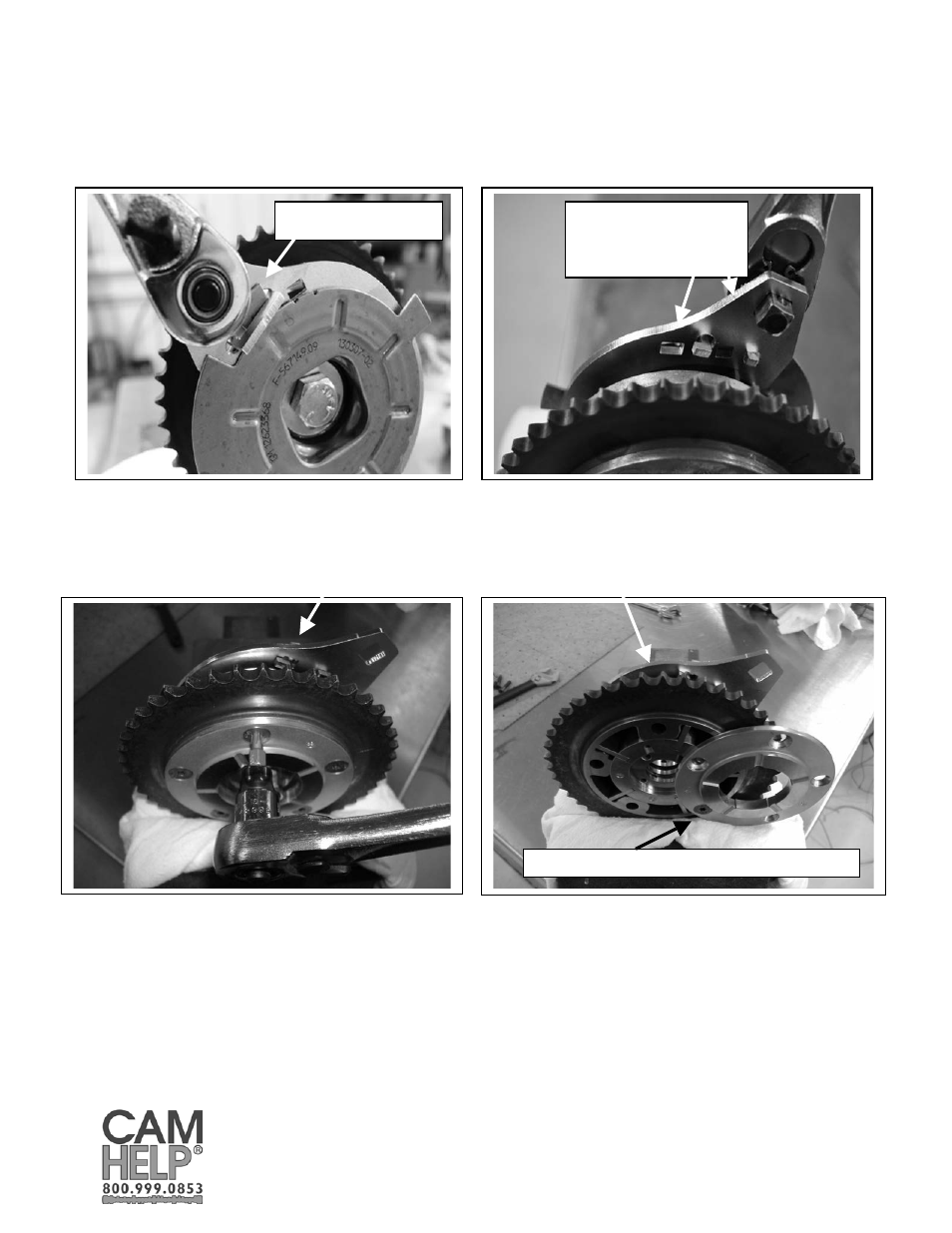

Step 5: Take the spring compression tool and hook it on the spring’s L-bend where it contacts the pin-bolt; making sure
the compression tool is centered on the phaser spring. Compress the spring by rotating the tool until the locking slots are
visible, then insert the spring lock tool. Use the round holes for 2014 LT1 Applications.
Step 6: Using the included TORX Plus bit, locate the pivot bolt and loosen it ½ turn. It is the first bolt located clockwise
from the pin-bolt. Remember, DO NOT remove this bolt, just loosen it ½ turn. Remove the other four bolts and
temporarily remove the safety bolt. Rotate the cover away to expose the phaser control chambers.
Rotate the compression tool.
Spring lock tool installed
Cam phaser pivot bolt is NOT removed, just loosened ½ turn
Compression tool locking slots.
Make sure spring lock tool
“hooks” are locked into the
spring compression tool
