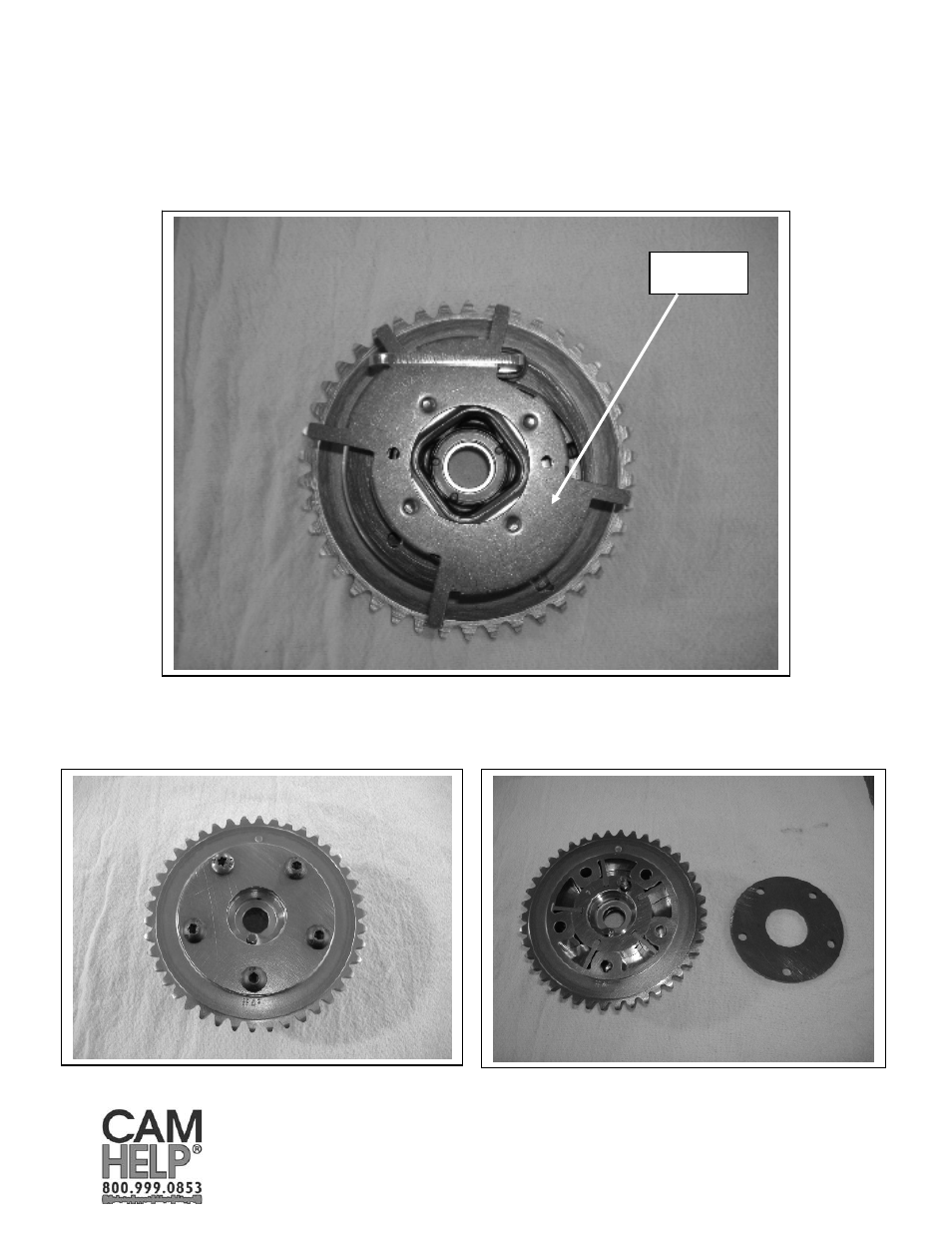

Step 6: Once the cams have been removed from the engine, remove the cam phasers and place them on a clean workbench.
A word of caution, be very careful of the reluctor wheel. The only thing that holds it onto the cam gear at this point
is a press-fit on the three rivets at the center of the hub. The reluctor wheel can be very easily bent or damaged if the
cam phaser is handled roughly or dropped.
Step 7: Turn over the cam phaser and remove the five bolts holding the back cover on.
Cam phaser
reluctor wheel
