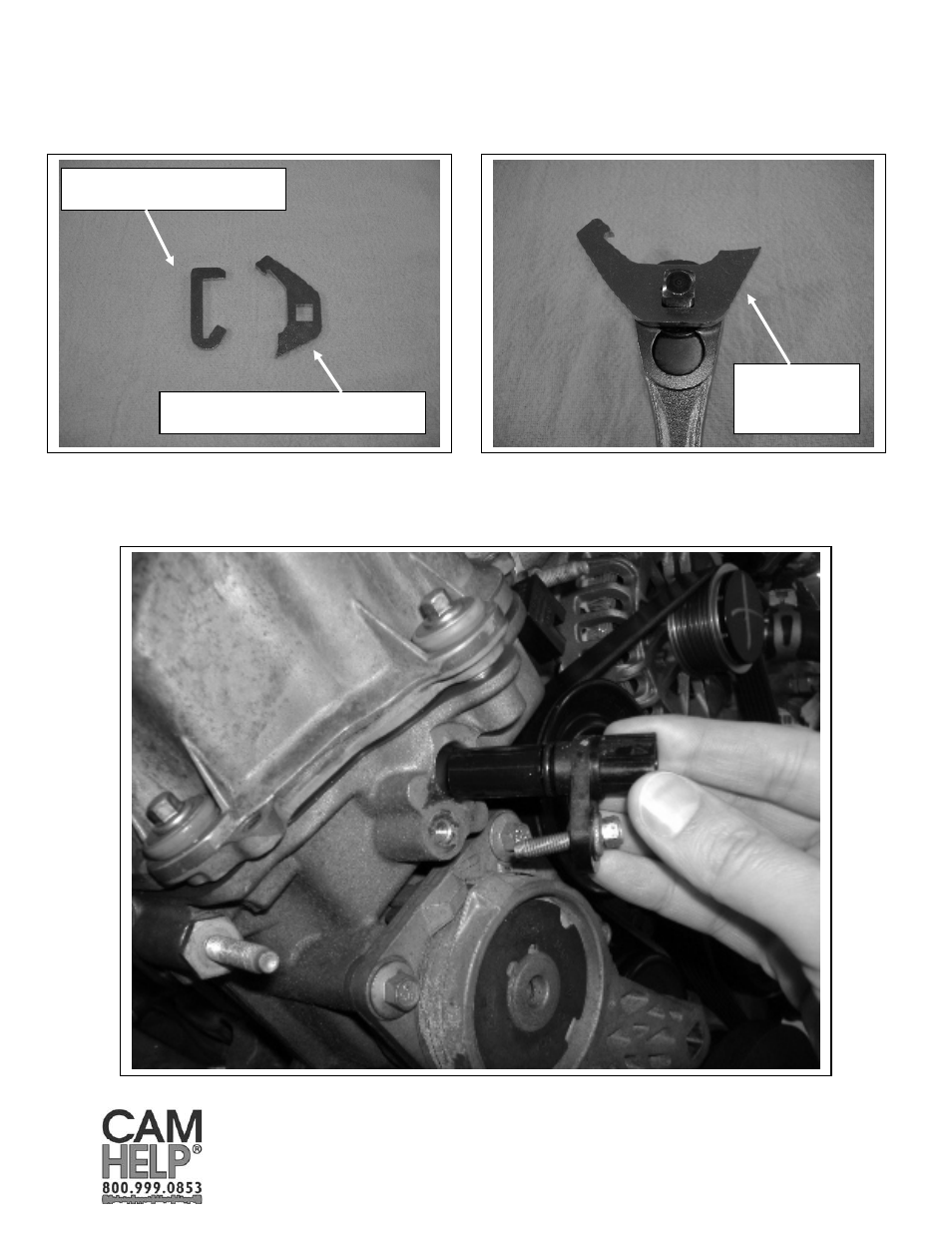

Step 2: Special tools are required to properly disassemble the cam phasers. We designed and provided these tools as part of
the kit. The Cam Phaser Spring Compression Tool is designed to snap onto a standard 3/8” ratchet.
Step 3: Before you begin to remove the valve train from the engine, remove the cam position sensor. If the sensor is not
removed, the Cam Phaser Spring Lock Tool will hit it when the engine is turned over. Reinstall the cam position sensor
before starting the engine!
Cam Phaser Spring Lock Tool
Cam Phaser Spring Compression Tool
Cam Phaser Spring
Compression Tool
installed on a 3/8 in.
ratchet
