Clippasafe 118/1 Extendable, Dual Fix Push to Lock Gate User Manual
Page 6

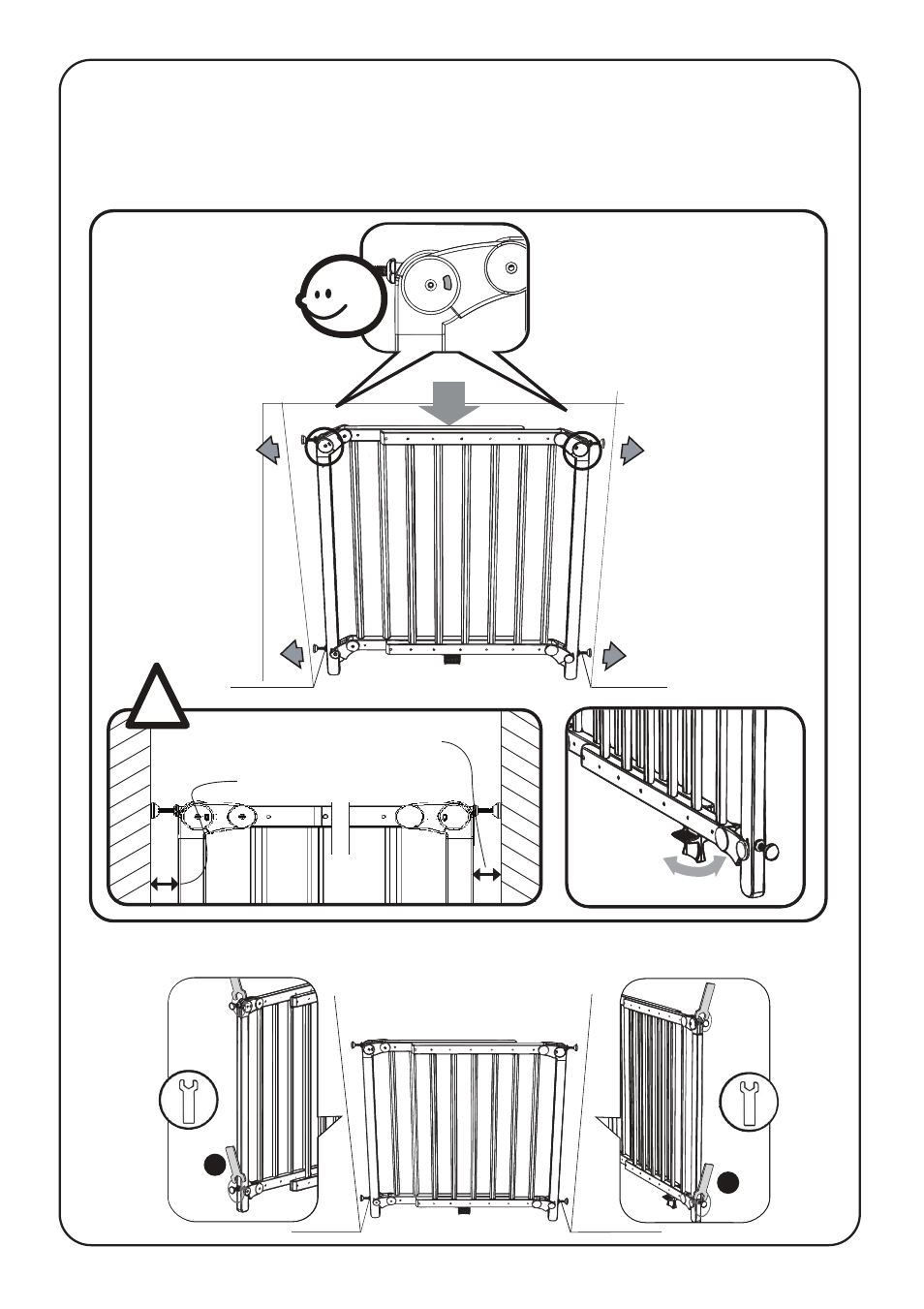

Apply downward pressure to the gate from the middle of the top bar. Ensure that when closed,
the distance between the gate and the wall on both sides is not less than 21mm and not
greater than 63mm.
IMPORTANT ! Make sure that when the gate is closed, the pressure indicators on the top of
the gate are displaying a green window and the pedal underneath the gate can move freely.
If the pedal cannot move freely, turn the spindles on one side another full turn counter-clockwise.
8. Tighten the nuts ‘E’ with the spanner ‘H’.
H
H
max 63 mm
min 21 mm
max 63 mm
min 21 mm
!
