Clippasafe 118/1 Extendable, Dual Fix Push to Lock Gate - Manual (Page 4)

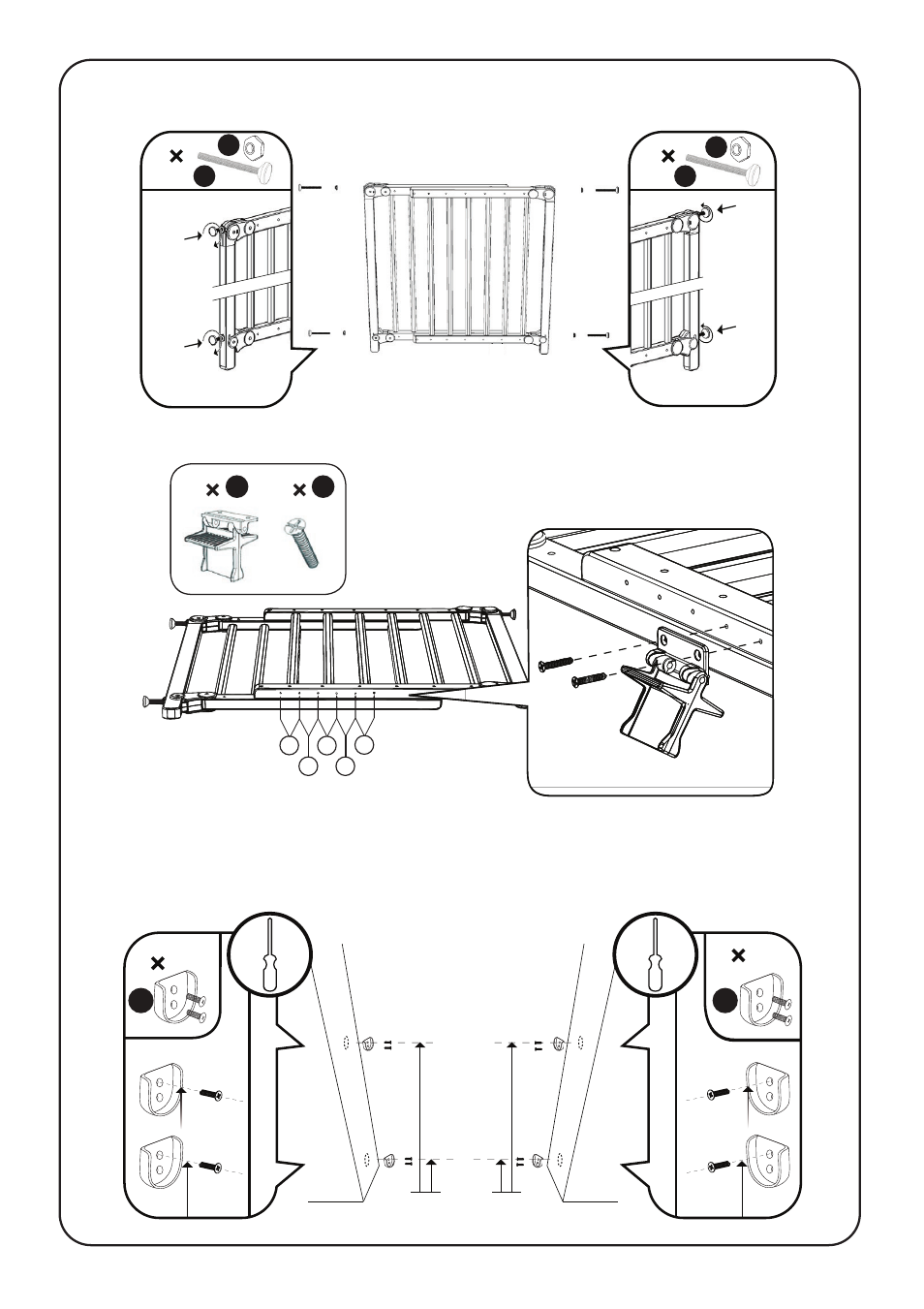

4. Attach the pedal ‘F’ to the centre of the gate using the two screws ‘G’ provided. Use the
correct holes, depending on the width of the opening,
as in Step 1.
2 2
E
D D
E
4
89mm
756mm
2
2
C C
3. Insert the 4 spindles ‘D’ and nuts ‘E’ into the holes provided on the four corners of the gate.
Make sure that the spindles are inserted the same distance into the gate on each side.
5. The surfaces which the gate rests on should be completely flat and should be a minimum
of 5cm wide. Mark the positions for the wall cups ‘C’ on one wall surface. The top hole for the
lower wall cup should be 89mm from the floor. The top hole for the upper wall cup should be
756mm from the floor.
1 2 F G
X5
X4
X3
X2
X1
