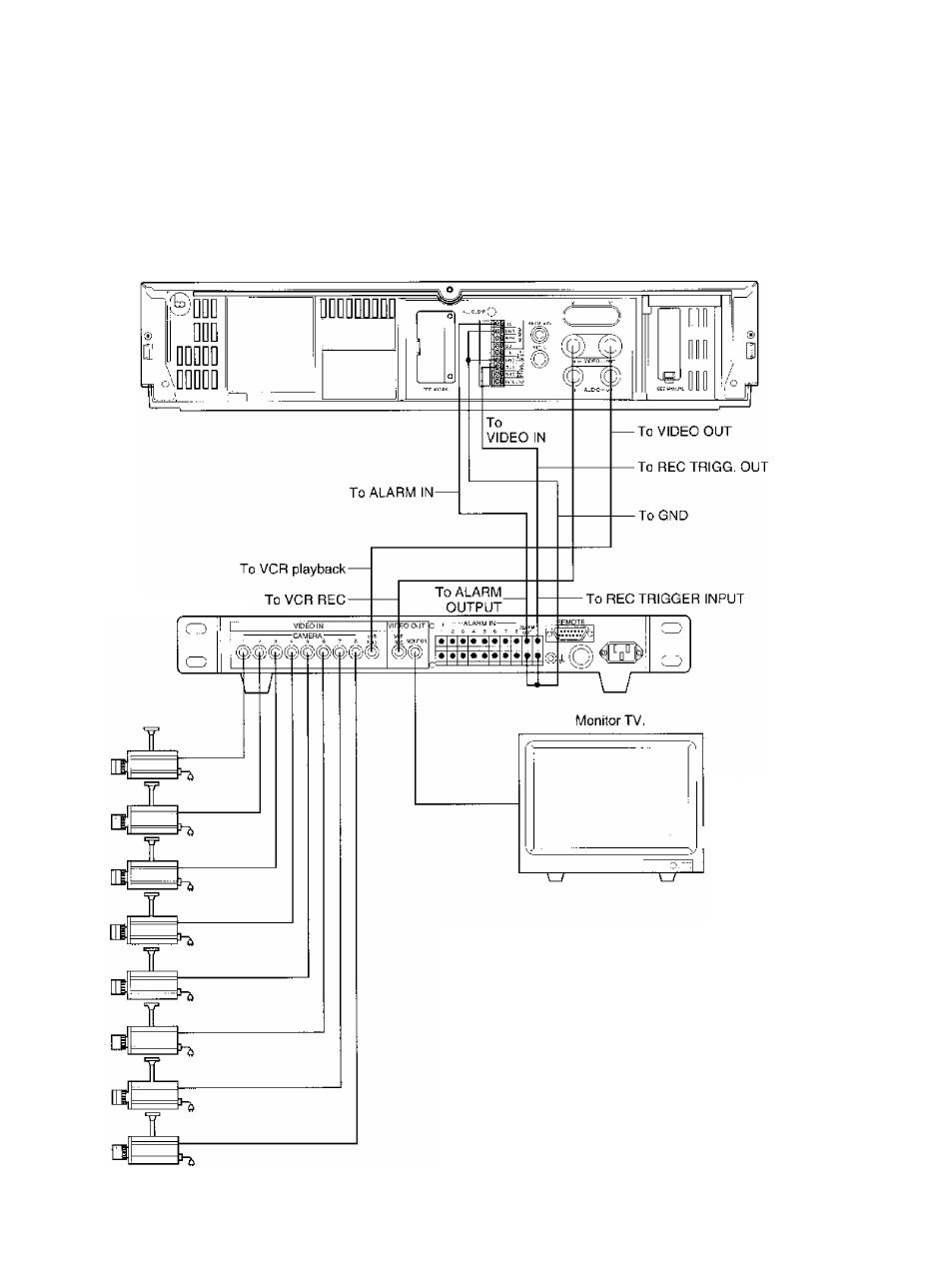

Typical Connection with the Sequential Switcher

When connected with a sequential switcher, set the alarm recording mode to MANUAL by menu screen.

For further details, consult the instruction manuals of the connected devices.

Frame Sequential Switcher

AC120V
To AC outlet

When using the VCR connected to a frame sequential switcher, pay

attention to the following matters.

■ When playing back in the A12, A18 or A24-hour mode, mixing ot

pictures from other channels may occur If this occurs, play back in a

mode other than the A12, A18 or A24-hour mode.

■

If the following phenomena occur during playback in a time mode of

24 hours or longer, adjust by using the TRACKING button.

1. Mixing of signals from another channel.

Go to slow playback and press the TRACKING button to adjust

until the picture appears from the channel you want to view.

2. Picture waves up and down.

Press the TRACKING button during still picture playback and

adjust the picture until the picture stops waving up and down.
