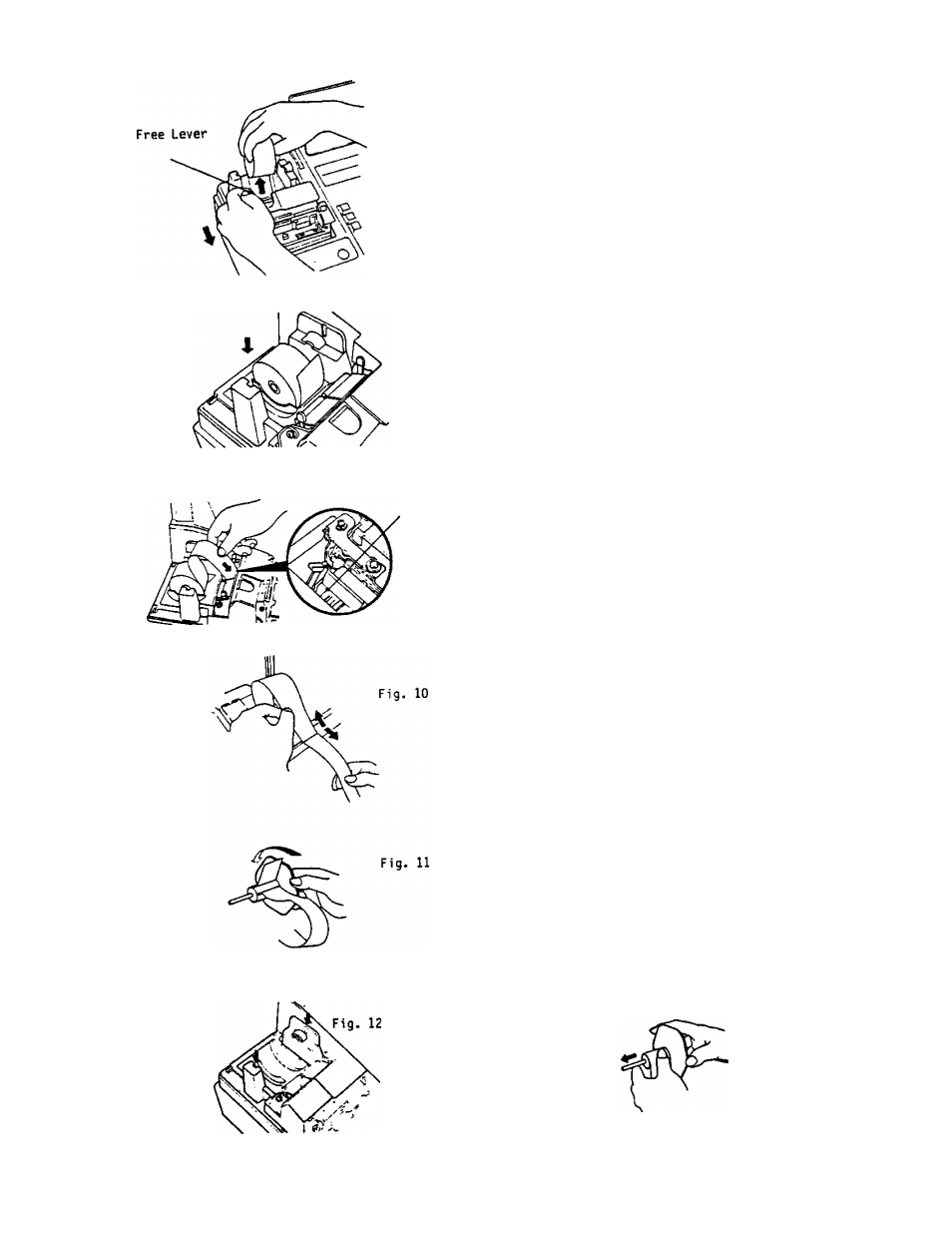

Fig. 7

Fig. 8

Journal

Inlet

Fig. 9

REMOVING THE RECEIPT PAPER

1. Remove the Paper Cover.

2. Press the Free Lever down and pull

the old paper core upward to remove

the remaining paper end. (Fig.7)

INSTALLING THE JOURNAL PAPER

1. Turn the Mode Lock to the "REG"

position.

2. Remove the Paper Cover by pulling it

upward,

and

remove

the

JournaI

Winding Reel. (Fig.l)

3. Follow Steps 3 and 4 of INSTALLING

THE RECEIPT PAPER on the previous

page.

4. Place the paper roll

in the

inner-side roll holder of the two

holders. (Fig.8)

5. Insert the paper end into the Journal

Inlet,

feed

the

paper

while

pressing down the [JF] key. (Fig.9)

6. When the paper comes out for a enough

length,

open

the

folded

end.

(Fig.10)

7. Wind the paper end on the Journal

Winding Reel two or three times as

shown in Fig.11.

8. Set the Journal Winding Reel to the

Reel Holder. (Fig.12)

9. Attach the paper cover.

REMOVING THE JOURNAL PAPER

1. Remove the Paper Cover.

2. Press the [JF] key to wind up enough

portion of the journal paper, and

then tear off the paper, holding the

Journal Winding Reel.

3. The wound-up portion of the paper can

easily be removed from the Reel by

pulling it side way. (Fig.13)

4. If enough paper remains on the roll,

follow Steps 6 through 9 above; if

paper is running out, follow Steps 1

through 9 above.

Fig. 13
