■ SURROUND SPEAKER terminals
Connect speakers having' an impedance of between 8
ohms and 1 6 ohms, and place them to the left and right
behind the listening position.

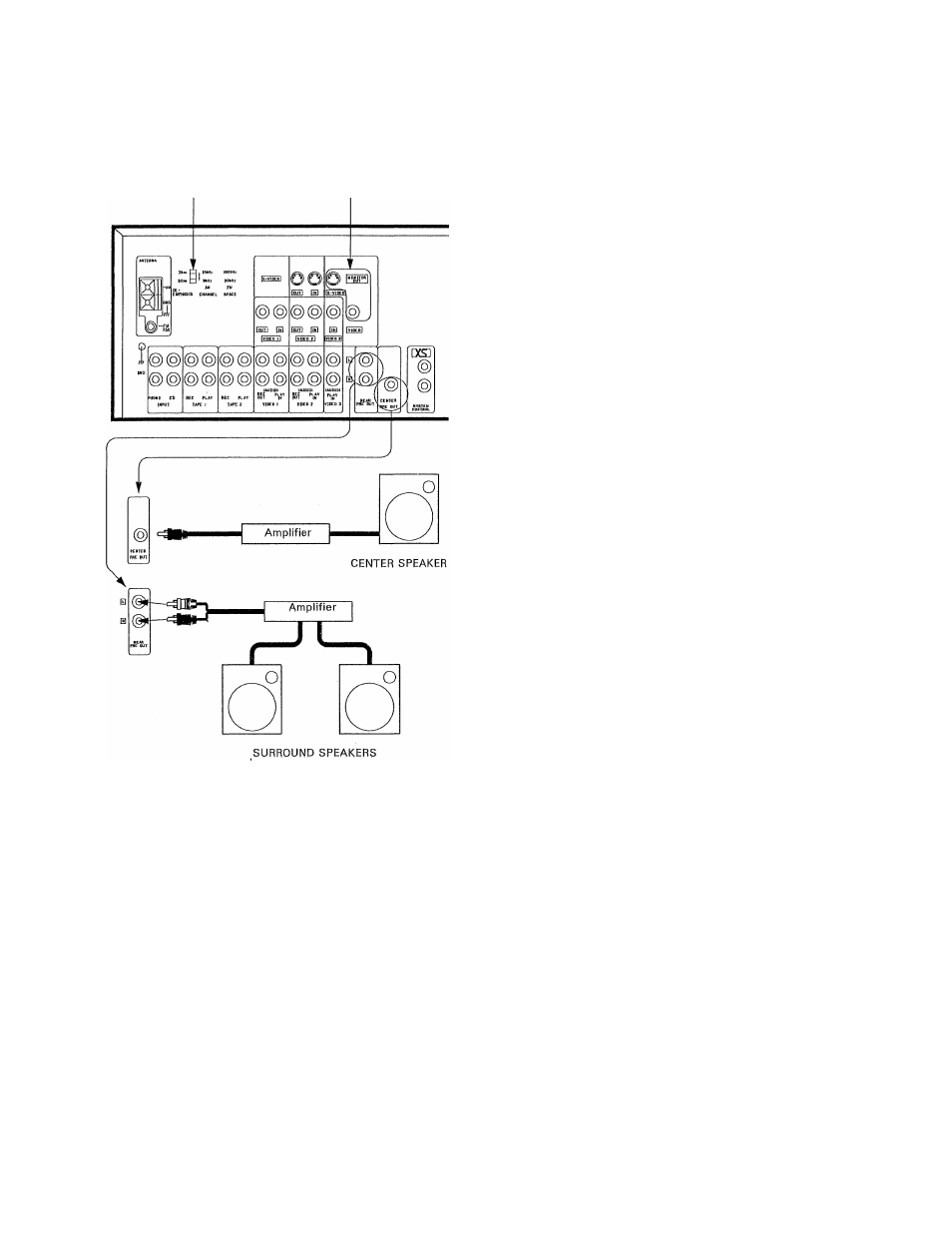

■ Connection of the REAR PRE OUT jacks
The Surround sound can be enjoyed sufficiently with the
built-in amplifier. However when more power is required
for Surround sound, use these jacks for an amplifier to
drive the Surround Speakers.
Connect these jacks to the AUX jacks, etc. of the amplifier
for Surround Speakers, using the audio connection cord.
■ Connection of CENTER PRE OUT jack
Use this jack when the Dolby Pro-Logic Surround function
is used. Connect to an AUX jack, etc. of your amplifier
using an audio connection cord,
■ Connection of TV monitor
Connect the MONITOR OUT jack on the rear panel of this
unit to the video input Jack of your monitor TV using a
video cord with RCA pin jacks.
When a TV monitor equipped with an S-VIDEO jack is
used, connect the S-VIDEO jack of this unit to the
S-VIDEO jack of the TV monitor using a special S-Video
connection cord.
Note: -----------------------------------—----------------------- ------ —— ------- —-
A TV monitor can be connected to this unit via both the S-VIDEO
jack and the VIDEO jack. With some TV monitors, when the
S-VlDEO jack is used, the input signal to the TV monitor is
automatically switched to the S-Video input. Since on-screen
display is not possible if this occurs, disconnect the S-VIDEO jack
and only use the VIDEO input (composite input) when the
on-screen display is required,
When the signal is input via one of the unit's VIDEO input jacks,
no signal is output from the MONITOR OUT S-VIDEO jack.
■ Connection of VCRs
• S-VlDEO jacks are also available for connection of
VIDEO 2 inputs/outputs and VIDEO 4 inputs.
■ AC outlets
The AC outlets on the rear panel may be used to supply
power to other components in the system, such as
turntables, tape decks, etc. Never connect equipment
whose power consumption exceeds the maximum value
shown at each outlet.
SWITCHED outlets:
These outlets supply power only when the unit is turned
on. The maximum total capacity is 200 watts.
