Connection of speakers

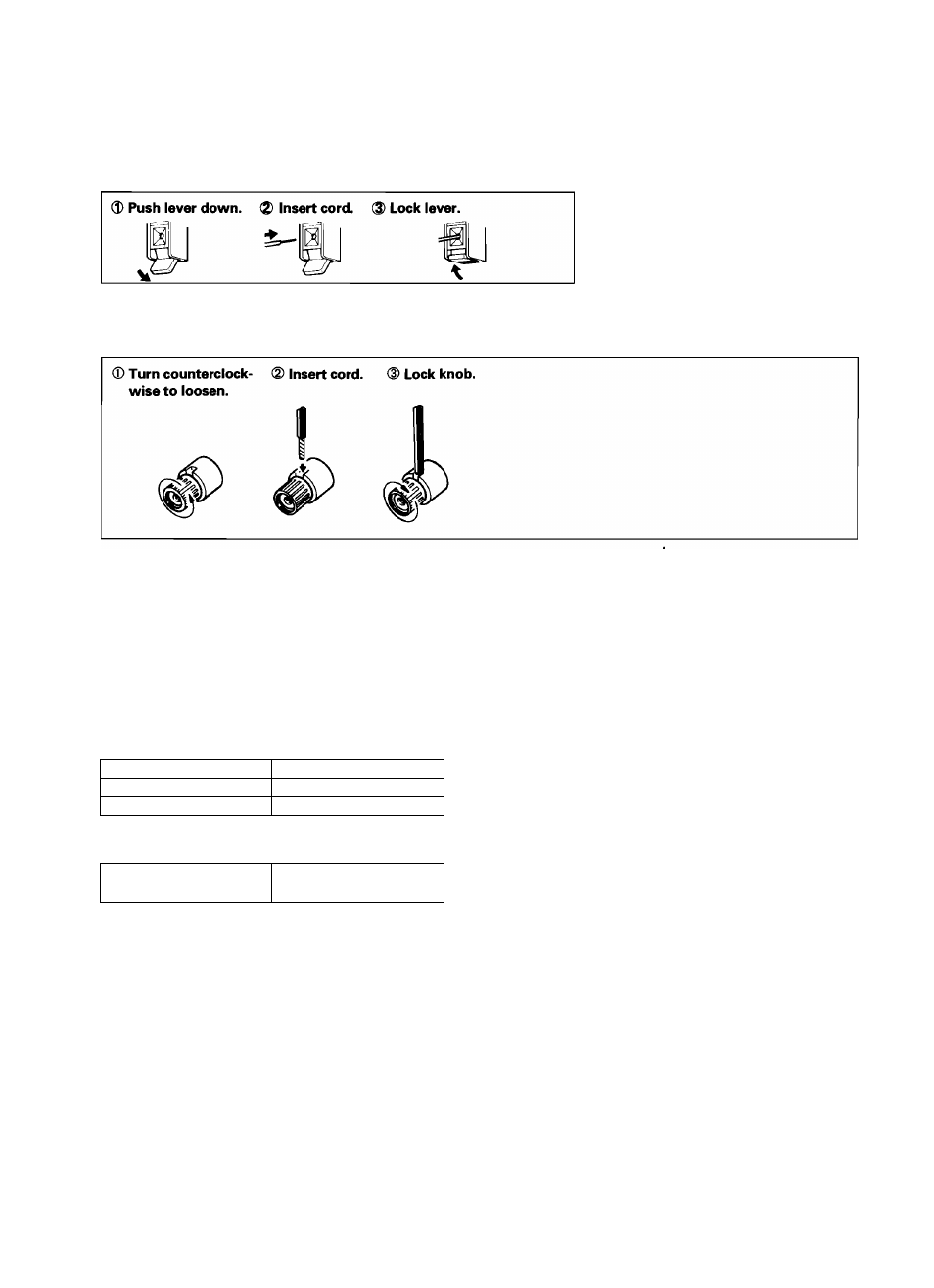

Speaker terminals for general
Front speaker terminals for Europe
e Never short-circuit the + and - speaker cords,
e If the left and right speakers are connected inversely or if the
speaker cords are connected with reversed polarity, the sound
becomes unnatural with ambiguous acoustic image positioning.
Be sure to connect the speakers and speaker cords correctly.
Setting the SPEAKER IMPEDANCE SELECTOR
When using the speaker A or speaker B separately
Speaker Impedance Selector position
4il, 6il A or B: LESS THAN 8 il
8il, 16il 8il OR MORE
According to the impedance of the speakers used, set the
SPEAKER IMPEDANCE SELECTOR on the rear panel as shown
in the table.
When using the speaker A and B simultaneously
Speaker Impedance Selector position
8il, 16il A and B:8ilORMORE
e When the IMPEDANCE SELECTOR switch is set to ’8 il OR
MORE', it is impossible to use the A and B speakers at the
same time.
Therefore, when using the speakers A and B simultaneously,
be sure to set the IMPEDANCE SELECTOR switch to the 'A
and B: 8 il OR MORE' position,
e During speaker system connection and operation of the
SPEAKER IMPEDANCE SELECTOR, set the POWER key to
OFF.
IMPEDANCE SELECTOR
AorB:
LESS THAN 8.
AandB:8c> OR MORE
Aor B:
8 0 OR MORE
J]
I
KR-V6040 (En) 7
