System control operation

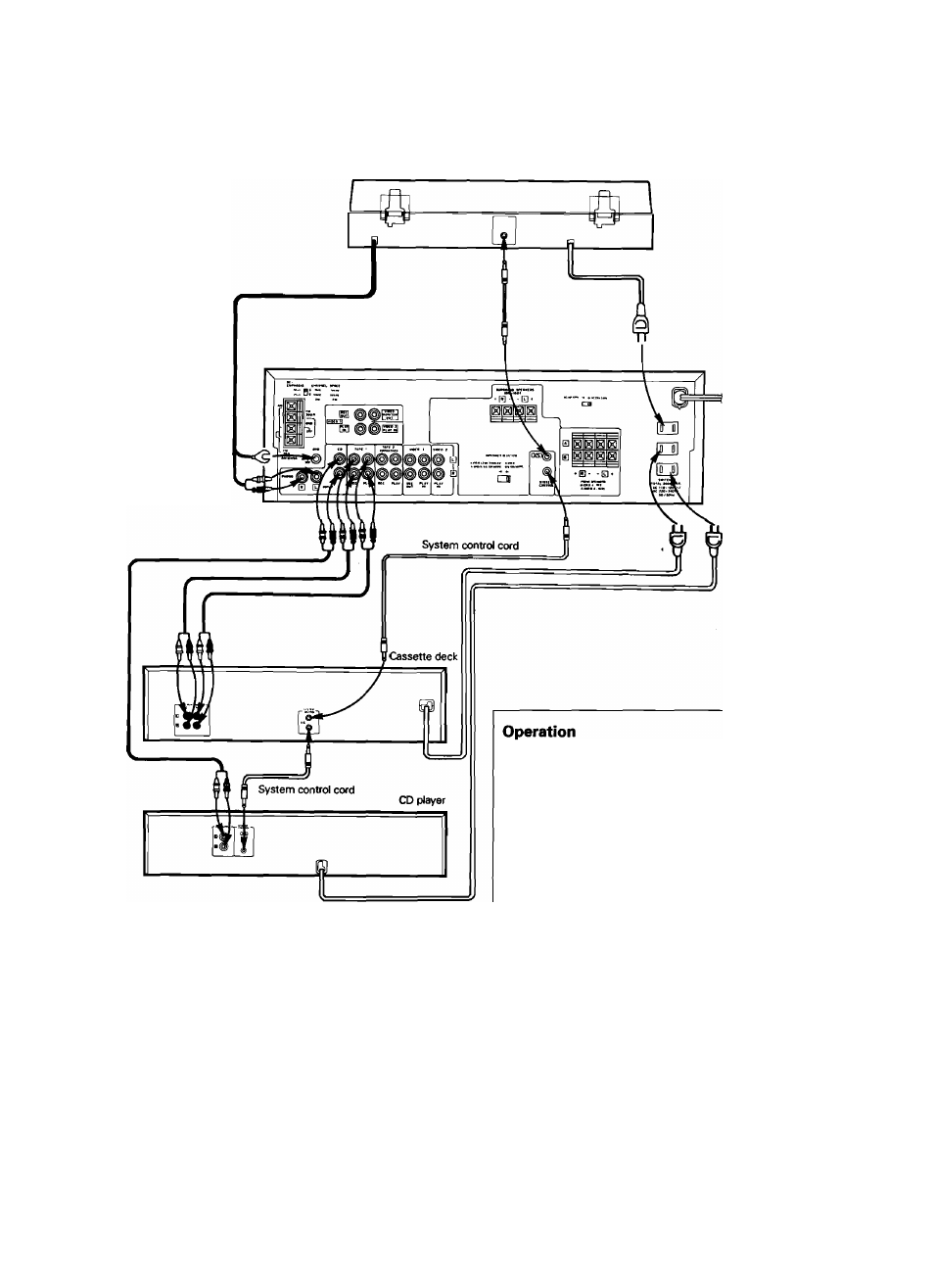

Connection
Using the system control cords provided with KENWOOD system component models, make connections as shown
below.
Turntable
For a cassette deck to
be subject to system
control operation, it
must be connected
to the TAPE 1 jacks.
To AC
outlet
System control connection
Be sure to insert the system control cord plugs fully into the
SYSTEM CONTROL terminals.
If the system control cord and audio cords are not connected
properly, the automatic system governing remote control and
system functions will not operate.
By connecting this unit to KENWOOD cassette deck, CD
player, and turntable models equipped with system control
jacks, the following integrated operation features become
available.
1. Automatic play operation
When starting play with the turntable, cassette deck, or CD
player connected to the receiver, press the desired input
selector keys on the receiver. The turntable, cassette deck,
or CD player will automatically enter play mode.
In the same way, pressing the piay key of turntable,
cassette deck, or CD player will automatically switch the
input selector on the receiver to the component on which
the Play key is pressed.
2. Synchro recording
To record the sound from the CD player or turntable on a
tape with the cassette deck, press the CD or PHONO of the
input selector keys and load a CD or record. Set the
cassette deck to rec pause mode, then press the PLAY
(START) key of the CD player or turntable. The cassette
deck will start recording automatically, synchronized with
the CD player or turntable starting play.
3. Remote control
The remote control unit provided with this unit, to which a
KENWOOD system turntable, cassette deck, or CD player is
connected, is equipped with related control keys. The
related components can be controlled used these keys.
10
KR-V6040 (En)
