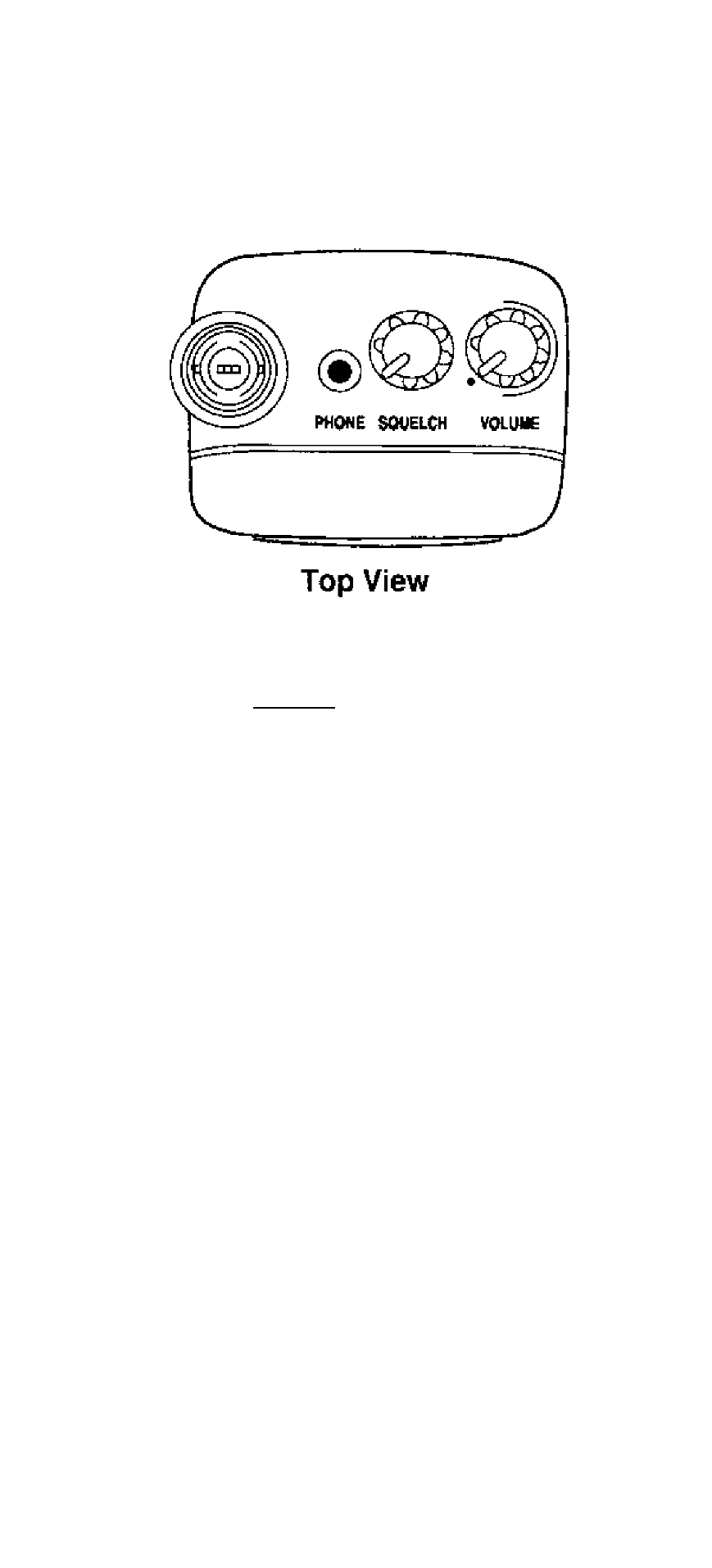

Controls and Indicators
Antenna Connect the rubber antenna to this BNC
Connector connector and turn clockwise until it locks.
Earphone Plug the supplied earphone into this jack for
Jack
private listening. When the earphone is
connected, the internal speaker is
disconnected.
Note the warning on the inside Front Cover
and on page 11.
SQUELCH Adjust this control to set the scan threshold
Control
fo eliminate the background rushing
noise heard in the absence of an incoming
signal. See the Operation Section for
adjustment procedure,
ON-OFF/ Use this control to turn the scanner on or off,
VOLUME snd to adjust the volume.
Control
Front View
(Refer to the foldout illustration inside the Back Cover)
Complete explanations of the use of these keys are in the
Scanning section, page 16, and Searching section, page 20.
1. LCD DISPLAY — The liquid crystal display (LCD)
shows the current channel and frequency. It also
displays the mode, status, and bank indicators.
A.
Scan Type Indicator — Indicates BANK Scan
operation,
B.
Channel Number
— Indicates the current channel
that the scanner is on.
