5.6.2. OPERATION WITH A CW FILTER
Set the IF SHIFT to its center position and the RIT to OFF.
Adjust the main tuning control for maximum deflection of
the S-meter. Receive signal pitch will be about 800 Hz, in­
dicating correct tuning.
5.6.3. KEY CONNECTION

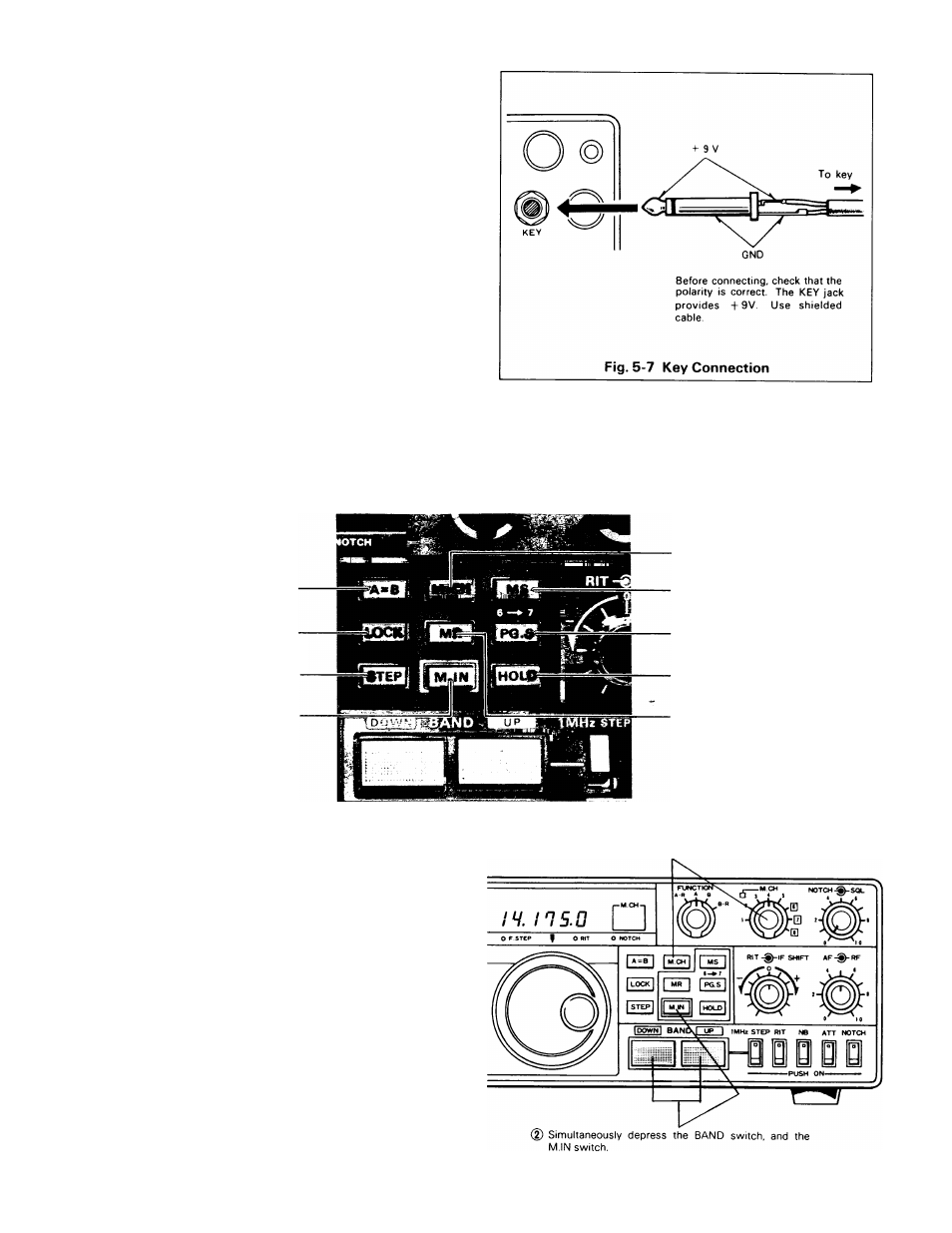

Your key should be connected as illustrated in Fig. 5-7.
When using an electronic keyer, make sure that polarity is
set for positive. Always use shielded line from the key to
transceiver.
5.7 Keyboard function
Brings the idle VFO frequency and mode
to that of the active VFO.
Locks the operating frequency.
Switches to RAPID frequency step for VFO
step tuning or program scanning. Step is
10 Hz in the normal position, and 100 Hz
in the ON position.
Inputs both frequency and mode into a
selected memory channel (CH's 1-8).
Depress to recall a memory channel. Se­
lect the channel with the M.CH switch.
Depress to scan the memory channels.
Scans the range between CH 6 fre­
quency and CH 7 frequency.
Holds scan. During program scan hold,
frequency can be tuned with the VFO
control and the mode can be switched.
When this switch is depressed, the chan­
nel selected by the M.CH switch is re­
called to the VFO for tunable operation.
The mode can also be controlled when
recalled by the MR switch.
• Erasing an unwanted frequency from memory
Unwanted memory content can be erased.
1. Depress the M.CH switch, and select the channel to be
erased with the M.CH switch.
2. Simultaneously depress the BAND switch (either UP or
DOWN), and the M.IN switch.
3. The display will clear, and only the decimal points will
display. All mode indicators will remain off.
® Depress the M.CH switch, and place the M.CH switch
to the unwanted memory channel.
