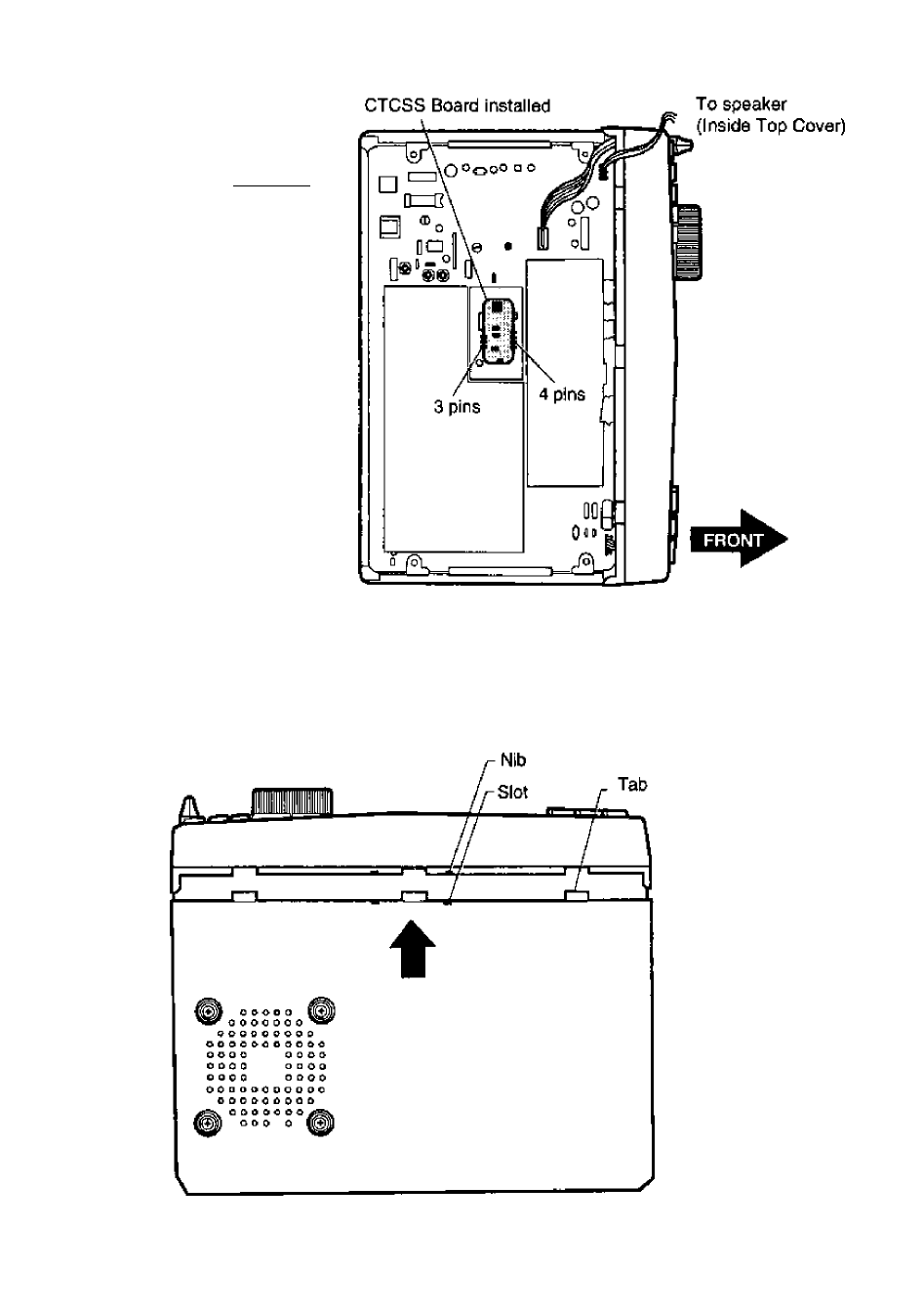

4. Align the pins on the

CTCSS Board with
the sockets on the

motherboard. Make
sure they go

straight

into the sockets.

The 4 pin socket is
toward the front of the

scanner.

The 3 pin socket is
toward the back of

the scanner.

5. Gently push straight

down on the CTCSS

Board until the pins

are fully seated in
the sockets.

6. Carefully replace the cover and the five screws.

Note:

The tabs on the cover hook under the front part of the chassis.
