1. Lamp functions
The following explains the function of each lamp. More information about the lamps and the
various terms used here will be provided below when we discuss the actual operation of the unit.
The POWER Lamp lights up whenever the power is ON.
The ERROR Lamp lights up whenever an error occurs.
The AUTO ANSWER Lamp lights up when the unit is in the "auto receive" mode
The COPY Lamp lights up when you are making a copy
The FINE Lamp lights up when the unit is operating in the "fine" mode
The START Lamp lights up when the unit is preparing to transmit or receive
THE ORIGINAL READY Lamp lights up when the original document is inserted correctly into the
sending section of the unit.
2 . Button functions
The POWER Button - press to turn the power ON or OFF
The START Button - Press to start transmission or non-automatic reception
The COPY Button - press to copy a document
The FINE Button - press when transmitting a document which contains fine print,
photographs or other very detailed images
^
ip* ^ ^
B. REAR PANEL SWITCHES

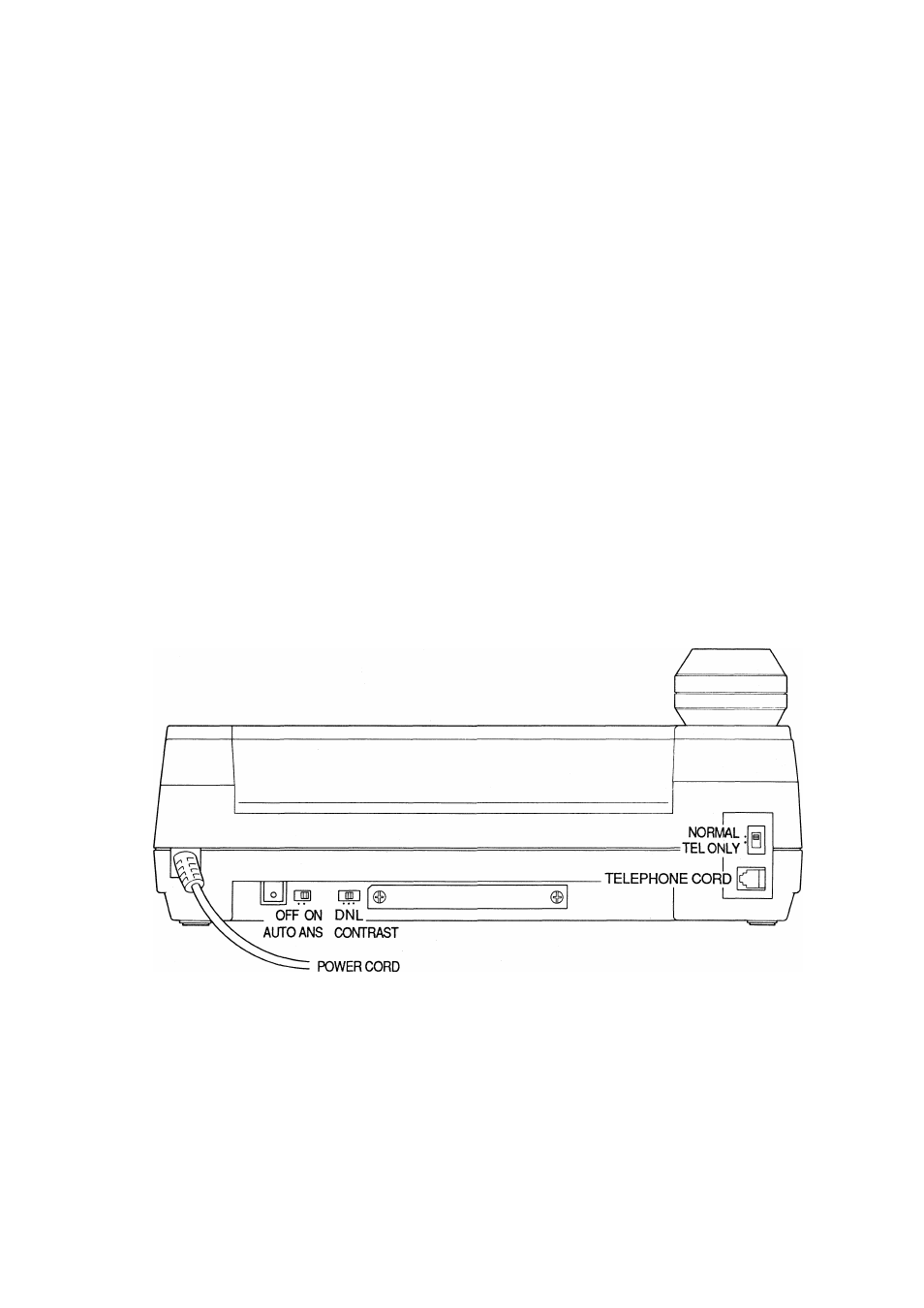

Looking at the rear panel of the unit, we see a row of switches, as shown in the diagram below.
The following expiains the functions of the controls on the rear panel, starting from the right side.
