secure power supply coru lu
dishwasher terminal box.

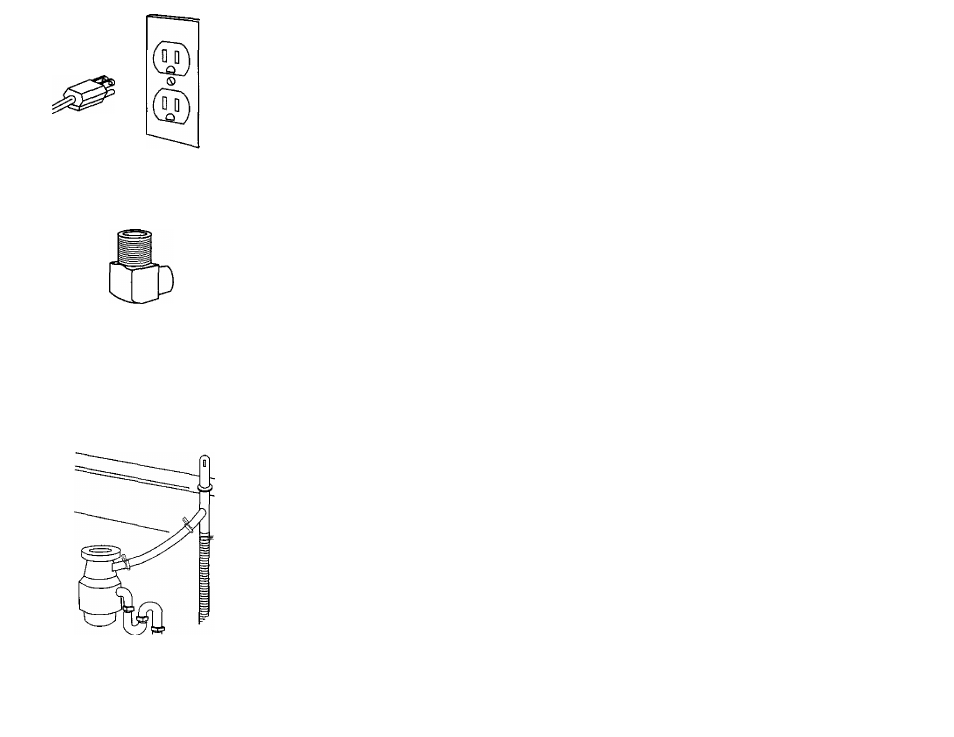

✓ power supply cord must plug into a
mating three-prong, grounded outlet,
located in the cabinet next to the
dishwasher opening. Outlet must
meet all local codes and ordinances.
Water
You must have:
✓ a hot water line with 20-125 psi
(138-862 kPa) water pressure.
✓ 120®F {49°0 water at dishwasher.
✓ 3/8" O.D. copper tubing with
compression fitting (1/2" minimum
plastic tubing is optional but not
recommended).
✓ a 90° elbow with 3/8" N.P.T. external
pipe threads on one end.
Do not solder within 6" (15.2cm) from
water inlet valve.
Drain
You must:
✓ use a new 12 feet (3.7m) maximum
drain hose that meets all current
AHAM/IAPMO test standards and is
resistant to heat and detergent.
✓ have a high drain loop 20 inches
(50.8cm) above the subfloor or floor.
✓ connect drain hose to waste tee or
disposer inlet above drain trap in
house plumbing and 20 inches
(50.8cm) minimum above the floor.
✓ use an air gap
if the drain hose is
connected to house plumbing lower
than 20 inches (50.8cm) above
subfloor or floor.
✓ use 1/2" minimum I.D. drain line
fittings.
6
