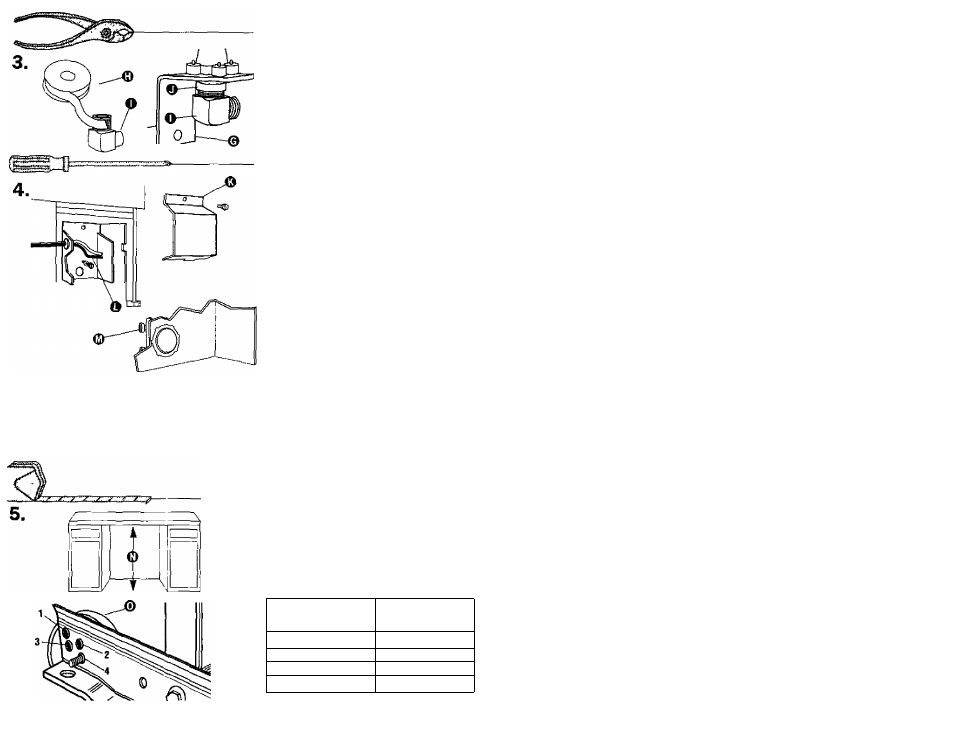

Apply Teflon tape or pipe joint
compound © to 90“ elbow fitting O
and connect fitting to water inlet valve
O. Hold bracket ® with pliers Tighten
elbow until snug, and be sure that it
faces to the rear.
Remove terminal box cover © Pull
appliance wires O through hole in
terminal box
If you are direct wiring:
install a U L.'
listed/CSA-certified clamp connector ©
to the terminal box If using conduit,
use a U L -listed/CSA-certified conduit
connector.
If you are installing a power supply
cord kit,
do so now and follow kit
instructions.
HELPFUL TIP:
Put cardboant under cHehwasher
unttt ft fs Inefaffed fn c^net
opening, lite cardboard will help
protect floor covering during
tnstaltatfon.
Measure height of cabinet opening from
underside of countertop to floor where
dishwasher will be installed D (you
need the lowest point) Check chart for
that height opening Put wheels
Min.
cutout height
Wheel
position
(see illustration)
34’ {86.4cm)
1
34-1/8" (86.7cm)
2
34-5/16’ (87 2cm)
3
34-1/r (87.6cm)
4
continued on page IS
14
