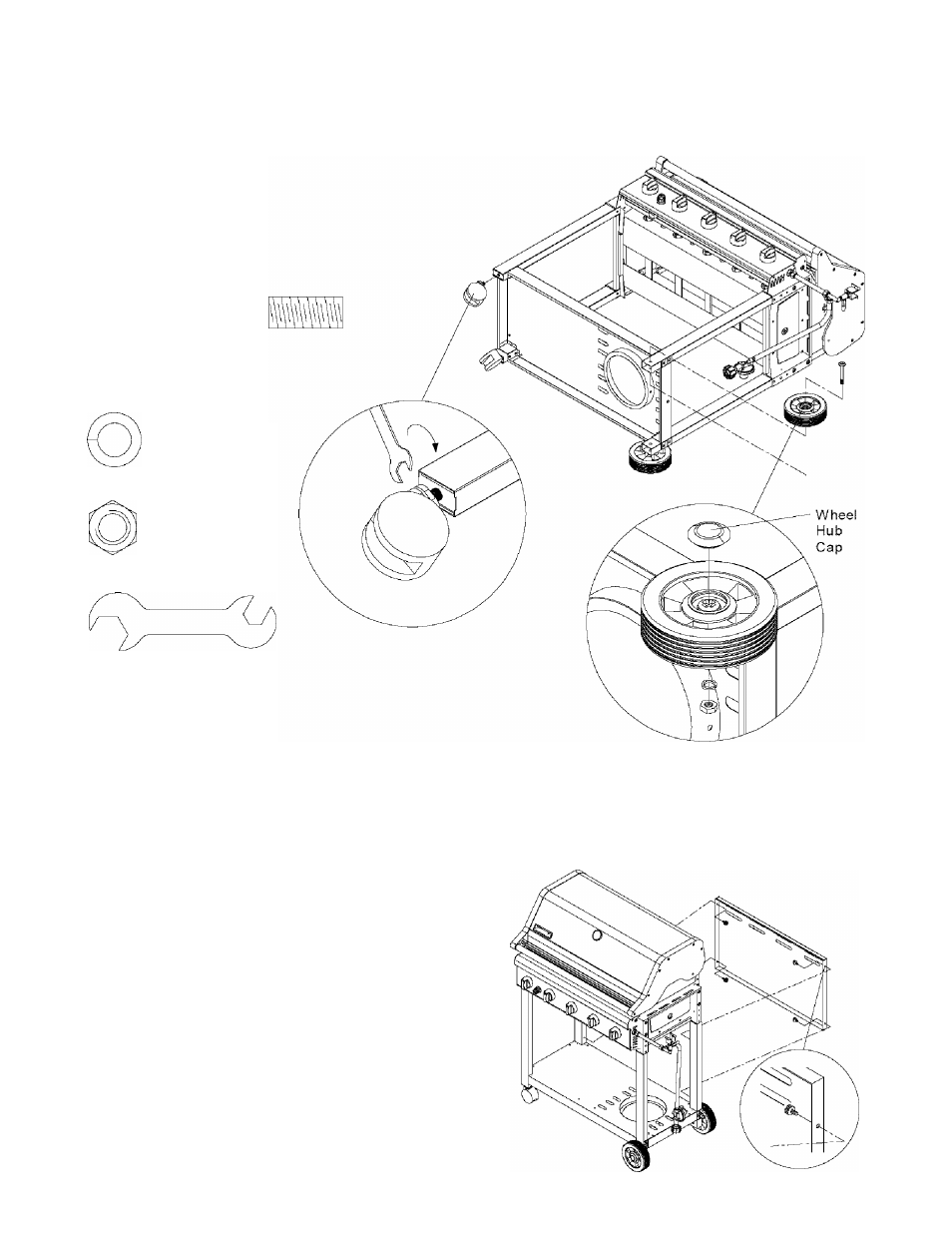

Install Casters and Wheels
□ Install the 2 Casters onto the Caster Seats.
□ Install the Wheel on the Cart Legs. Do not
overtighten or \A/heel will not turn freely. Then
snap the Wheel Hub Cap onto the wheel.
Wheel
Bolt
3/8"x3-3/8"
Qty. 2
Part # S211G06352
Spring
Washer
3/8"
Qty. 2
Part # S431G0610A
Look Nut 3/8"
Qty. 2
Part # S372G0611A
Wrench/No.17 Customized
Qty. 1
Part # P05515019F
Scale 1:2
□ IMPORTANT: Lock both casters, with an assistant
lift the assembled grill.
Install Cart Rear Panel (For Model 141.16324
only).
□ Install the Cart Rear Panel between Rear Cart
Legs. Tighten screws securely.
Pattern
Head
Screw
1/4"x1/2"
Qty. 4
Part # S132G04082
