B-5
Cisco 1751 Router Hardware Installation Guide
78-11258-04
Appendix B Cabling Specifications
VIC Cables and Pinouts
VIC Cables and Pinouts
This section describes the VIC cables and pinouts for foreign exchange station
(FXS), foreign exchange office (FXO), and E&M connectors. Use the following
cables to connect the VICs to the network:
•
Standard RJ-11 modular telephone cable to connect FXS VIC ports
(color-coded gray) to a telephone or fax machine.
•
Standard RJ-11 modular telephone cable to connect FXO VIC ports
(color-coded pink) to the PSTN or to a PBX that does not support E&M
signaling.
•
Standard RJ-48S connector and cable to connect E&M VIC ports
(color-coded brown) to a PBX line. The cable wiring depends on the PBX
type and connection. For details refer to the Cisco WAN Interface Cards
Hardware Installation Guide.
shows how to connect the VICs to the network.

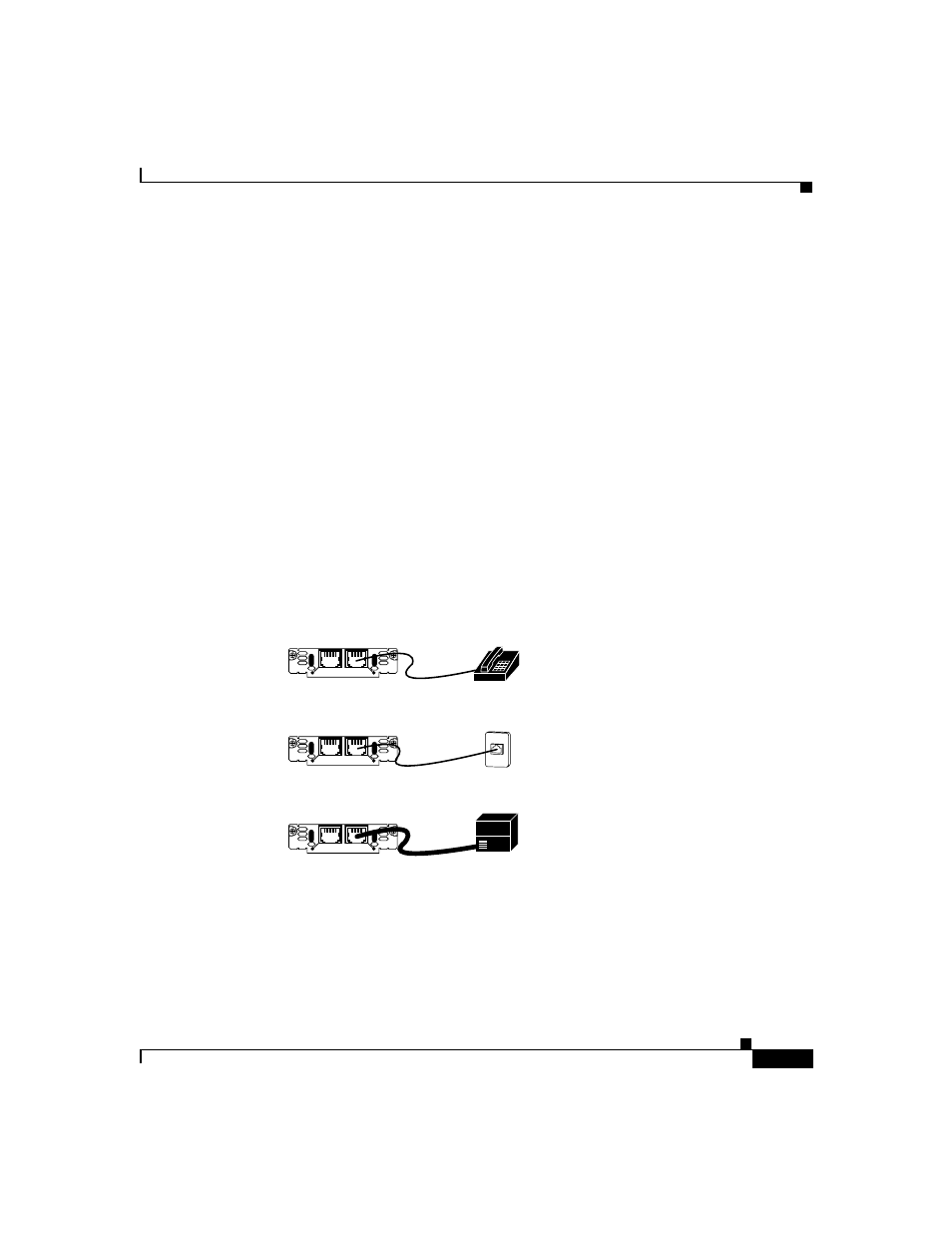

Figure B-2
Connecting VICs to the Network
SEE MANUAL BEFORE INSTALLATION
VIC
E&M
IN USE
IN USE
1
0
SEE MANUAL BEFORE INSTALLATION
VIC
FXO
IN USE
IN USE
1
0
SEE MANUAL BEFORE INSTALLATION
VIC
FXS
IN USE
IN USE
1
0
PBX
FXS VIC
FXO VIC
E&M VIC
10691
