2-7
Cisco 1751 Router Hardware Installation Guide
78-11258-04
Chapter 2
Installation
Installing WICs and VICs
Step 3
Remove the metal plate that covers the card slot.
Step 4
Hold the card by the edges on either side of the card front panel, and line up the
card edges with the guides inside the card slot, as shown in
Step 5
Insert the card in the slot and gently push it into the router until the front panel of
the card is flush with the rear panel of the router.
Step 6
Tighten the screws.

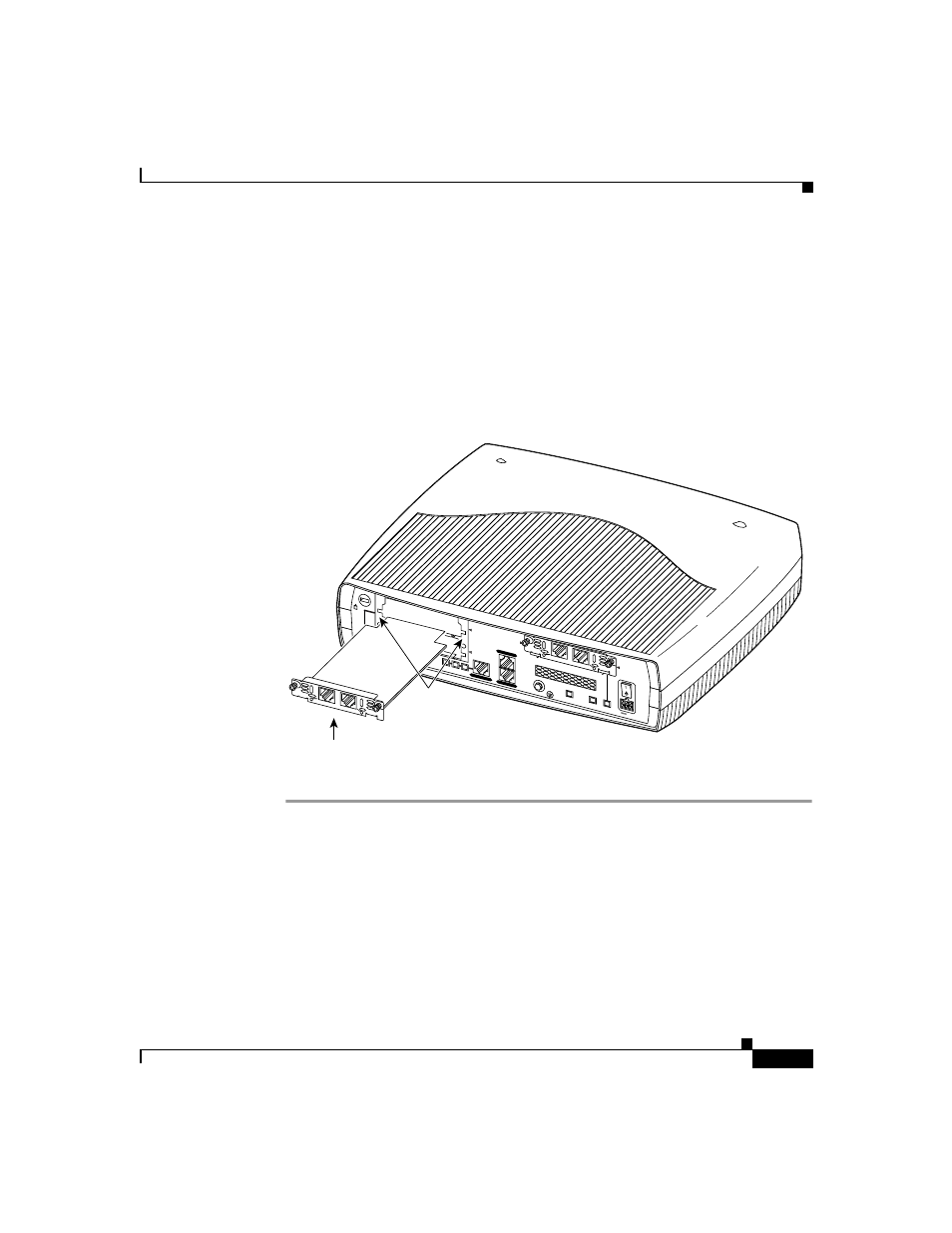

Figure 2-3
Inserting a WIC or VIC in the Router
46565
Interface card
+5, +1
2, -12
VDC
CONS
OLE
AUX
Model Cisco 1750
10/100 ETHERNET
SEE MANUAL BEFORE INSTALLATION
VIC
2FXO
PVDM
OK
MOD O
K
SLO
T 1
SLO
T 2 O
K
FDX
SLOT 0 O
K
SLOT 1 O
K
100
LINK
THIS SLO
T
ACCEP
TS
ONLY V
OICE
INTERF
ACE
CARDS
SLOT
2
SLOT 0
1
IN USE
0
IN USE
Guides
SEE MANUAL BEFORE INSTALLATION
VIC
2FXS
1
IN USE
0
IN USE
