Chapter 1 Cisco 1751 Router Overview
Rear-Panel Ports and LEDs
1-4
Cisco 1751 Router Hardware Installation Guide
78-11258-04
Rear-Panel Ports and LEDs
This section describes the router rear-panel ports and LEDs, which are shown in
Figure 1-2 and described in Table 1-2 and Table 1-3 .

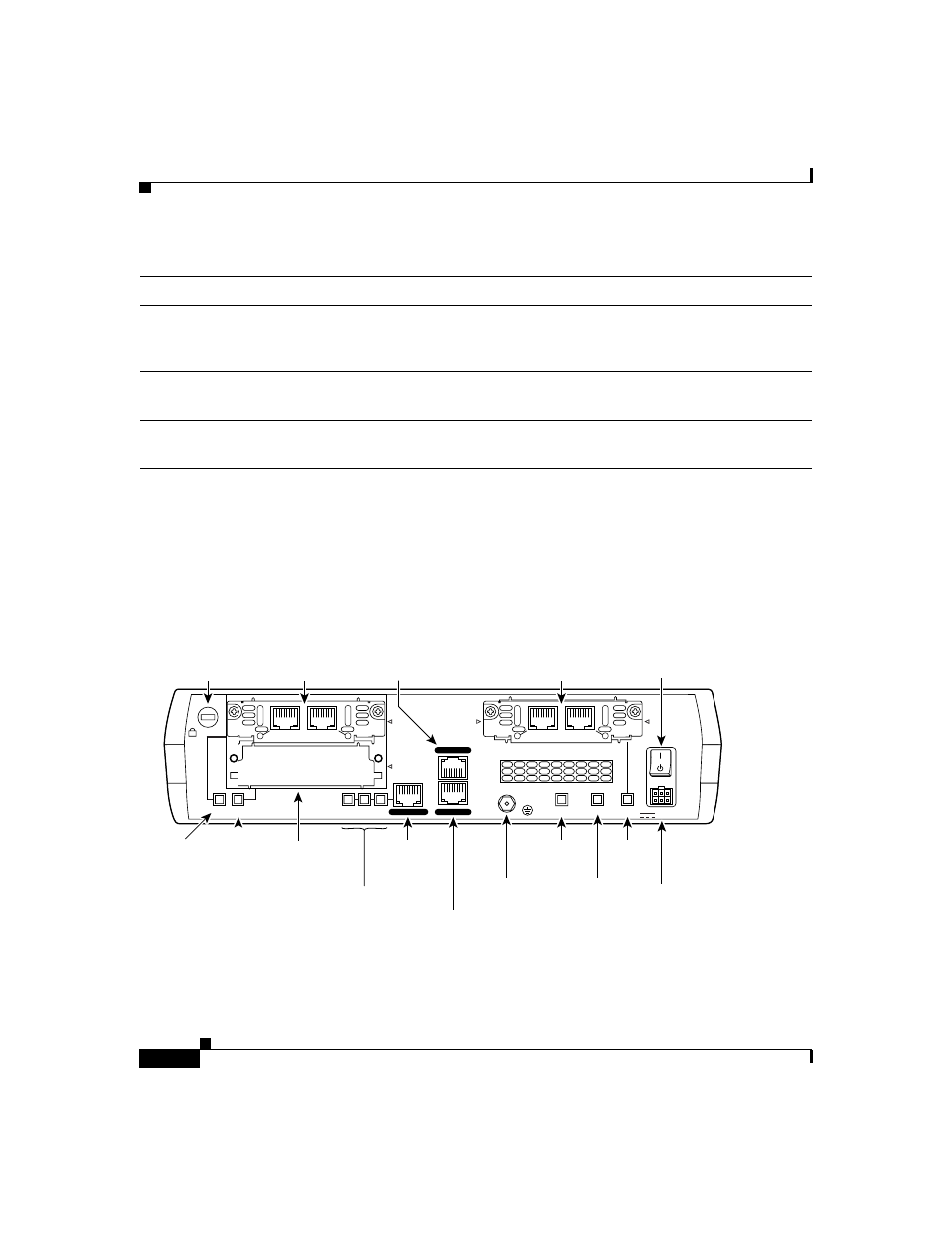

Figure 1-2 Rear-Panel Components and LEDs
Cisco ConfigMaker support Supports Cisco ConfigMaker application, a wizard-based
software tool, to configure a network that includes the
Cisco 1751 router.
Cisco Voice Manager support Supports Cisco Voice Manager to help you install and operate
voice and fax services over the IP network.
Compatible with Cisco Networked
Office stack Stackable with other Cisco Networked Office stack products.
Table 1-1 Key Features (continued)
Feature Description
+5, +12, -12 VDC
CONSOLE
AUX
Model Cisco 1751
10/100 ETHERNET
SLOT 2
SEE MANUAL BEFORE INSTALLATION 1
IN USE VIC
2FXO
PVDM OK MOD OK
SLOT 1
SLOT 2 OK FDX SLOT 0 OK SLOT 1 OK 100 LINK
THIS SLOT
ACCEPTS
ONLY VOICE
INTERFACE
CARDS
SLOT 0
Power
socket
Power switch
46560
FDX/100/LINK LEDs
Auxiliary port
Kensington-compatible
locking socket
WIC/VIC
slot 1
10/100-Mbps
Ethernet port PVDM
OK LED
Slot 0
OK LED
Slot 1
OK LED
WIC/VIC
slot 0
Ground
wire
MOD
OK LED
Console port
Slot 2
OK LED
0
IN USE
SEE MANUAL BEFORE INSTALLATION 1
IN USE VIC
2FXS
0
IN USE
VIC
slot 2
