29

system the supply piping to the tee fitting should be of at least the next largest size of pipe
to the connection provided at the steamer.

b) The steamer has two 3/4-inch NHT fittings (Standard Garden Hose fitting) for the water

connections to the water reservoir and to the condenser. These fittings are detailed as C1
and C2 in Figure 4-1. NOTE: The hose connector used must be NSF or FDA rated for food
grade service.

c) Install a manual water valve between the main cold water supply line(s) and the steamer

supply lines.

d) The National Sanitation Foundation (NSF) requires installation of a check-valve in all supply

lines in accordance with and as required by local plumbing codes.

e) The water supply line(s) should be designed so that the unit can be moved for service.

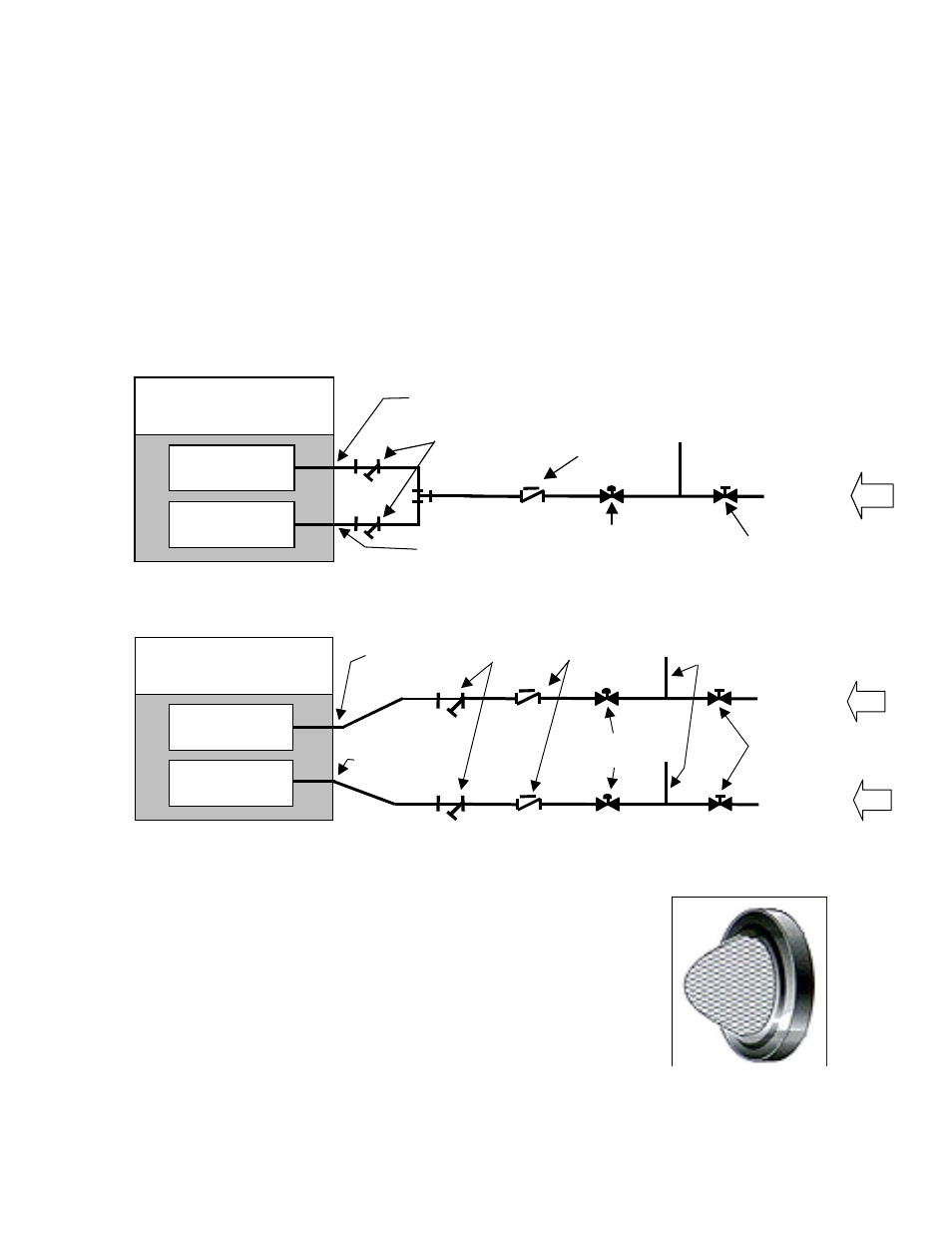

Figure 4-14 Cleveland Range Single Water Supply Arrangement

(

The strainers for this unit are preinstalled in the water inlet)

Figure 4-15 Cleveland Range Separate Water Supply Arrangement when Using

Separate Conditioned Feed Water Supply

(

The strainers for this unit are preinstalled in the water inlet)

f)

A Filter Washer (dirt filter) is supplied installed in each
of the water inlets of this steamer (See Figure 4-16),
Cleveland Range part number 110987.

g) Construct all supply lines up to the point of installing the

strainer. Flush the water supply lines before connecting
the strainer.

h) Apply pipe dope or Teflon tape to any threaded pipe

connections. DO NOT USE SEALANT ON ANY
NATIONAL HOSE THREADED CONNECTION.

Steam Resevoir

Solenoid

Water Connection C1 on

Dimension Diagram

Pressure Reducer

(if required)

Main Water

Shut Off Valve

Main Cold

Water Supply

Air/Water Column

(if required)

Check Valve

Strainer

Condenser Solenoids

Water Connection C2 on

Dimension Diagram

SteamChef¥ 3

Flow

Water Connection C1 on

Dimension Diagram

Condenser Solenoids

Water Connection C2 on

Dimension Diagram

Pressure Reducer

(if required)

Main Water
Shut Off Valve

Standard Cold

Water Supply

Air/Water Column

(if required)

Check Valve

Strainer

Flow

Conditioned Cold

Water Supply

Flow

Steam Reservoir

Solenoids

SteamChef¥ 3

Figure 4-16 Filter

Washer Assembly
