20

1. Locating the Steamer

Location and Clearance Requirements of the Steamer

(1) Do not locate the steamer directly over a floor drain.

(2) Observe the following criteria when selecting an operating location for the SteamChef¥ 3

steamer.
x

Maintain a 3-inch operating clearance at the sides of the unit, and at least a 4-inch
clearance at the back.

x

A 12 in clearance is recommended on the right side for servicing the steamer.

x

Approximately 24 inches of clearance is recommended in front of the unit for opening the
door and standard pan clearance.

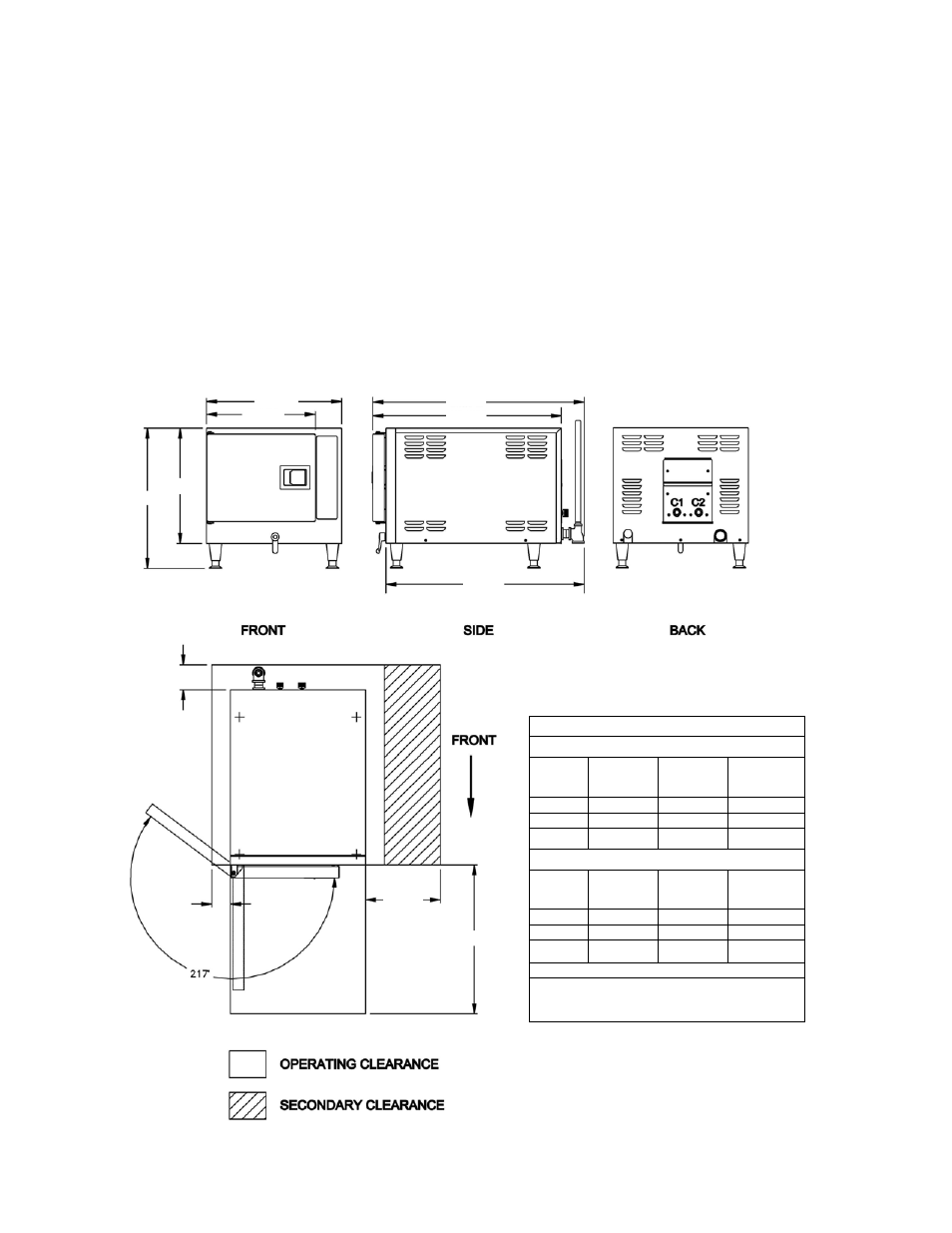

Figure 4-1 SteamChef

¥

3 Dimensions and Clearances

Electrical

6-kW Units

1-PH

3-PH

VOLTS

WATTS

AMPS

AMPS

208

6400

30.8

17.8

220

5440

25

14.3

240

6400

26.7

15.4

9-kW Units

1-PH

3-PH

VOLTS

WATTS

AMPS

AMPS

208

9400

45.2

26.1

220

7960

36.1

20.9

240

9400

39.2

22.6

Clearances

Right – 12.00”

Left – 3.00”

Rear – 4.00”

21.640

17.434

33.826

18.500

22.500

31.750

3.000

12.000

24.000

30.167

4.000

C1 Feed Water Reservoir
C2 Condenser Water
