8

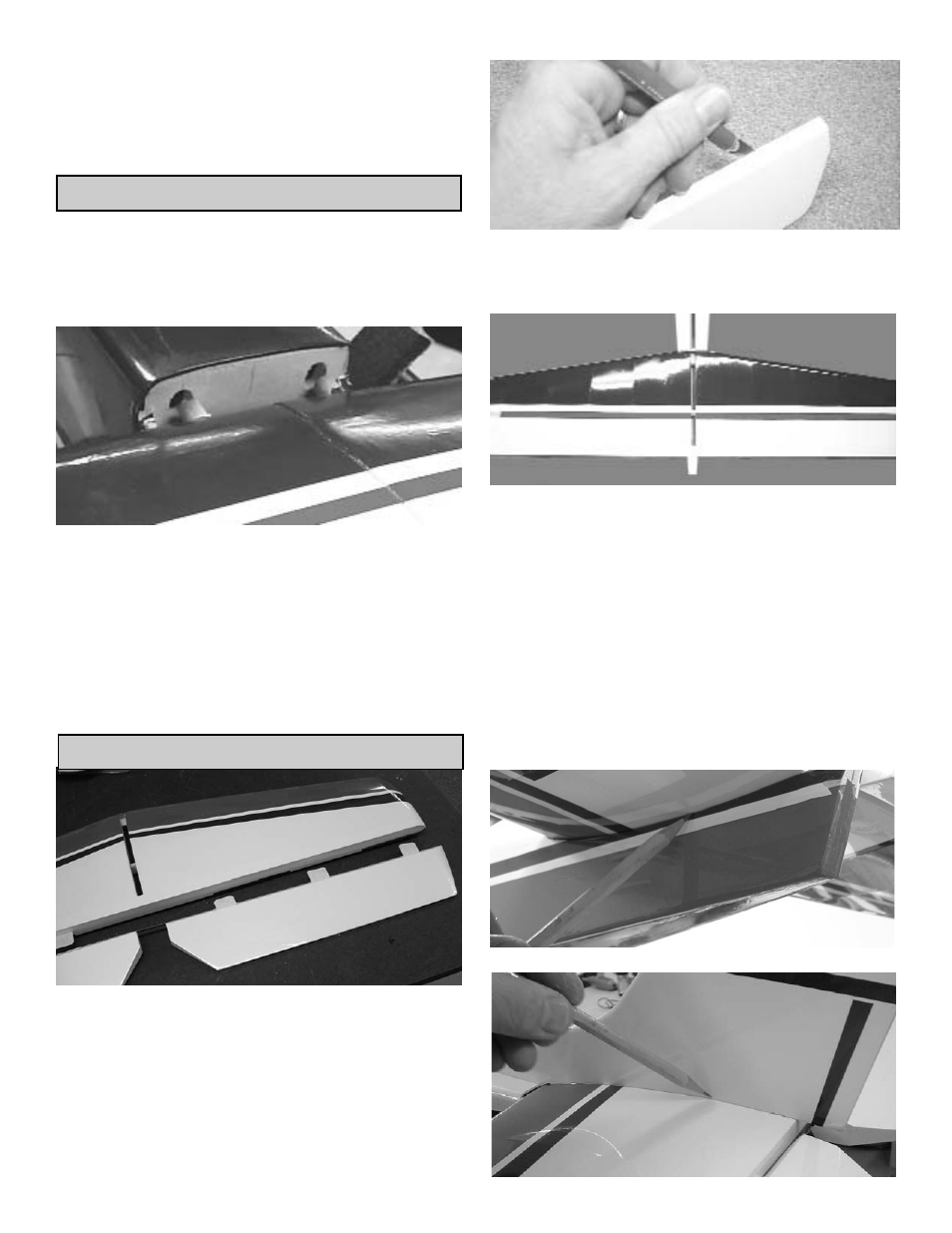

WING INSTALLATION ON FUSELAGE
2. Insert the wing into the wing saddle of the
fuselage by sliding the dowels on the front of
the wing into the holes in the former just for-
ward of the wing saddle.
Insert two 3.5mm socket head screws and the
3.5mm washers through the wing and then
begin to screw into the blind nut in the fuse-
lage. Screw down until the screws are touch-
ing the wing tight.
4. Insert the wire into the hole in the right side of
the fuselage.
Repeat these steps for the rudder pushrod
making it exit the left side of the fuselage.
Tape the pushrods to the side of the fuselage
inside the wing saddle area.
1. Slide the aluminum wing tube into one wing
panel.
Slide the other panel on till the wings butt
together.
STAB & ELEVATOR INSTALLATION
1. Collect the following parts:
(1) Stabilizer
(2) Elevator
(1) Wing/fuse assembly
(6) CA hinges
(1) Elevator joiner Wire
2. As with the wing and ailerons, use a modeling
knife to make sure the hinge slots are cleanly
cut.
3. Place the stab on the fuse and align the cen-
ter slot with the front slot and the rear of the
fuselage.
4. Slide the fin into the slot in the fuselage and
the stab.
Push the fin all the way into the slot till it stops.
Tape the fin onto the fuselage.
5. Mark the bottom of the stab along the fuse-
lage.
Mark where the fin sits on top of the fuselage
both in front and rear.
Mark where the fin slides down into the stab
and the fuselage.
