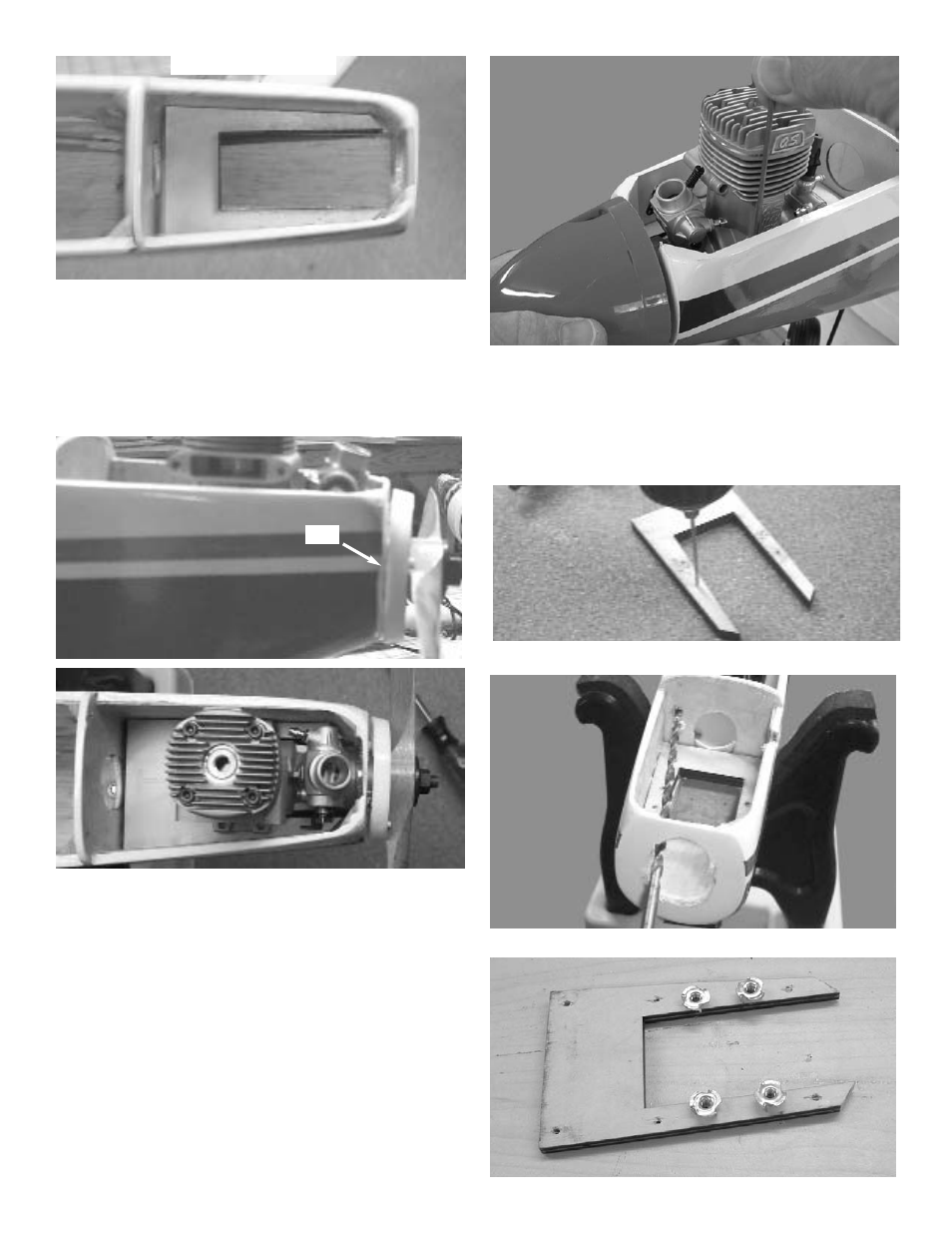

3. Place the mount into the front of the fuselage.
Make sure that the smaller side beam is on
the left side of the fuselage.
The motor mount should point a little to the
right about 2 degrees. Mark the top of the
plate.
Left side of the fuselage
Gap
4. Slide the engine into the motor mount and
through the front nose ring.
Open the spinner and place the spinner back
plate onto the engine. This will help to center
the front of the engine to the fuselage
Make sure that there is a clearance between
the spinner back plate and the front of the
fuselage .
4. Mark the location of the engine mounting
holes.
Also at this time mark the location of where
the throttle pushrod should exit the firewall.
Remove the engine and the motor mount
plate.
5. Drill the engine mounting holes in the plate.
6. Drill the hole for the engine throttle pushrod.
