11

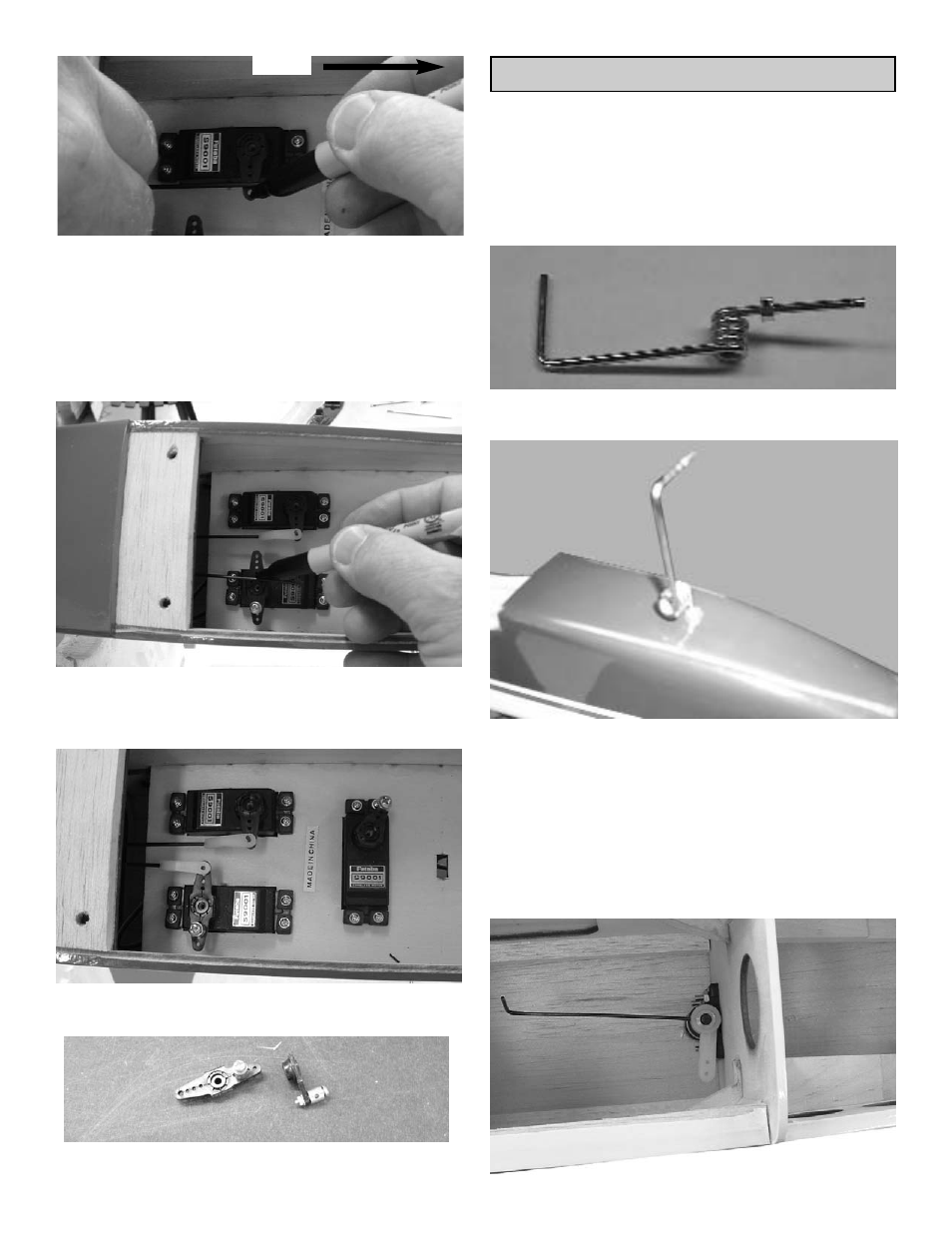

3 . Tape the elevator so that it stays in the neutral
position.
Align the servo arm so that it is sitting at 90
degrees to the servo.
Mark the location where the elevator pushrod
wire meets the outer hole of the servo arm.
Forward
4. Bend the wire up 90 degrees at that mark.
Slide the swivel keeper over the end of the
pushrod and snap to the wire.
5. Repeat steps 1 thru 4 for the rudder servo.
5. Install the e-z connector on one end of the
servo arm
NOSE GEAR INSTALLATION
1. C
OLLECT THE FOLLOWING PARTS
(1) Nose gear strut
(3) Wheel Collars and set screws
(1) Wheel
(1) Nose gear steering arm
(1) 1.5mm x 43 cm wire and tube
(1) EZ connector and screw
(1) Nylon Swivel Keeper
2 . Slide a wheel collar with a set screw onto the
top of the nose gear gear strut.
4 . Insert the nose gear strut thru the hole on the
bottom of the fuselage.
Adjust the strut so that the coil is just off the
bottom of the fuselage.
When satisfied, tighten the wheel collar set
screw.
Holding the strut up inside the fuselage, turn
the fuselage over.
