14

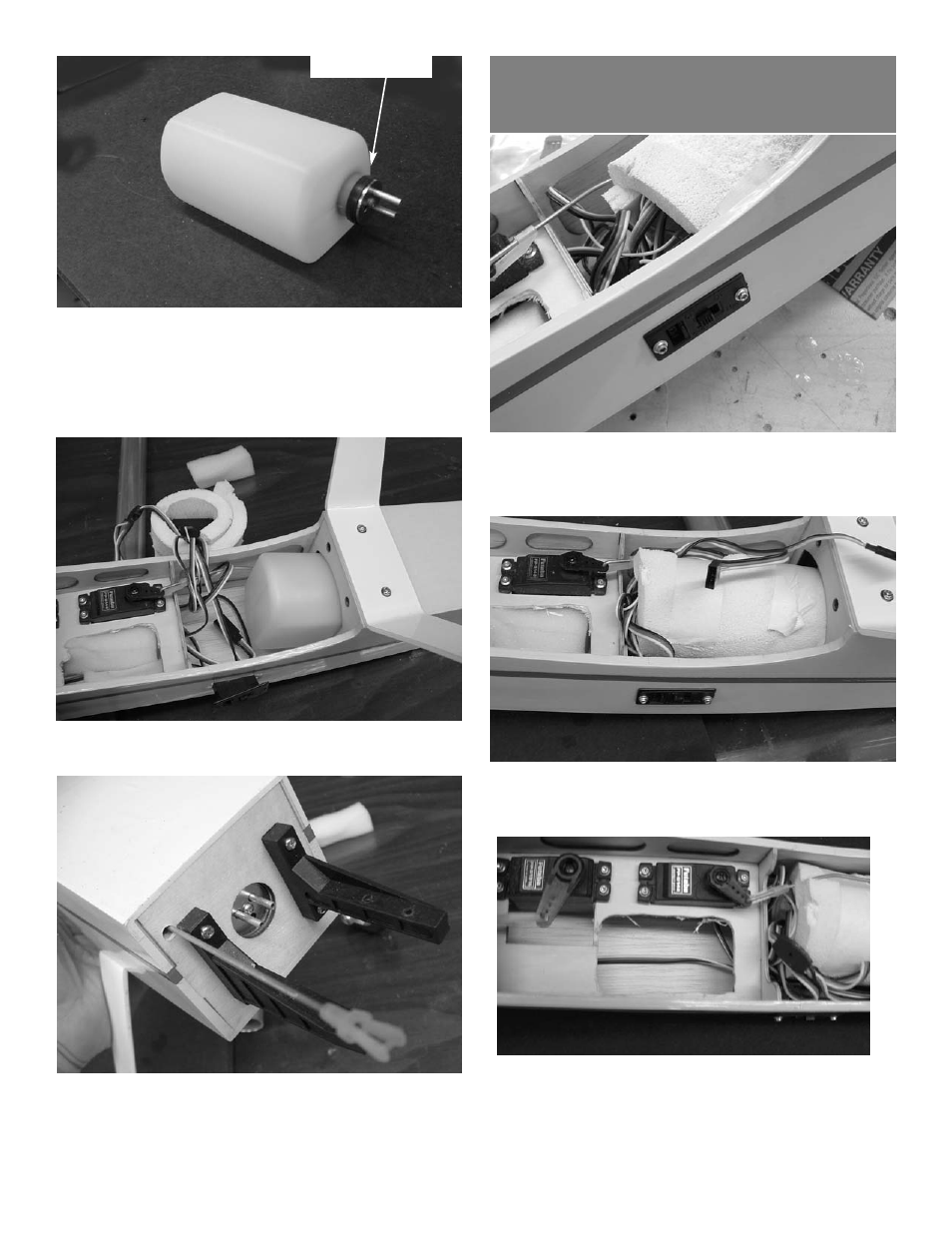

3. Insert the cap in the tank, making sure the
vent line is at the top of the tank. The top of
the tank is the one closes to the cap. The
clunk should be 1/4” off the bottom of the tank.
Tighten the center screw to retain the cap in
the tank.
top of tank
4. Insert the in the opening in the bulkhead.
5. Push tank forward until the cap fits in the hole
in the firewall. The rear of the tank can be
padded with foam.
Receiver Switch and
Battery Installation
1. The switch can be mounted on either side of
the fuse, whichever is opposite the exhaust.
2. The receiver can be wrapped in foam and
placed in the opening between the servo tray
and rear of tank.
3. The battery can be mounted forward with the
receiver if necessary for balance. It will proba-
bly need to be mounted toward the rear for
balance. The opening opposite the throttle
servo can be enlarged to allow the battery to
be moved back.
