13

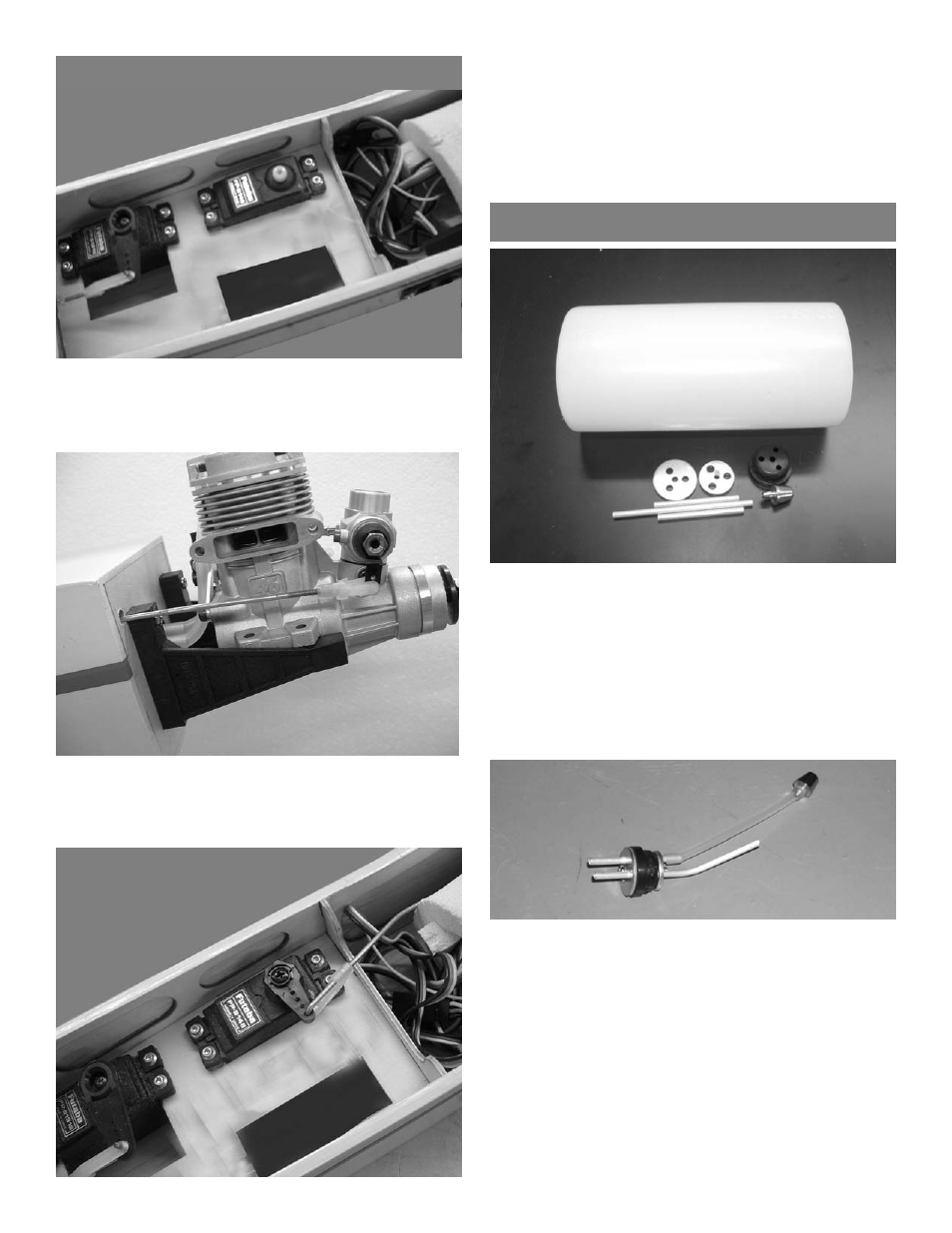

Throttle Servo Installation
1. Two cutout are provided for the throttle servo,
one on each side of the fuselage. Mount your
servo on the side that matches the engine you
are using.
2. Install a clevis and keeper on the end of the
2-56 x 15” pushrod and connect to the throttle
arm on your engine.
3. Open the throttle on the engine to full and set
the servo to full throttle. Mark the pushrod and
make a 90 degree bend at the mark. The bend
will need to be made down into the fuselage
because of the close clearance of the wing.
Cut the bend at 3/8” and install in the servo
arm and retain with the nylon swing in keeper.
Fuel Tank Installation
1. COLLECT THE FOLLOWING ITEMS
(1) FUEL TANK
(1) RUBBER STOPPER
(2) CAP WASHERS
(3) ALUMINUM TUBES
(1) TANK CLUNK
(1) CAP SCREW
(1) SILICONE TUBE
2. Assemble the cap with the large washer on
top the rubber stopper and the small washer
on the bottom. Insert the screw into the center
hole. Use the long aluminum tube and bend at
a 45 degree angle to reach the top of the tank
when the cap is installed. One of the short
tubes will be the fuel pickup. Attach the sili-
cone tube to the end of the aluminum and
adjust the length so that the clunk will be
about 1/4” off the bottom of the tank when
held vertical.
