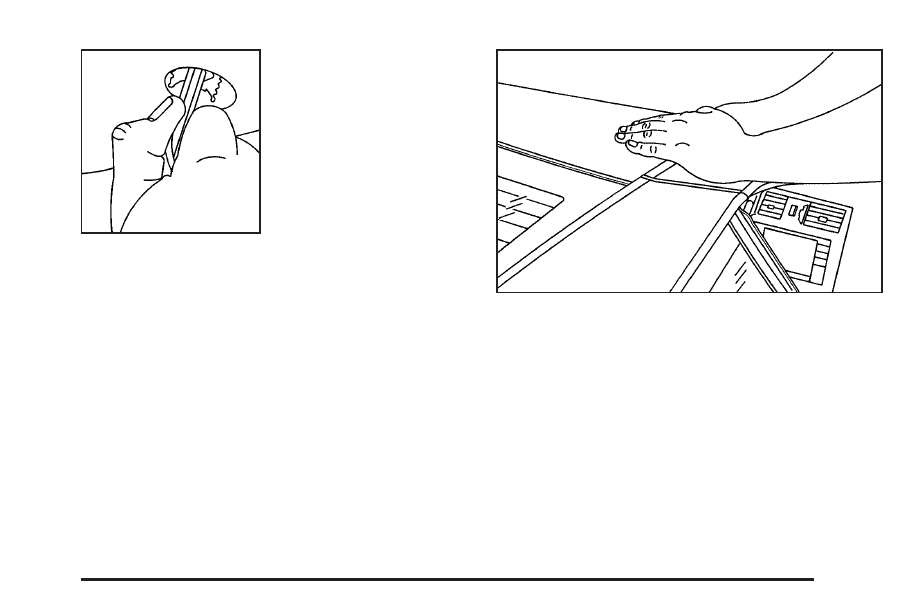

19. While holding the
rear of the top
down, insert
the wrench into the
bolt in the plug
opening in the
headliner.
Turn the wrench counterclockwise until it
stops to fully open the latch jaws around
the pins.
20. Pull down on the roof with the latch turned
open. Turn the wrench clockwise until it
stops to lock the top into position. Push up on
the roof. If it moves away from the windshield
header it is not latched and you will need
to repeat the previous steps.
21. From outside the vehicle, push down on both
rear corners of the top to make sure it is
completely locked into place.
22. From inside the vehicle, reach behind the
headrest and gently pull the wings out a
small amount. Then, fold the front tonneau to
the closed position.
23. Manually close the trunk.
133
