15
2.7 Wiring Specifications
The wiring Harness has a label affixed indicating the Power, Video and Communication
conductors. Do not remove this label as it may be a useful future reference.

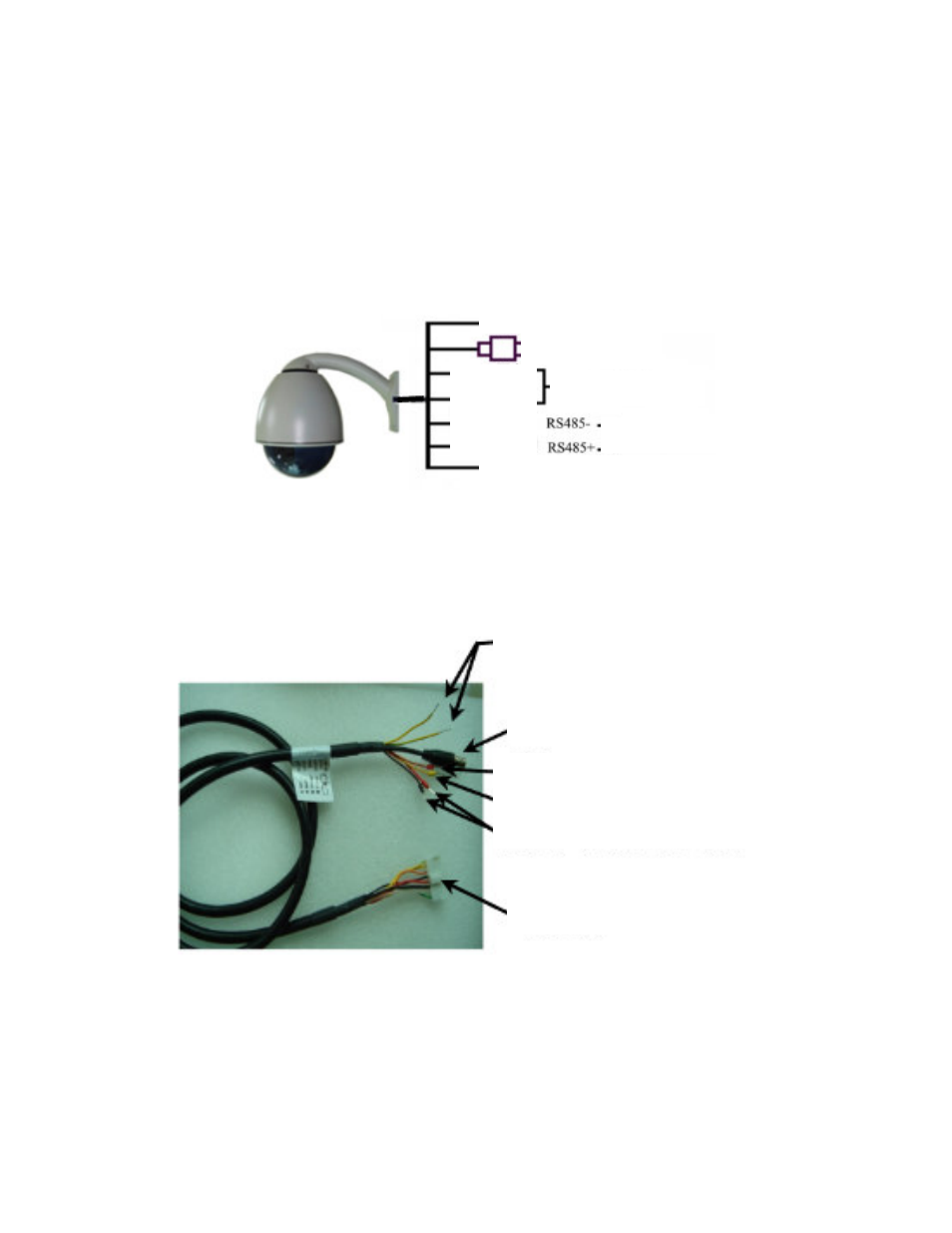

Figure 20 is the illustration of the wiring diagram for the electrical connections to the dome unit.
Fig. 20
Figure 21 illustrates the wiring harness included with the dome.
Fig. 21
Yellow/Green: Ground Wire
Video output
24V power supply
Black
Red
Yellow:
Orange:
Yellow/Green: Ground Wire
Connect to control keyboard
Yellow/green: Ground
Video output, BNC Connector
Orange: RS485+
Yellow: RS485-
Red, Black: 24VAC power supply
Connect to dome device
