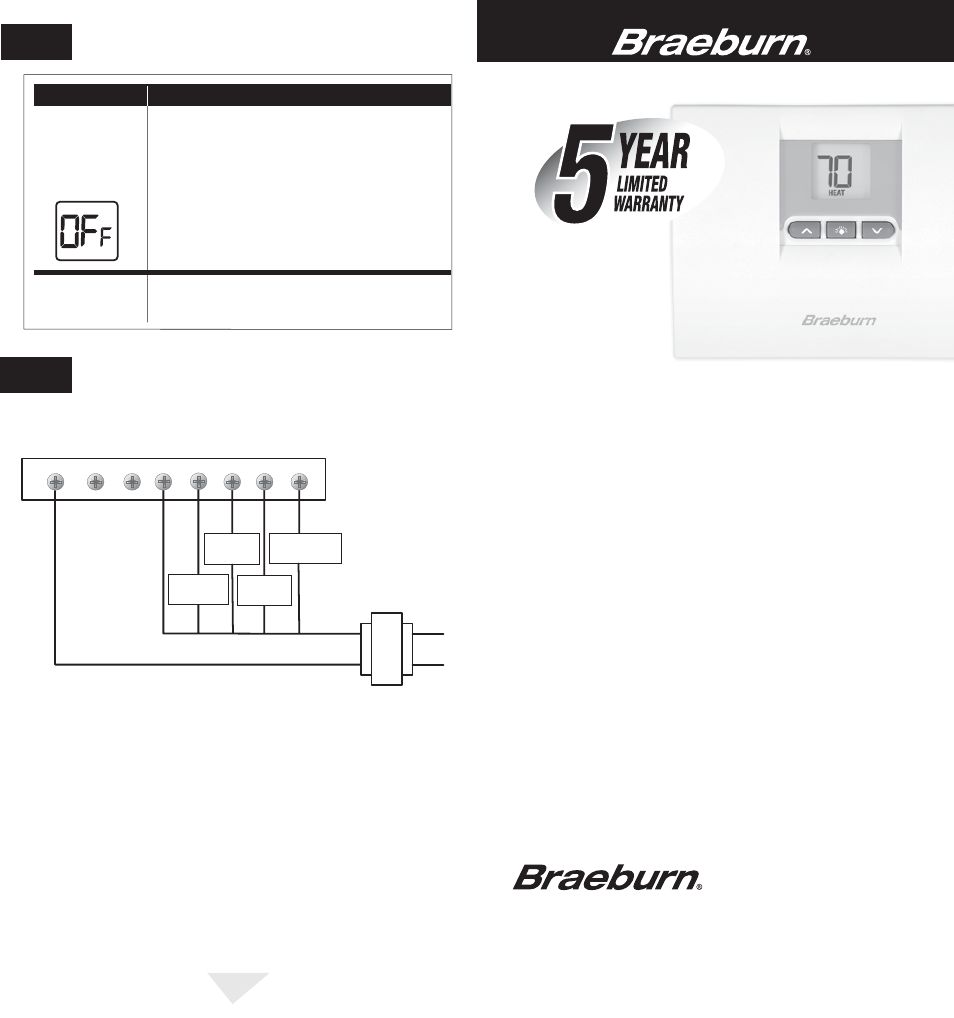

WIRING DIAGRAM
7
The room is too
warm or too cold.
See Review Set Temperature section of this manual to verify the
current setpoint and make any modifications that are necessary.
SYMPTOM POTENTIAL SOLUTION
TROUBLESHOOTING
6
cont.
OFF is shown in
thermostat display
and heating or
cooling system will
not start. This indicates that the system is turned off at the thermostat.
Move the system selector switch to the HEAT or COOL position.
After the compressor short cycle protection 5-minute period
expires the system should start within several seconds.
Transformer
Common
(Required)
R Y W1 W2 G O B C
Compressor
Contact
1st Stage
Heat Relay
Fan
Relay
Auxiliary Heat
Relay (Stage 2)
24 VAC
Neutral
120 VAC
Hot
Wiring Diagram for 2 Stage Heat, 1 Stage Cool
Store this
booklet for
future reference
