NOTE:
The installer can reset the thermostat and bypass the compressor protection
feature by pressing the RESET button. This will erase all user program settings and
should only be used during installation for testing purposes or to reset a thermostat to
regain normal operation. This will return all Thermostat settings to their default values.
Compressor Protection Feature
This thermostat includes an automatic compressor protection feature to avoid potential
damage to the cooling system from short cycling. This thermostat automatically provides a
5-minute delay after turning off the cooling system output to protect the compressor.
Low Temperature "Freeze" Protection
While the thermostat is in the HEAT mode of operation on heating applications, the
thermostat will mechanically initiate a call for heat if the room temperature drops to less
than 41˚F (5˚ C). The system selector switch must be in the ON position for this feature to be
active. This feature will allow the thermostat to initiate a call for heat to provide a minimum
amount of heat, even if the batteries are dead or missing. Call a Professional service
technician immediately to verify proper system operation. This feature is only active on
heating applications.
Review Set Temperature

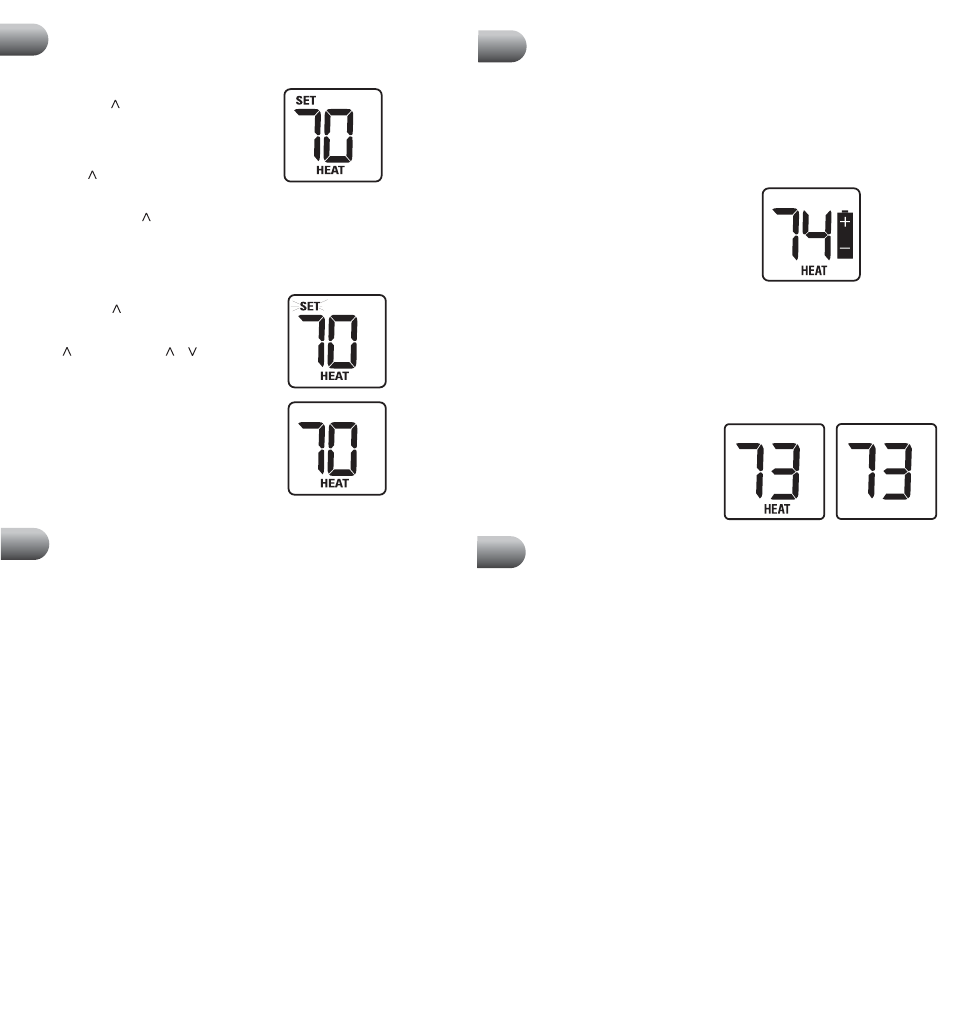

1. Press and hold button. The current set point
temperature will be displayed in place of the
current room temperature, and the indicator SET
will be displayed.
2. The display will return to normal operating mode
when the button is released. The SET indicator
will turn off indicating that the current temperature
shown in the display is the room temperature.
Continuing to hold the button for 3 seconds or longer will
allow the user to change the current set point temperature
(See Changing Set Temperature).
Changing Set Temperature
1. Press and hold button for 3 seconds.
The entire display will flash once and the
SET indicator will be flashing. Release
the button and press the or button
again as desired to adjust the set temperature.
2. The display will return to normal operating
mode after 5 seconds.
3. The SET indicator will turn off in the display
indicating that the current temperature shown
in the display is the room temperature.
Temperature Adjustment
5
Additional Operation Features
6
5
Battery Replacement
7
1. Open front cover and locate the battery compartment door.
2. Gently remove the two "AA" alkaline batteries located in the battery compartment.
3. Install two new "AA" alkaline batteries into battery compartment. Make sure to
match the positive (+) ends of the batteries with the positive (+) terminals
located in the battery compartment.
4. Close battery compartment. The low battery indicator should not appear
in the display.
Low Battery Detection
Additional Operation Features
6
cont.
Resetting Thermostat
The Reset feature allows the user to completely reset the thermostat to register new manual
switch settings and return to factory set software settings. To erase all entered settings, gently
press RESET button using a paper clip or a small pencil tip. This will return all Thermostat
settings to their default values and register all new manual switch settings for proper operation.
COOL
Status Indicators
HEAT: The word “HEAT” will appear in the
display when the heating system is running.
COOL: The word “COOL” will appear in the
display when the cooling system is running.
This thermostat requires two (2) properly installed "AA" alkaline batteries to provide power
for the thermostat to properly control the system operation. The system must have 24 Volt AC
power present for proper system operation and control.
This thermostat is equipped with a low battery detection feature that constantly monitors the
batteries during normal operating mode to
determine whether they have sufficient power
to provide proper operation.
When this feature determines that the battery
status is low, a low battery indicator will appear
in the display. It is recommended that the
batteries be replaced immediately to maintain
system operation and program settings.
