Installer Guide 2
2 Pairing Remote Sensor
See thermostat Installer Guide for additional information on pairing sensors.
1. Enter the wireless setup mode on the thermostat you wish to pair with the
remote sensor. Proceed until you see the word SENS in the display with a
flashing symbol.
2. Make sure batteries are properly installed in
the remote sensor and then press and hold
the CONNECT button for 3 seconds.
3. The remote sensor will enter pairing mode
for 60 seconds. During this time the blue
LED will flash once every 2 seconds.
4. The thermostat will display ODS indicating
that the wireless remote outdoor sensor
was successfully paired. The symbol will
stop flashing and the blue LED on the remote
sensor will turn on for 60 seconds.
5. You can repeat this process to pair additional wireless remote sensors or exit
the wireless setup mode on the thermostat.
NOTE: Sensors that have already been paired will appear in the thermostat display
first, with a solid symbol.
A maximum of 1 wireless remote outdoor sensors can be connected.
A maximum of 4 wireless remote sensors total can be connected.
+
+ –
–

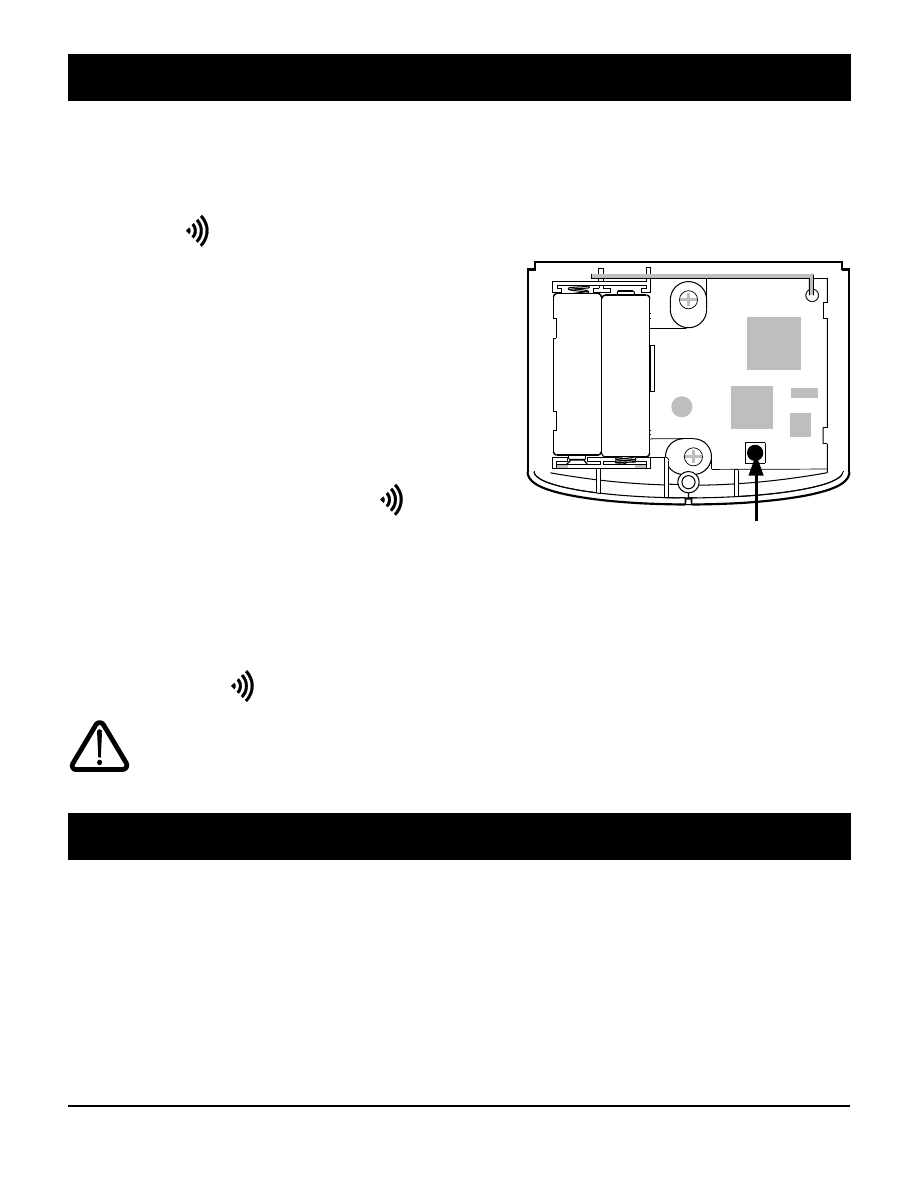

Connect
Button
3 Installation
The outdoor remote sensor should be mounted on an exterior wall, approximately
3 feet from any exhaust fans. For a more accurate temperature reading, mount the
sensor on a wall that does not receive direct sunlight and is above the expected
snow line.
NOTE: Test location by pairing your thermostat before mounting (see section 2).
Figure 1
