Installation

Instructions

Y75

Issue Date

August 22, 2008

© 2008 BASO Gas Products

1

Part No. BASO-INS-Y75, Rev. B

www.baso.com

Dimension “B”

Locating

Dimension

Dimension “A”

Electrode

Protrusion

Length

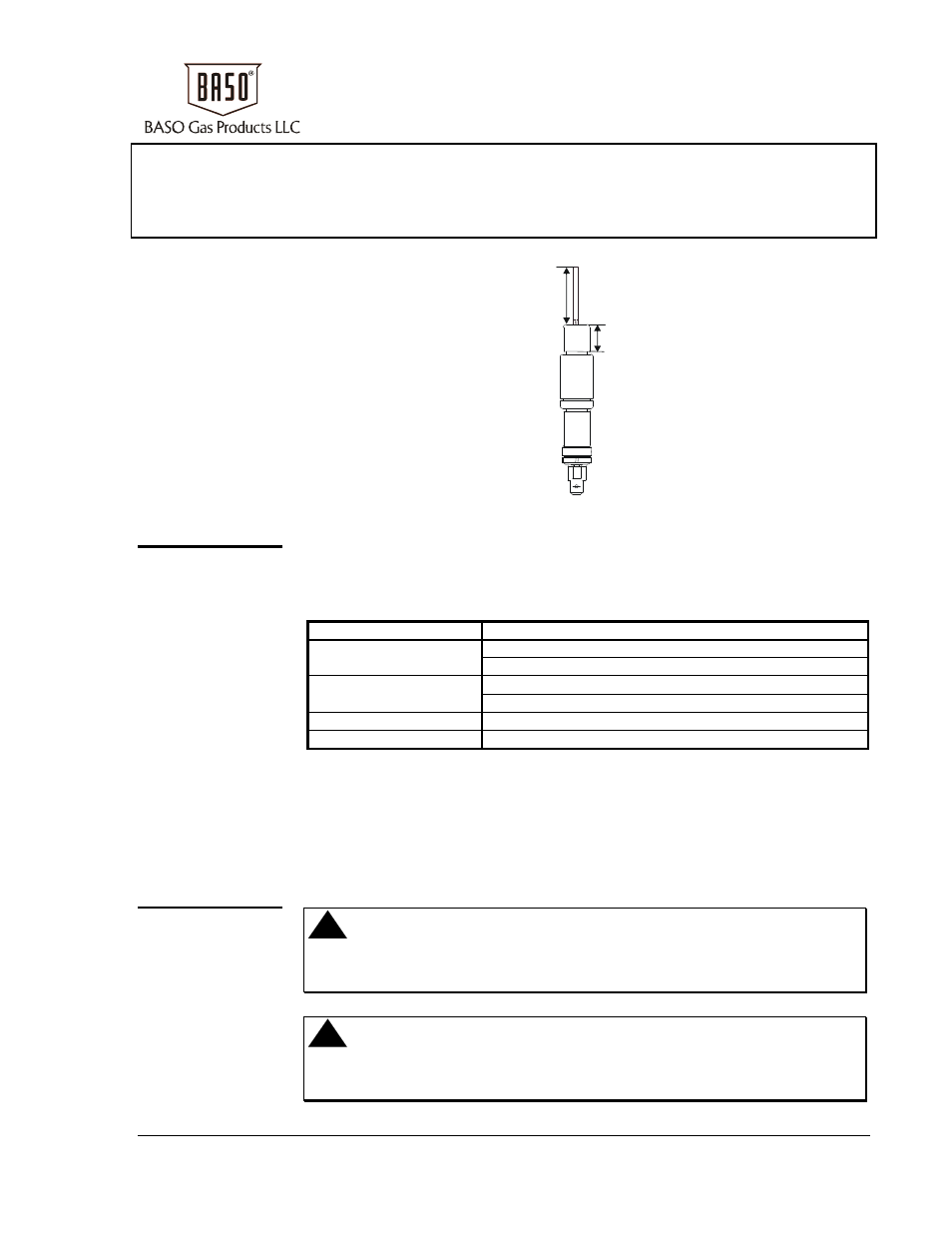

Figure 1: Y75 Sensing Probe

The Y75 sensing probe may be used to replace broken or damaged sensing
probes in electronic ignition control systems.

Table 1: Specifications

Product

Y75 Replacement Sensing Probes

Material

Rod:

Kanthal D or Hoskin 815

Ceramic: Steatite

Maximum

Rod:

1,800

°F (982°C)

Temperature

Ceramic:

1,000

°F (538°C)

Agency Listings

CSA Certificate Number 22951-165071

Specification Standards

ANSI Z21.20, CAN1-6.4

Performance specifications are nominal and conform to acceptable industry standards. All agency
certification of BASO products is performed under dry and controlled indoor environmental conditions.
Use of BASO products beyond these conditions is not recommended and may void the warranty.
Product must be protected if exposed to water (dripping, spraying, rain, etc.) or other harsh
environments. The original equipment manufacturer or end user is responsible for the correct
application of BASO products. Consult BASO Gas Products LLC for questionable applications. BASO
Gas Products LLC shall not be liable for damages or product malfunctions resulting from
misapplication or misuse of its products.
Refer to the Y75 Series Sensing Probes Product Bulletin (BASO-PB-Y75) for necessary information on
operating and performance specifications of this product.

!

CAUTION: Turn off the gas to the appliance at the upstream

manual shutoff valve before installing the Y75 sensing
probe.

!

WARNING: Shock Hazard. To prevent electrical shock or possible

damage to the equipment, disconnect the power
supply.

Series Y75 Sensing Probes

for Electronic Ignition Systems

Application

Installation
