DATA RECEPTION and confirming the
connection interface to USB.
Make sure the Weather is enabled in
Presentation setup in the MAP SETUP
menu. If Weather is not enabled in the
presentation setup, the unit may still receive
the XM signal, but it will not be displayed on
the map.

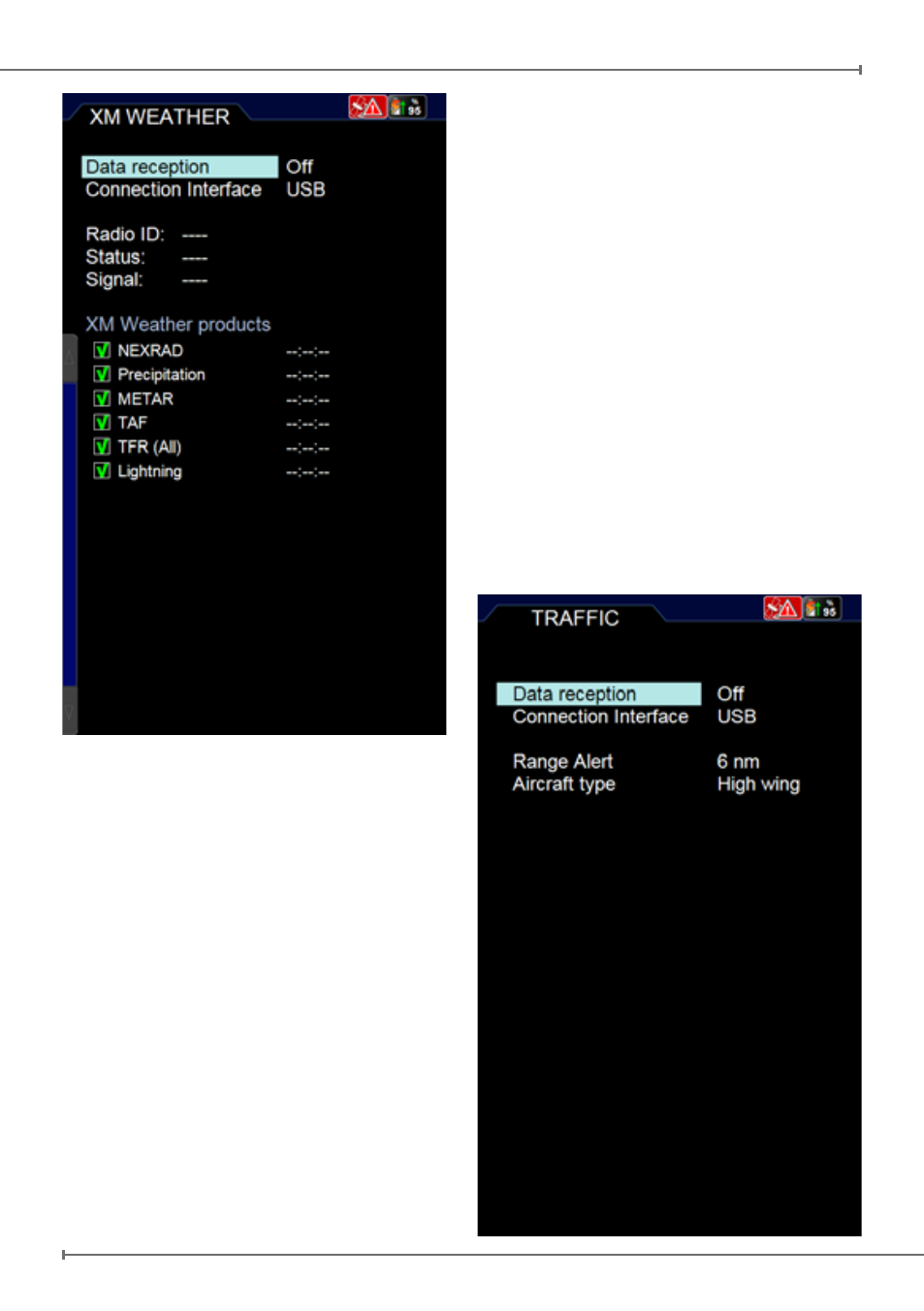

Traffic
EKP V is compatible with ZAON XRX traffic
receiver.
To enable the traffic feature, connect the
traffic receiver device to the EKP V through
USB or Serial Connection (COM A or COM
B) connection and activate the reception
of information in the TOOLS Menu by
selecting Traffic and turning ON the DATA
RECEPTION and confirming the connection
interface to USB, COM A or COM B.
When connected to the USB port the EKP
V USB-Serial converter cable needs to be
used.
For serial connection instructions through
the Cockpit Docking Station see the EKP V
Cockpit Docking Station Installation Guide
included in the EKP V Docking Station box
(also available at www.avmap.it) and the
serial connection specification of the ZAON
XRX traffic receiver (ZOAN XRX Manual).
The Range option allows you to select the
horizontal detection range. The available
option range are 6 NM radius, 3 NM radius
and 1,5 NM radius.
To increase accuracy, different airframe
