1.5 Front Panel
1. Video Output Port (Y, Pb, Pr): Connect to the attached
Video cable. (refer to 1.6.1 RCA Connector chapter)
2. LCD Module: 16*2 Character Display.
3. Function Keys: Depend on the different operation
configuration will show you different functions of the keys.
4. “ ” Return: Return to up configuration page.
5. “ ” Power On/Off: Press at least more than 3 seconds
to power on/ff the PG-Y1 .
6. Power Jack: Connect to the DC 12V 1.25A power
adapter. (refer to 1.6.2 Power Jack chapter)

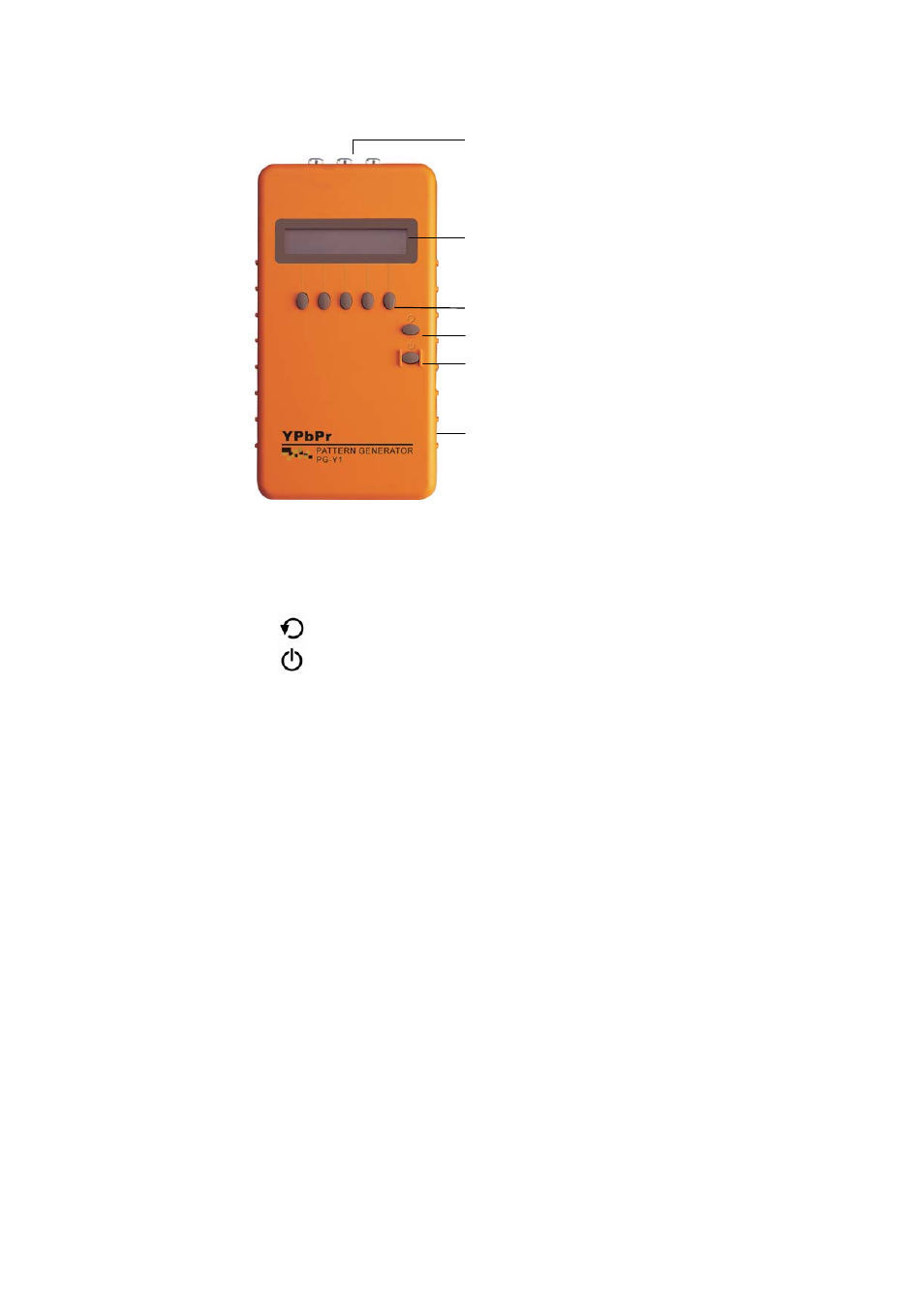

1. Video output port (Y,Pb,Pr)
2. LCD Module
3. Function Keys
4. Return
5. Power On/Off
6. Power Jack 2.0ψ
