5. Operation

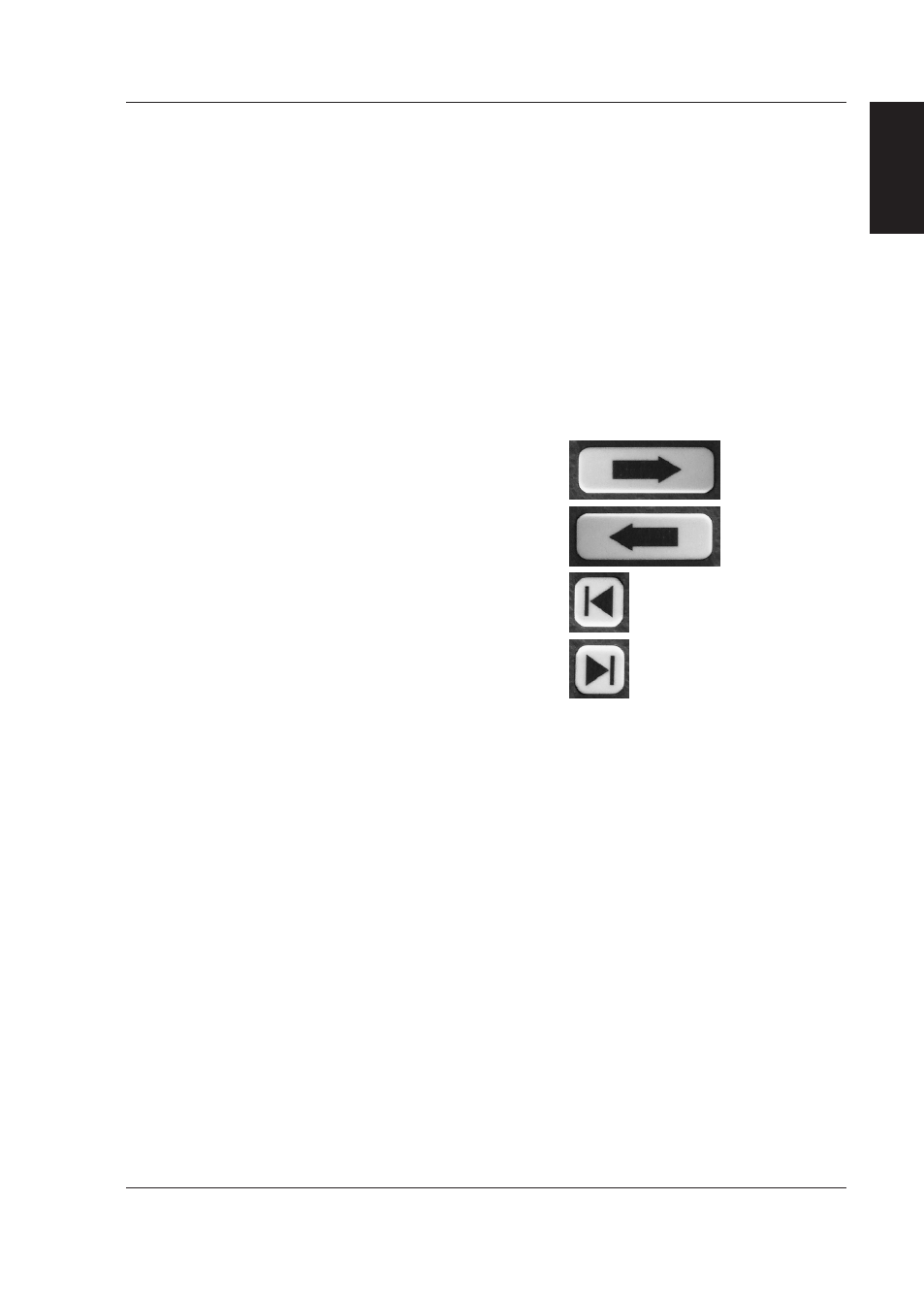

There are four buttons on the front panel, the top left
is the Forward button and the bottom left is the Re-
verse button. The top right is the Set Start Position
button and the bottom right is the Set End Position
button. The system is initially set from the factory for
maximum travel and an application speed of 1 inch/
sec (25 mm/sec).
Forward Button
Reverse Button
Set Start Position
Set End Position
To Set a New Start Position
Press the Forward button and release, when the
carriage is in the desired position, press the Forward
button again to stop the carriage. If you miss your
desired position, use the Reverse and Forward but-
tons until the carriage is in the correct place. Now
press and release the Set Start Position button. The
LED will blink and the position is stored in memory.
This position will remain stored even with the power
off.
