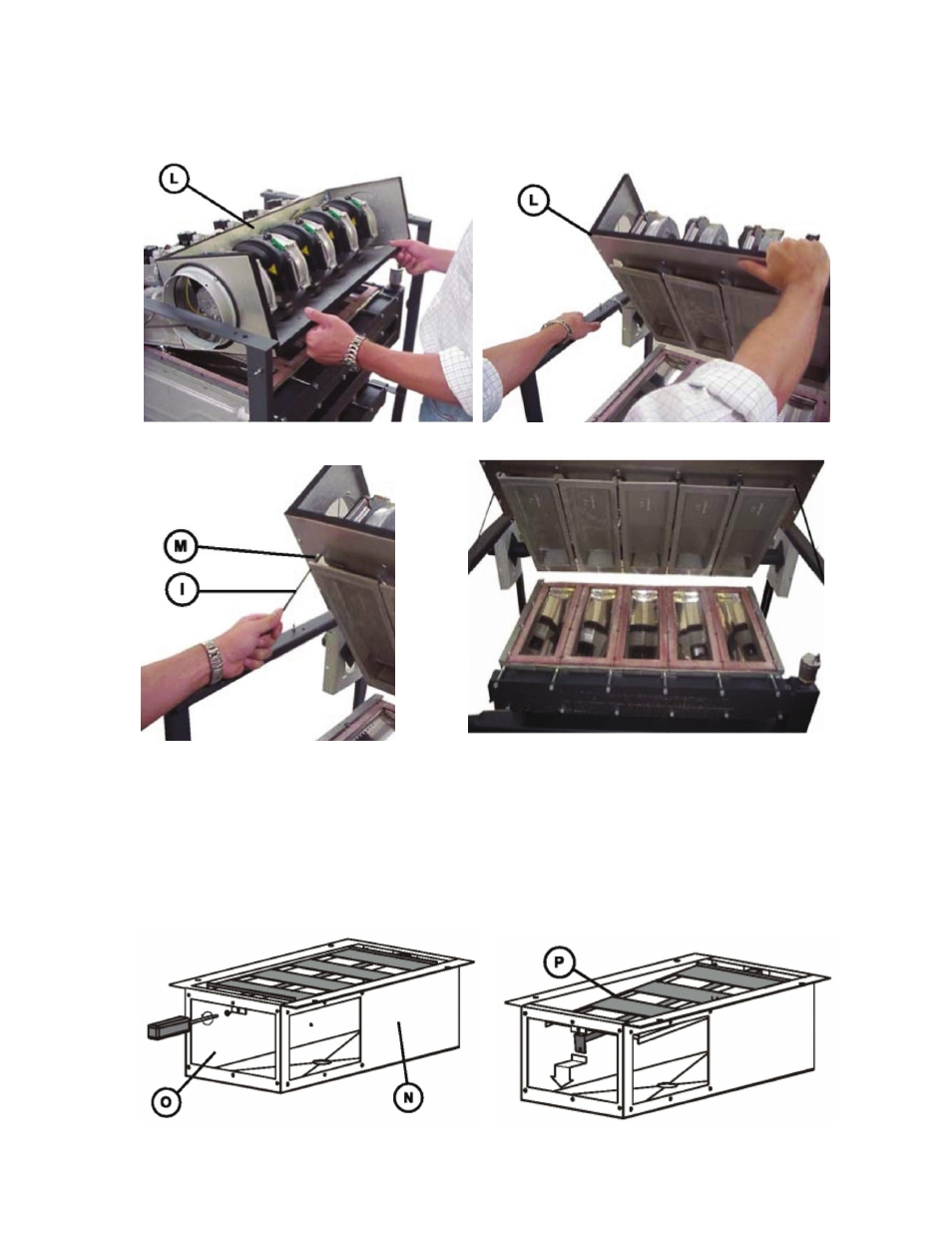

10. Lift up the fan group “L” by rotating it on the gas manifold axis and keep it up by inserting the
support rods “I”, attached to the frame, in the holes “M”.
11. Access the condensate tray “N” and remove the cleaning plate “O” from the opposite side of
the flue collector, or remove the complete tray terminal with the flue collector: This depends on
which side the baffle “P” is attached (R.H. side or L.H. side). Remove the screw securing the
baffle “P” and lower the baffle onto the tray bottom.
·
