APPENDIX J

J-1

VERTICAL OVERLAY, BENCHMARK

P/N 124718

FRONT FACE PLATE, BENCHMARK

P/N 124949

FISH PAPER

INSULATOR

P/N 124960

ENCLOSURE

P/N 124951

V.F.D. DISPLAY

MODULE

P/N 124527

DISPLAY BOARD

P/N 124365

PMC BOARD

P/N 124364

LOW WATER CUTOFF

BOARD P/N 124363

CONNECTOR BOARD

P/N 124366

IGNITION/STEPPER BOARD

P/N 124361

POWER SUPPLY BOARD

P/N 124362

GREEN LED

P/N 124948

ROCKER

SWITCH

P/N 124947

PUSH BUTTON

SWITCHES
P/N 124954

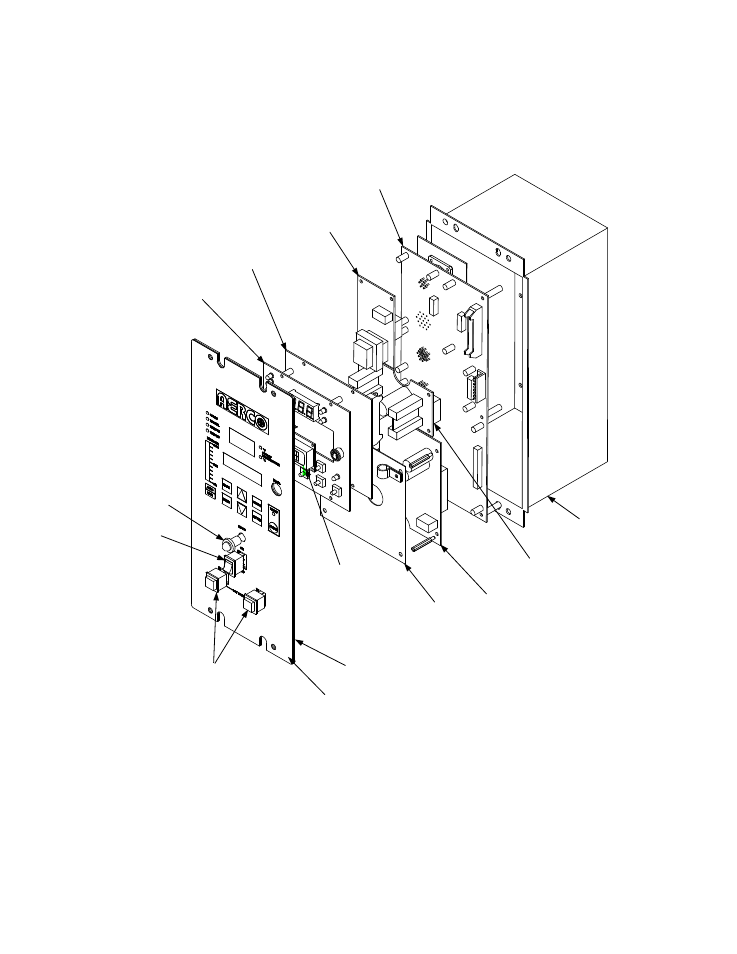

BENCHMARK CONTROL PANEL EXPLODED VIEW
