RETURN TO SERVICE
10. Insert and securely tighten drain plug.
11. Open supply valve on trap outlet side, slowly open the
supply valve to the trap inlet.
12. Check for leaks and normal operation.
Test traps by following the “Troubleshooting” procedure on
page 6.
Gasket
Thermostat
Lever
Retainer
Clip
Lever
Assembly
“E” Ring
Cover
Yoke
Pin
Seat
Gasket
Float
Ball
19 18
14
10
6
2
4
8
12
16
20
17
13
9
5
1
3
7
11
15
8
4
2
6
9 7
3
1
5
7
4
2
6 3
1
5
4 7
2
5
3
6
1
5
1
3
4
2
6
Series C Trap Cover 2" Standard Capacity
Pin
Seat
Bracket
“E” Ring
Seat
Yoke
Pins
Seat
Bracket
“E” Ring
Seat
Yoke
Series X Trap Seat and Yoke 2"
Series C Seat and Yoke 2 1 ⁄
2
" Units

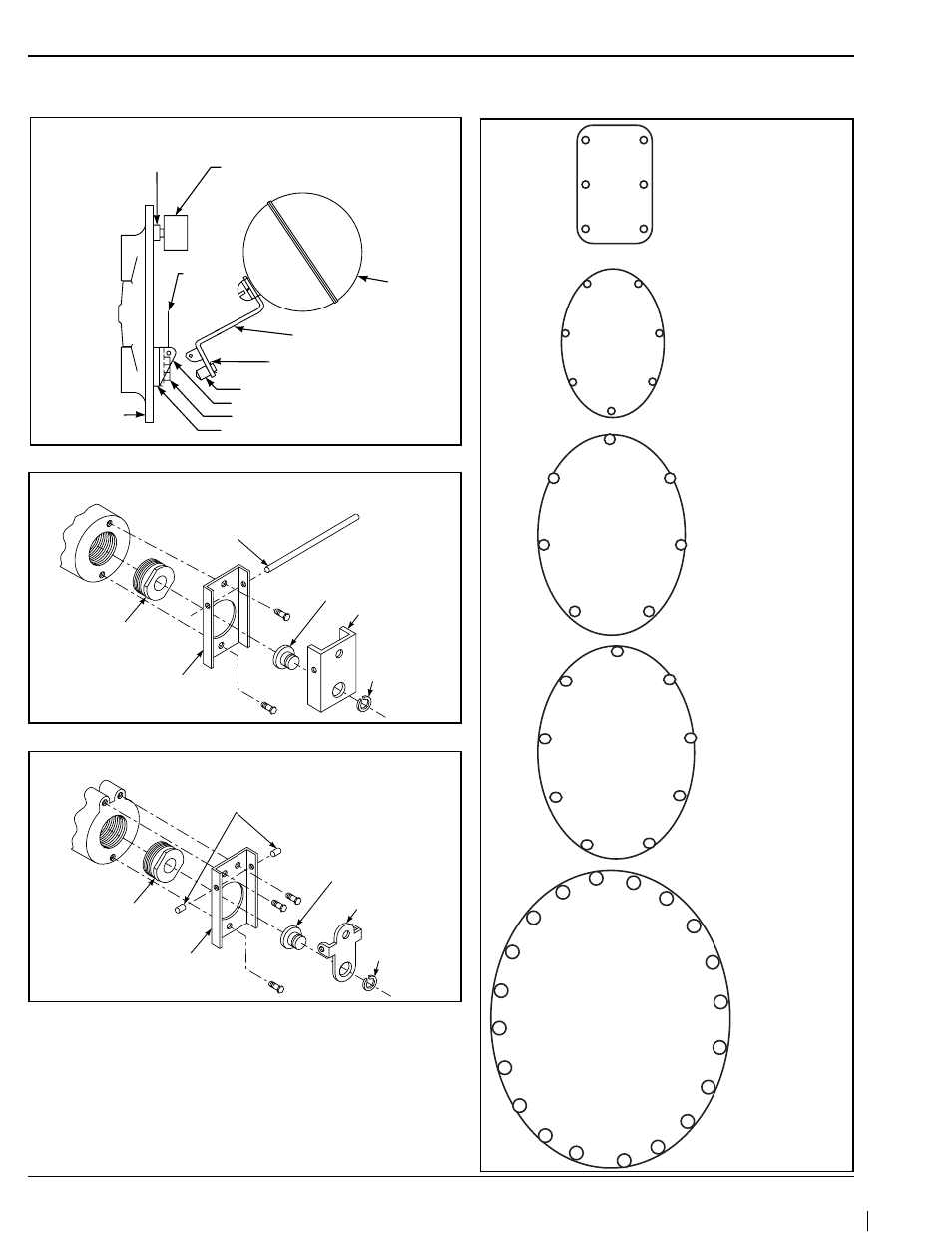

Internal Component Detail Illustration
Cover Bolt Pattern Layout
Series H 3 ⁄ 4 " to 2" Traps and
Series C 1 1 ⁄ 4 " and 1 1 ⁄ 2 " Traps
with six bolt pattern
Tighten Bolts to 28 +/- 3 ft-lbs.
(38 +/- 4 N-m) Torque
Series H 1 1 ⁄ 2 " and 2" Traps
with seven bolt pattern
Tighten Bolts to 28 +/- 3 ft-
lbs. (38 +/- 4 N-m) Torque
Series C 2" Traps
Tighten Bolts to 75 ft-lbs.
(102 N-m) Torque
Series X 2" Traps
Tighten Bolts to 150 ft-
lbs. (205 N-m) Torque
Series C 2 1 ⁄ 2 " Traps
Tighten Bolts to 75
ft-lbs. (102 N-m)
Torque
Tighten and torque bolts in numerical order, beginning with #1.
