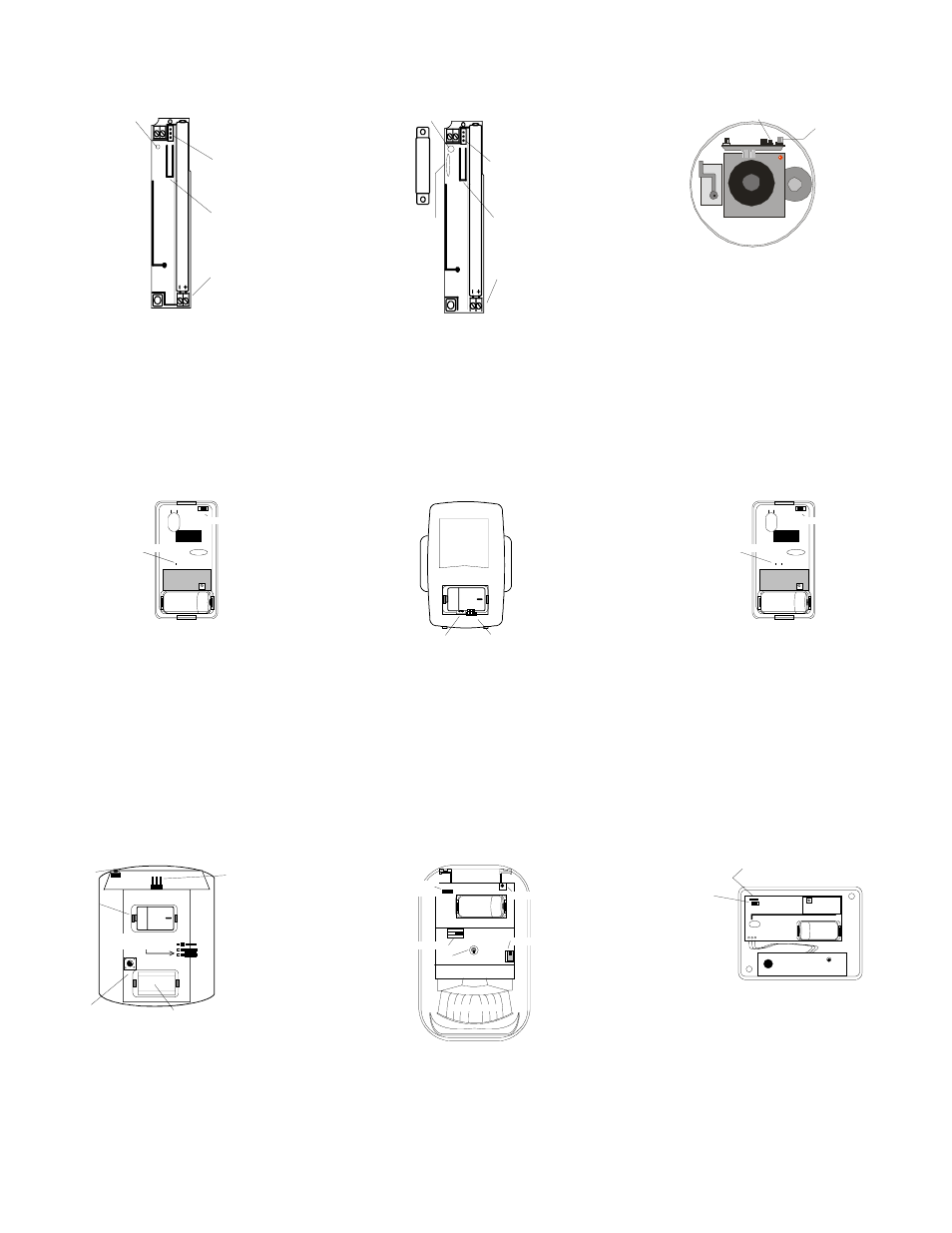

Appendix D: Frequency Agile
• • • • Series Transmitters
FA200
Universal Transmitter
Ba
tt e r y
Programming
header
Battery terminals
Tamper switch
Reset button
Program contacts: N/O or N/C, as needed
EOL resistor: as needed
Typical battery life: 3 years
Battery type: 4.5V alkaline battery pack
Switch trigger: 1.5 seconds, minimum
Dimensions: 1.25" x 6.00" x 0.750"
FA200W
Universal Widegap Transmitter
B
a
tte
r y
Programming
header
Battery terminals
Widegap
reed switch Tamper switch
Reset button
Program contacts: N/O or N/C, as needed
EOL resistor: as needed
Internal contact: as needed
Typical battery life: 3 years
Battery type: 4.5V alkaline battery pack
Switch trigger: 1.5 seconds, minimum
Dimensions: 1.25" x 6.00" x 0.750"
FA202
Smoke Detector
Reset Button Programming
Header
Program contacts: N/C
Typical battery life: 1 year
Batteries (2): 3V lithium
Dimensions: 6.0" Diameter
Note: Remove jumper to program,
replace jumper after programming.
FA203
Pendant Transmitter
3.0V +
Programming header
Reset button
Check-in interval: 60 seconds* (suggested)
Program contacts: N/O
Typical battery life: 3-5 years
Battery (or equivalent): 3.0V lithium Sanyo CR2
Dimensions: 3.10" x 1.62" x 0.750"
* To extend battery life, actual check-in
is 2 to 3 times the programmed
value.
FA204
Pendant Transmitter
Reset button Programming
header
+ 3.0V
Note: Remove battery cover to access
Reset Button and Programming Head
Check-in interval: 60 seconds* (suggested)
Program contacts: N/O
Typical battery life: 2 years
Battery 3.0V Sanyo LiMn CR14250
Dimensions: 2.8" x 1.7" x 0.83"
FA205
Beltclip Transmitter
3.0V +
Programming header
Reset button
Check-in interval: 60 seconds* (suggested)
Program contacts: N/O
Typical battery life: 3-5 years
Battery (or equivalent): 3.0V lithium Sanyo CR2
Dimensions: 3.10" x 1.62" x 0.750"
* To extend battery life, actual check-in
is 2 to 3 times the programmed
value.
FA206
PIR Motion Detector
+ 3.6V
Programming header
Optional battery
Reset button
Battery
1-zone or 2-zone
detection header
Tamper switch
Program contacts: N/C
Typical battery life: 2 years (with 2 batteries)
Battery: 3.6V lithium Tadiran TL2150
Sleep after trip: 90 seconds
Dimensions: 3.75" x 2.88" x 2.40"
FA206DS
PIR Motion Detector
3.0V +
Sensitivity selector
Walk test LED
Mirror Optics
Programming
header
Tamper switch
Reset button
Program contacts: N/C
Typical battery life: 2 years
Battery: 3.0V lithium DL123A
Sleep after trip: 180 seconds
Dimensions: 3.75" x 5.75" x 2.50"
FA207
Glassbreak Detector
3.0V +
Reset button
Programming header
(with tamper shunt)
Program contacts: N/O
Typical battery life: 2 years
Battery: 3.0V lithium DL123A
Dimensions: 4.25" x 3.12" x 1.63"
Note: Remove jumper to program.
replace jumper after programming.
Note: Batteries are always supervised. Lithium batteries are capacity-tested at 18-hour intervals.
The transmitter will deactivate 2 weeks after low battery is detected.
