EE4000 EchoStream
®
Serial Receiver
Installation Instructions - 05633A
1 Overview
The EE4000 serial receiver is a gateway that uses reliable frequency-
hopping, spread-spectrum technology to decode radio frequency (RF)
transmissions from end devices and high-power repeaters, and then output
the decoded data to the application controller in a common serial data
format. The EE4000 is used for all one way Inovonics applications.
1.1 Inovonics Wireless Contact Information
If you have any problems with this procedure, contact Inovonics Wireless
technical services:
• E-mail: [email protected]
• Phone: (800) 782-2709
2 Enable EchoStream Select
To meet ETSI requirements, Inovonics has developed a new line of EE
868MHz-only products. These new 868MHz-only products are compatible
with older systems that include EchoStream Select (ES) products. If you
are using any ES products in your current system, you will need to enable
EchoStream Select compatibility on this new 868MHz-only product.
To enable/disable EchoStream Select compatibility:
1. To enable compatibility with ES products, place a selection jumper on
the ES selection pins.
Note: Selection jumpers are included in the EE4000 hardware packet.
2. If no ES products are used in your system, remove the selection jumper
from the ES selection pins.
3. Cycle power.
3 Connect the Serial Cable
Caution: Long cable runs should not be adjacent to high current power
feeds. Keep cable lengths as short as possible to minimize noise pickup.
Measure voltage at the serial receiver on long cable runs.
1. Connect a serial cable to either the serial data port (Fig. 1C) or the
serial data terminal (Fig. 1D). Cabling should meet the following
specifications:
Cable requirements 4-conductor 20AWG (or larger) stranded-tinned
copper with PVC insulation rated to 300 volts at 26°C (80°F). (Belden
#8205, for example.)
Maximum cable length 15.25 meters (50 feet).
2. Route the cabling through either the bottom cabling knockout (Fig. 1E)
or the side cabling knockout (Fig. 1F).
4 Mount the Serial Receiver
Caution: Mount the serial receiver in a location removed from metal. Metal
objects (duct work, wire mesh screens, boxes) will reduce RF range.
1. Use the provided anchors and screws to mount the serial receiver in a
location accessible for future maintenance.
2. Close the serial receiver housing.
5 Serial Receiver Operation
Caution: The EchoStream system should be tested regularly to ensure
operation. To test, place the system in test mode, activate an end device,
and ensure an appropriate response.
The following LEDs are used to monitor serial receiver operation.
Transmit LED Lit when the serial receiver is transmitting data to the
application controller (Fig. 1G).
Receive LED Lit when the serial receiver is receiving data from the
application controller (Fig. 1H).
Decode LED Lit when the serial receiver is decoding an RF transmission
from another Inovonics Wireless device (Fig. 1I).
6 Specifications
Housing dimensions 6.38" x 3.60" x 1.10"(162.0 mm x 91.4 mm x 27.9
mm)
Weight 133 g (4.7 oz)
Power requirement 10-14 VDC at 100mA
Radio Inovonics Wireless EchoStream
Operating frequency 868 MHz)
Operating environment 0-60°C, (32-140°F) up to 90% relative humidity
(non-condensing)

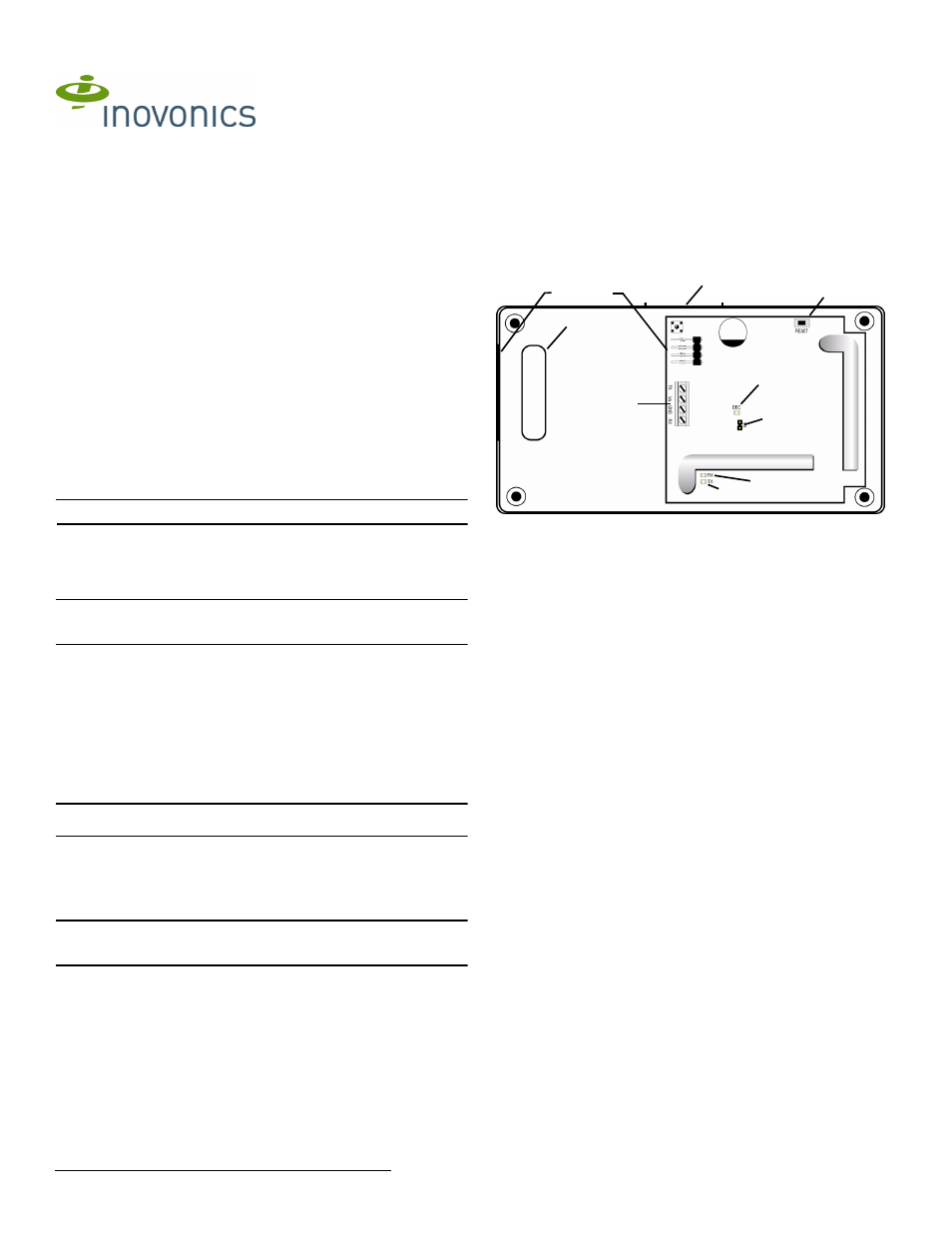

Figure 1 EE4000 serial receiver components
7 Warranty and Disclaimer
Inovonics Wireless Corporation ("Inovonics") warrants its products
("Product" or "Products") to conform to its own specifications and to be free
of defects in materials and workmanship under normal use for a period of
36 months from the date of manufacture. Within the warranty period,
Inovonics will repair or replace, at its option, all or any part of the warranted
Product. Inovonics will not be responsible for dismantling and/or
reinstallation charges. To exercise the warranty, the User ("User", "Installer"
or "Consumer") must work directly through their authorized distributor who
will be given a Return Material Authorization ("RMA") Number by Inovonics.
Details of shipment will be arranged directly through the authorized
distributor.
This warranty is void in cases of improper installation, misuse, failure to
follow installation and operating instructions, alteration, accident or
tampering, and repair by anyone other than Inovonics.
This warranty is exclusive and expressly in lieu of all other warranties,
obligations or liabilities, whether written, oral, express, or implied. There is
no warranty by Inovonics that Inovonics product will be merchantable or fit
for any particular purpose, nor is there any other warranty, expressed or
implied, except as such is expressly set forth herein. In no event shall
Inovonics be liable for an incidental, consequential, indirect, special, or
exemplary damages, including but not limited to loss of profit, revenue or
contract, loss of use, cost of down time, or interruption of business, nor any
claim made by distributor's customers or any other person or entity.
This warranty will not be modified or extended. Inovonics does not
authorize any person to act on its behalf to modify or extend this warranty.
This warranty will apply only to Inovonics Products. Inovonics will not be
liable for any direct, incidental or consequential damage or loss
whatsoever, caused by the malfunction of Product due to products,
accessories, or attachments of other manufacturers, including batteries,
used in conjunction with Inovonics Products.
A Housing release tab
B EchoStream Select compatibility
selection pins
C Serial data port
D Serial data terminal
E Bottom cabling knockout
F Side cabling knockout
G Transmit LED
H Receive LED
I Decode LED
J Reset button
