Step 5.
To adjust the level of the top plate use
shim stock between the top plate and the
support bracket. (See Fig. 21)

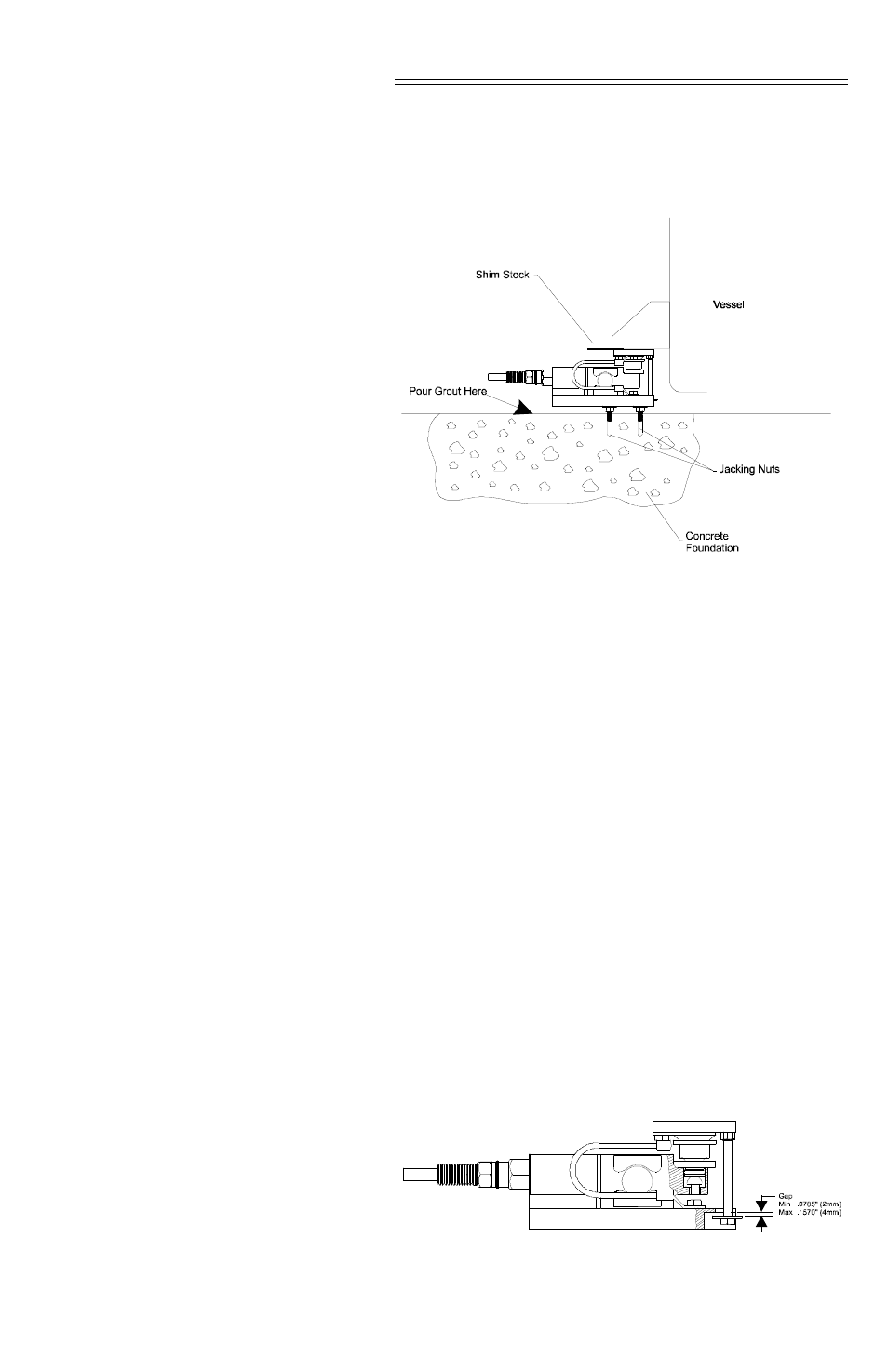

FIG. 21: LEVELING WITH SHIM STOCK
Step 6.
If the top plate is tack welded to the sup-
port bracket and you can lift the vessel off
the load cell pins, finish welding the top
plate to the support bracket and lower the
vessel back onto the sliding loading pins.
If you cannot lift the vessel, be sure to
shield the entire load cell and cable from
any slag that might drop.
WARNING
Under no circumstances must welding current be
allowed to pass through the load sensor. To do so
will destroy the load sensor and could possibly
cause personal injury and/or property damage.
Step 7.
Pour grout up to the bottom surface of the
base plate and let dry.
Adjusting the Anti-Lift
Off Device
FIG. 22: ADJUSTING ANTI-LIFT OFF DEVICE
